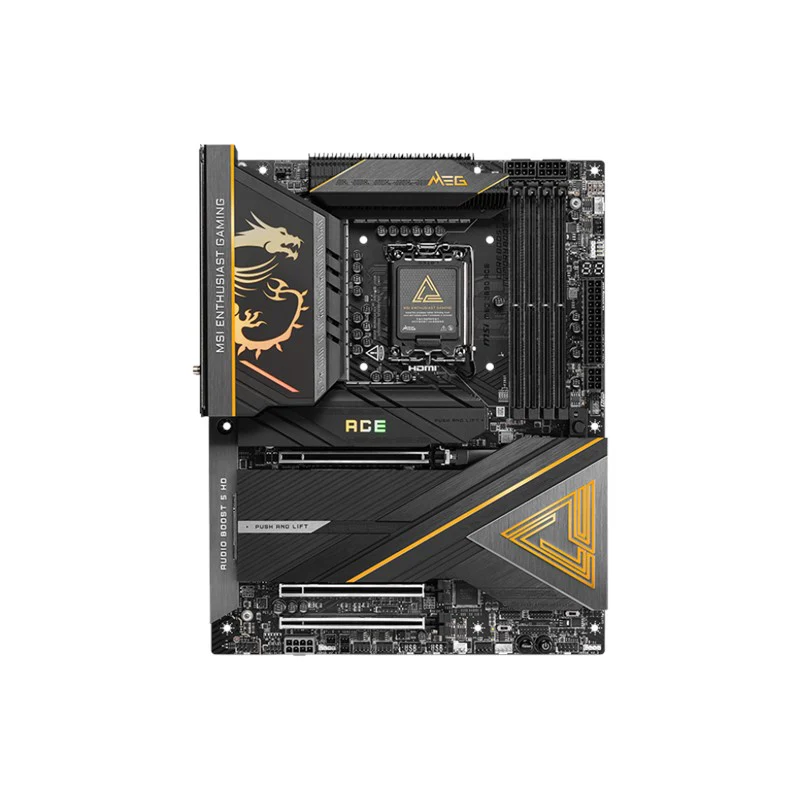

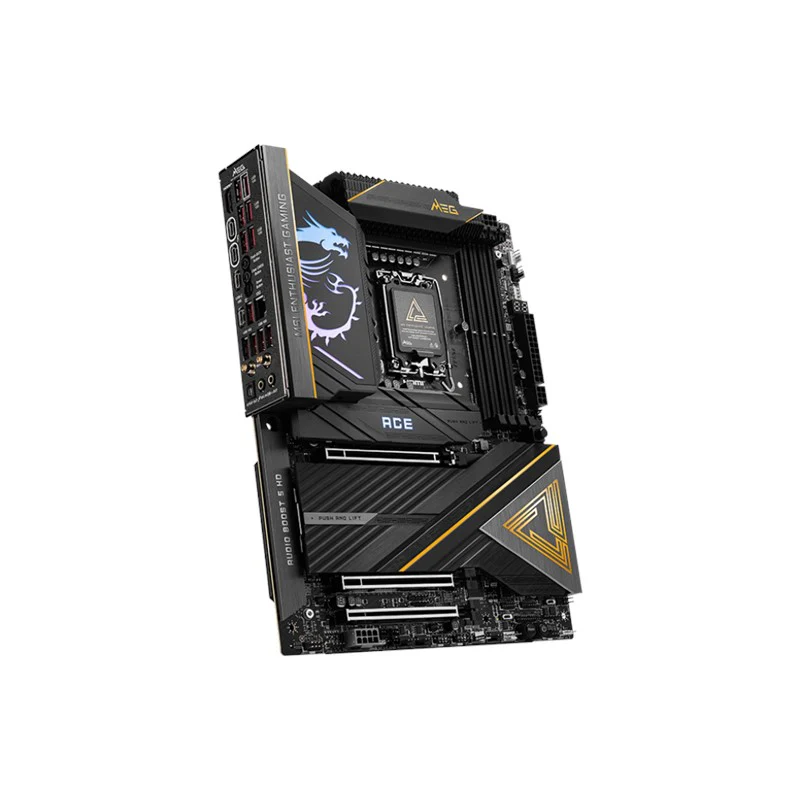

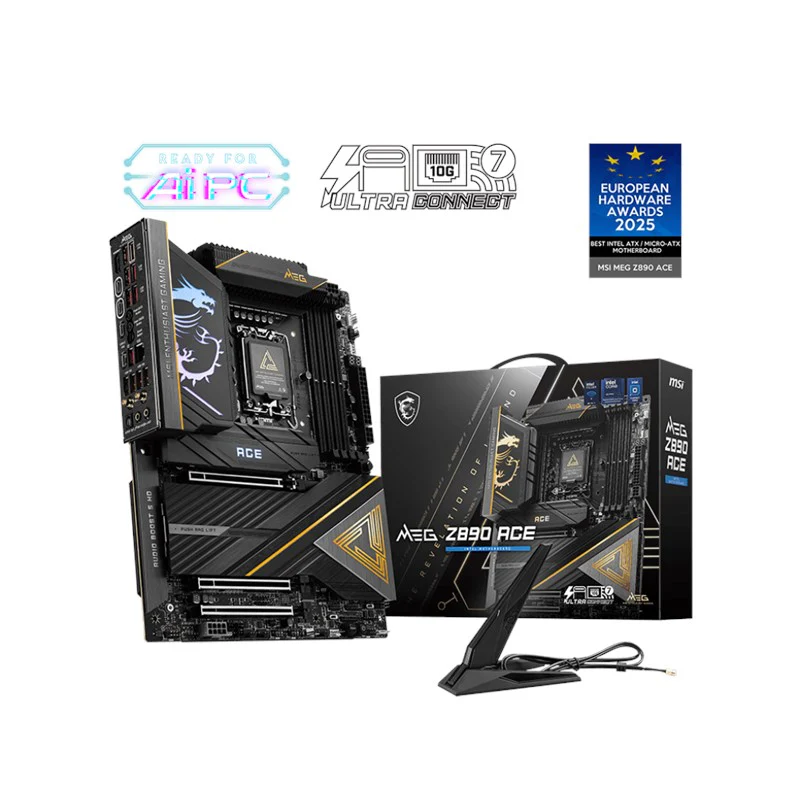

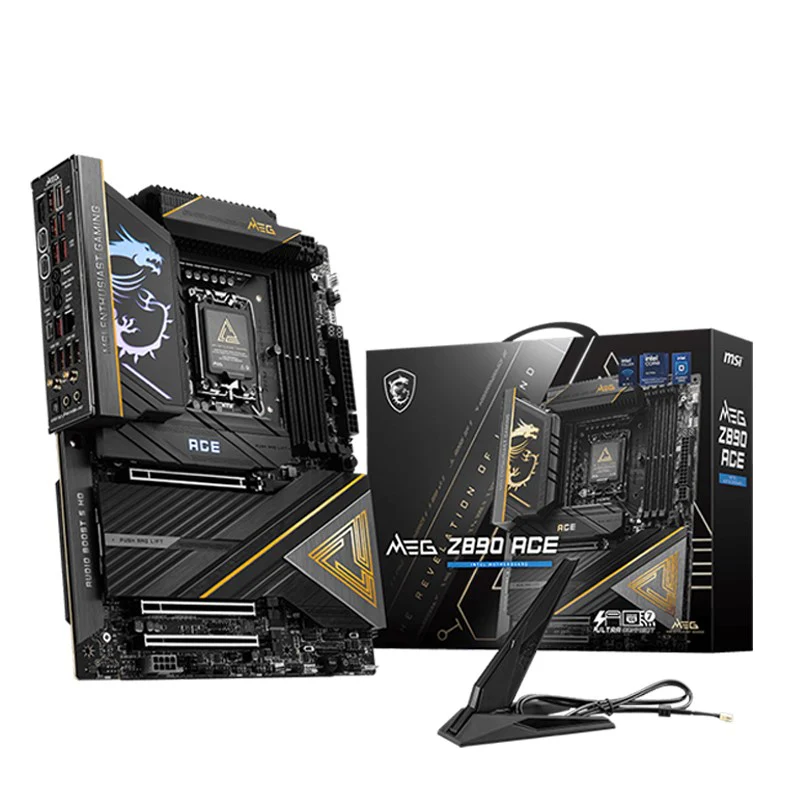

MSI MEG Z890 ACE Wi-Fi DDR5 ATX Gaming Motherboard - Black

MSI MEG Z890 ACE Wi-Fi DDR5 ATX Gaming Motherboard

AI

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

24+2+1+1 DRPS POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 24+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 ACE is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

What are the benefits of MSI MEG Z890 ACE Gaming Motherboard ?

• AI-optimized performance with advanced hardware support for gaming and AI workloads

• Smarter system control through AI features integrated into MSI Center and BIOS

• Flagship power delivery with a 24+2+1+1 digital power phase design for sustained high performance

• Ready for high-end processors using dual power connectors and 110A Smart Power Stage

• Optimized PCB design for higher bandwidth and faster data transfer speeds

• Improved reliability through stable and efficient circuit transmission

• High-bandwidth, low-latency networking for fast and responsive data transfer

Chipset

INTEL Z890

CPU

Supports Intel Core Ultra Processors (Series 2)

LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

1DPC 1R Max speed up to 9200+ MT/s

1DPC 2R Max speed up to 7200+ MT/s

2DPC 1R Max speed up to 6400+ MT/s

2DPC 2R Max speed up to 5600+ MT/s

Supports Intel POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

Onboard Graphics

1x HDMI

Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60 Hz

2x Type-C DisplayPort

Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Slot

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4

PCI_E2 support manual BIOS adjustment to X4+X4

Audio

Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA

7.1-Channel USB High-Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Thunderbolt

2x Thunderbolt4 ports (Rear)

Support up to 40Gbps transfer rate with Thunderbolt devices

Support up to 20Gbps transfer rate with USB4 devices

Support up to 10Gbps transfer rate with USB 3.2 devices

Support up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Support up to 8K display

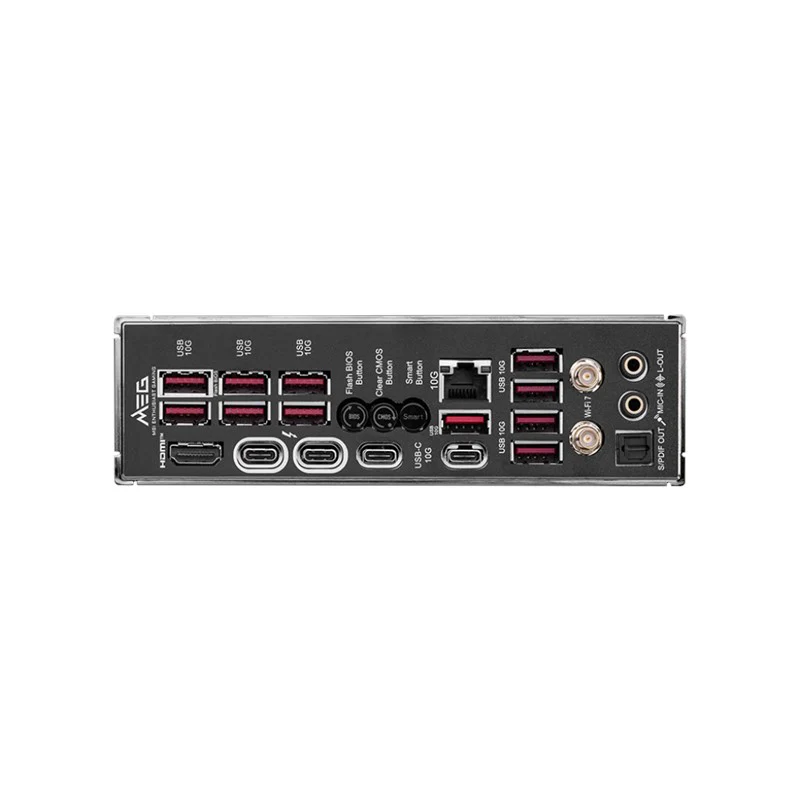

USB

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Front)

11x USB 10Gbps Type A (Rear)

2x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

LAN

1x Marvell AQC113CS 10Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

2x Combo Fan (Pump_Sys Fan)

5x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Water Flow connector

1x Slow Mode Booting Jumper(JSLOW)

1x Front Audio (JAUD)

2x Thermal Sensor connectors(T_SEN)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

V-check point

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

LED FEATURE

1x EZ Digi-Debug LED

4x EZ Debug LED

1x EZ Memory Detection LED

1x EZ LED Control switch

OPERATING SYSTEM

Support for Windows 11 64-bit

PCB Info

ATX

243.84mmx304.8mm
