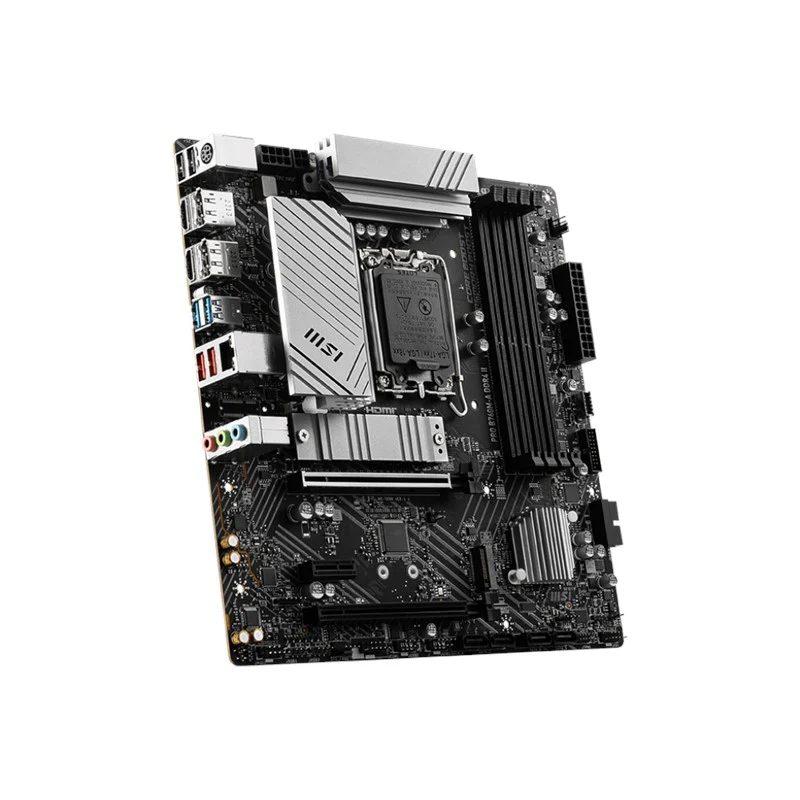

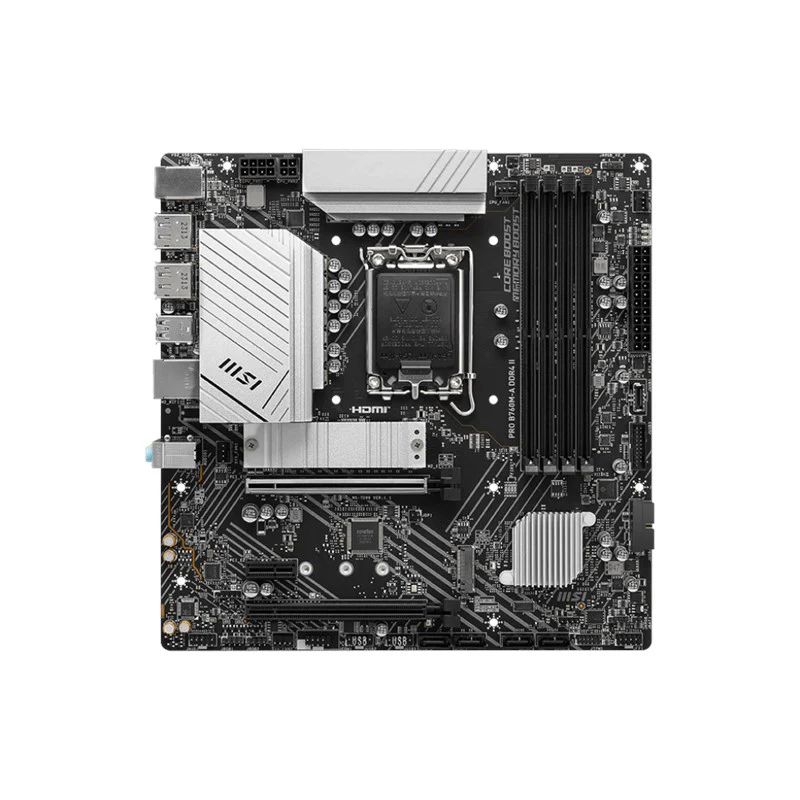

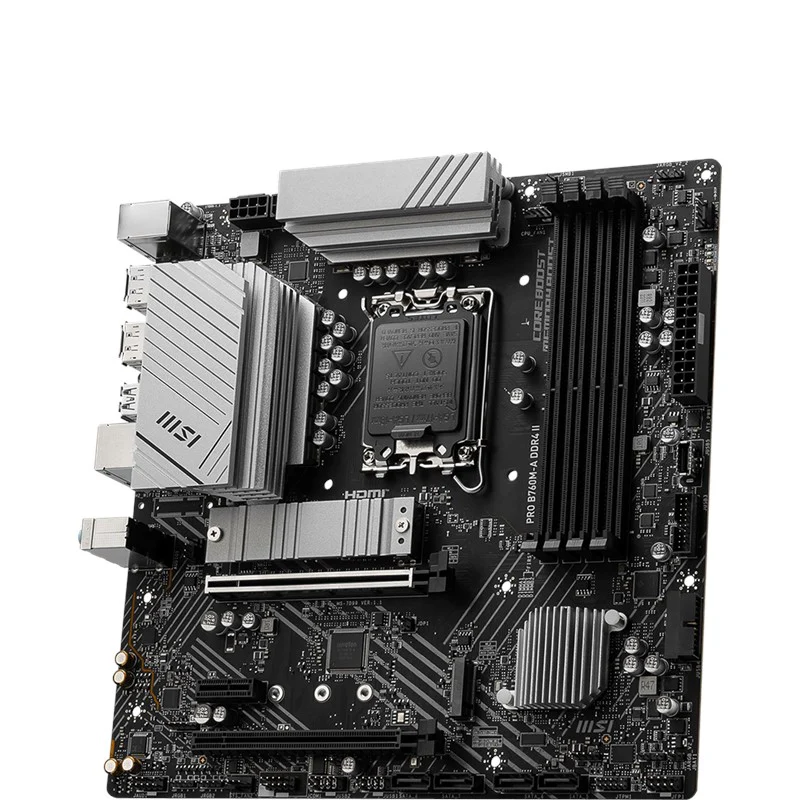

MSI PRO B760M-A DDR4 II M-ATX Gaming Motherboard

MSI PRO B760M-A DDR4 II M-ATX Gaming Motherboard

Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

High Quality PCB: 6-layer PCB made by 2 oz thickened Copper

Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2

MEMORY

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:

1DPC 1R Max speed up to 5333+ MHz

1DPC 2R Max speed up to 4800+ MHz

2DPC 1R Max speed up to 4400+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

SLOT

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
