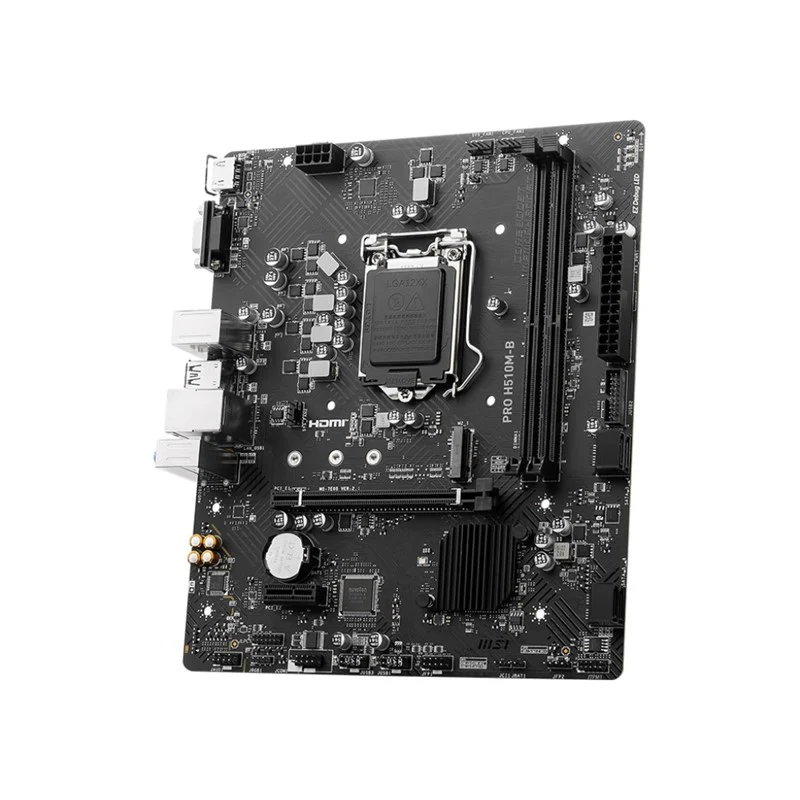

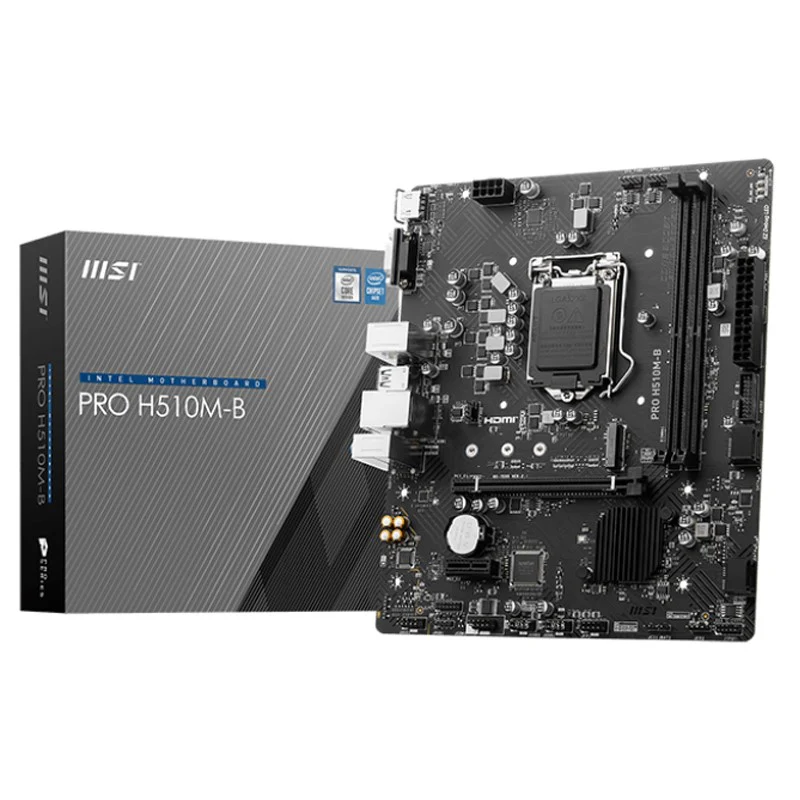

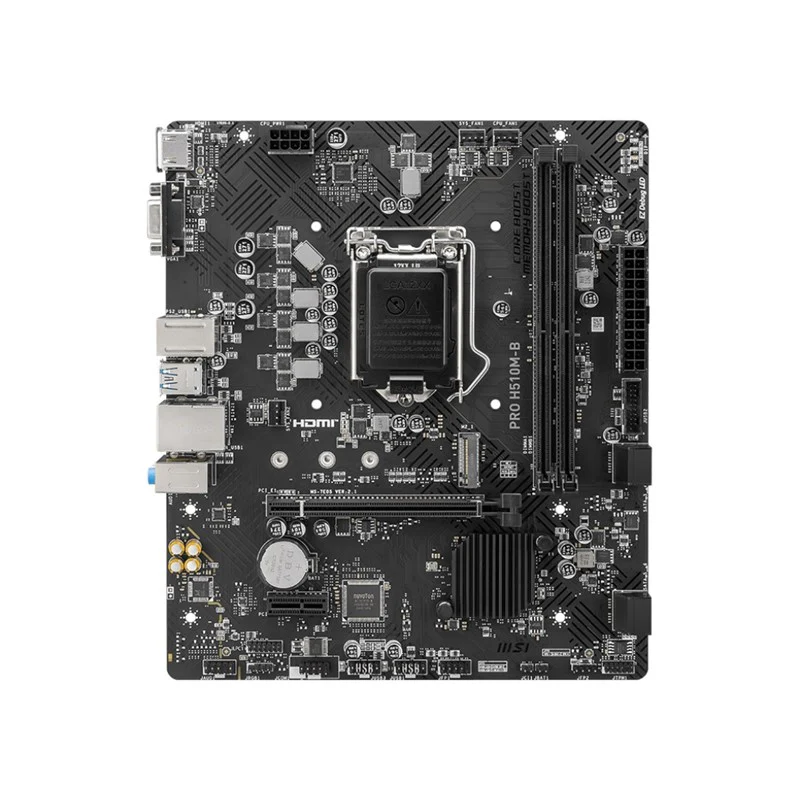

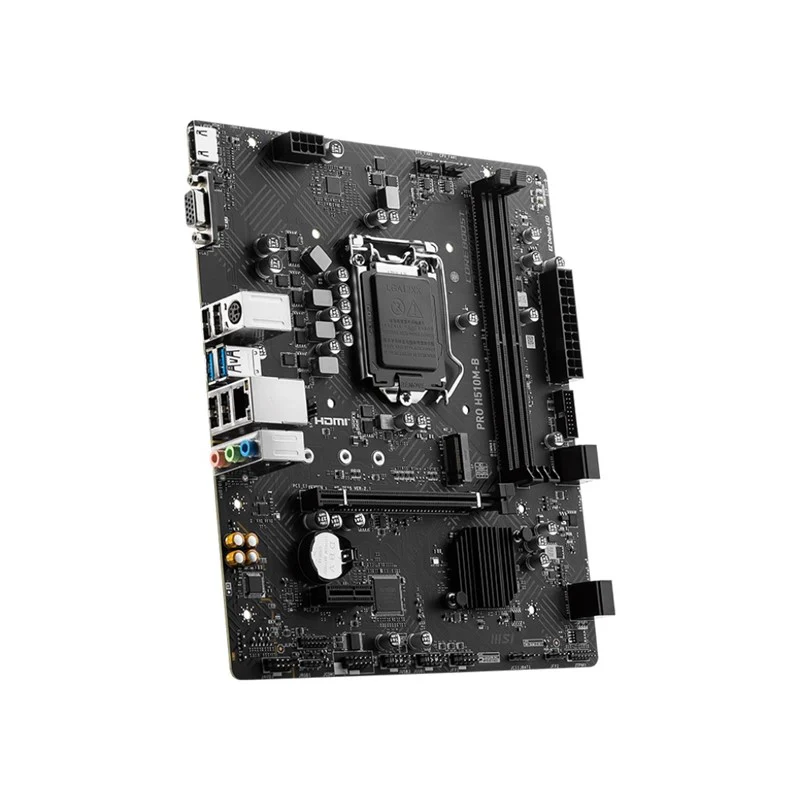

MSI PRO H510M-B DDR4 mATX Gaming Motherboard
MSI PRO H510M-B DDR4 mATX Gaming Motherboard
Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933MHz (MAX)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Specifications:
Chipset |
INTEL H470 |
CPU Support |
Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
Memory |
2x DDR4, Maximum Memory Capacity 64GB |
|
|
Memory Support 2933/ 2666/ 2400/ 2133 MHz |
|
|
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU |
|
|
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU |
|
|
Supports Dual-Channel mode |
|
|
Supports non-ECC, un-buffered memory |
|
|
Supports Intel® Extreme Memory Profile (XMP) |
Onboard Graphics |
1x HDMI™ |
|
|
Support HDMI™ 1.4, maximum resolution of 4K 30Hz* |
|
|
1x VGA |
|
|
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
|
|
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Expansion Slot |
1x PCI-E x16 slot |
|
|
1x PCI-E x1 slot |
|
|
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) |
|
|
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Storage |
1x M.2 |
|
|
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
|
4x SATA 6G |
USB |
4x USB 2.0 (Rear) |
|
|
4x USB 2.0 (Front) |
|
|
2x USB 3.2 Gen1 Type A (Rear) |
|
|
2x USB 3.2 Gen1 Type A (Front) |
LAN |
Realtek® 8111H Gigabit LAN |
Audio |
Realtek® ALC897 Codec |
|
|
7.1-Channel High Definition Audio |
Internal I/O |
1x Power Connector(ATX_PWR) |
|
|
1x Power Connector(CPU_PWR) |
|
|
1x CPU Fan |
|
|
2x System Fan |
|
|
2x Front Panel (JFP) |
|
|
1x Chassis Intrusion (JCI) |
|
|
1x Front Audio (JAUD) |
|
|
1x Com Port (JCOM) |
|
|
1x RGB LED connector(JRGB) |
|
|
1x TPM pin header(Support TPM 2.0) |
|
|
4x USB 2.0 ports |
|
|
2x USB 3.2 Gen1 Type A ports |
LED Feature |
4x EZ Debug LED |

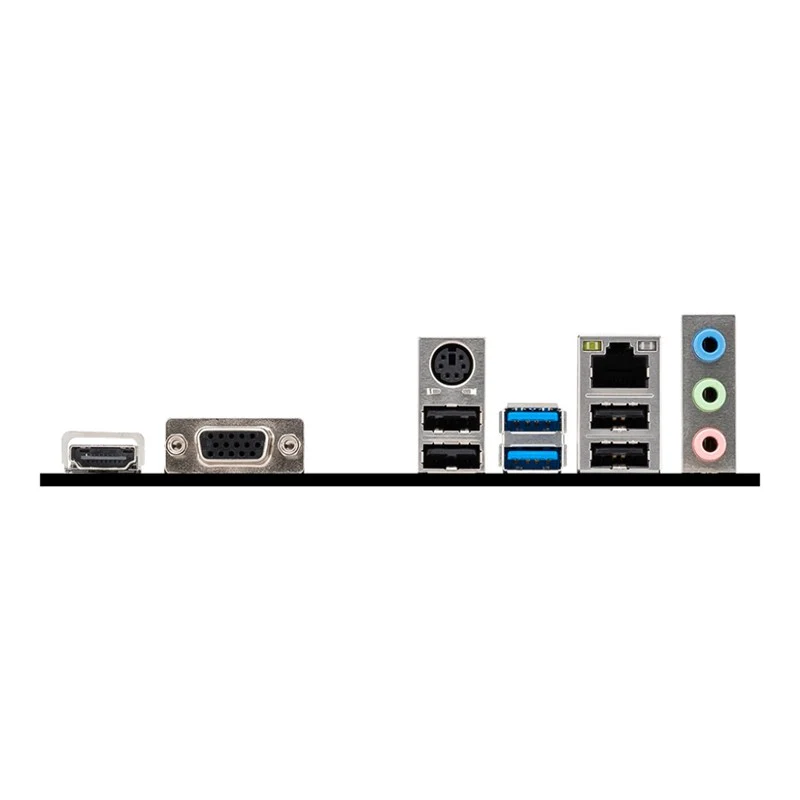

Back Panel Ports |
HDMI™ |
|
|
VGA |
|
|
Keyboard / Mouse |
|
|
USB 3.2 Gen 1 5Gbps (Type-A) |
|
|
LAN port |
|
|
Audio Connectors |
|
|
USB 2.0 |
|
|
USB 2.0 |
|
|
|
Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Dimension |
mATX |
|
|
202mmx236mm |
