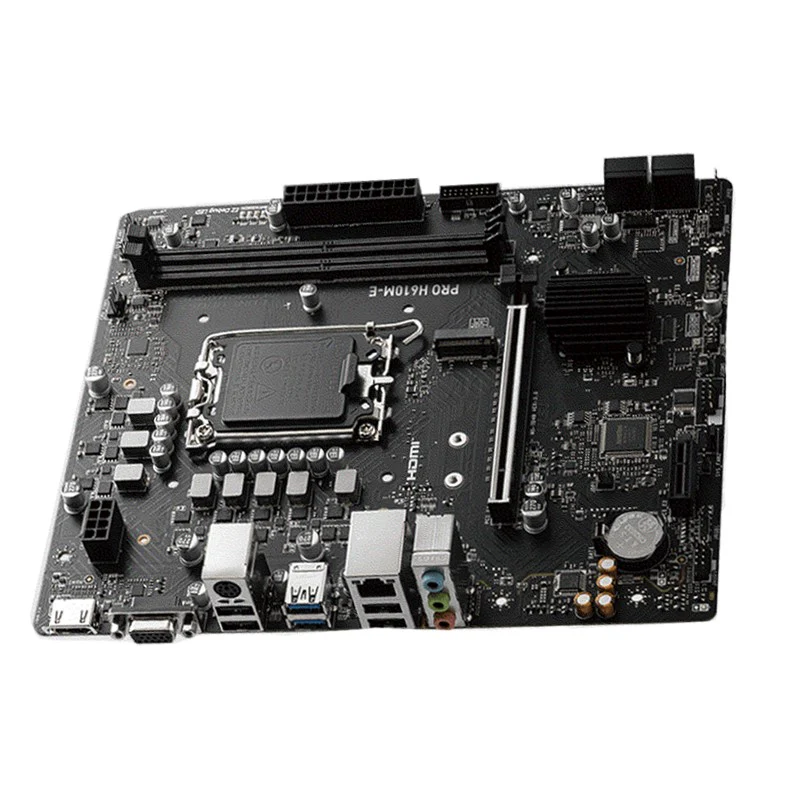

MSI PRO H610M-E DDR5 Micro ATX Gaming Motherboard

MSI PRO H610M-E DDR5 Micro ATX Gaming Motherboard

Efficient and Productive Experience

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Fully Controllable in BIOS and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Optimize Network for Lower Latency

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

Lightning Gen 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Pro H610M-E Features

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket. Supports DDR5 Memory, up to 5600(MAX) MHz. Core Boost: With premium layout and digital power design to support more cores and provide better performance. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Lightning Fast Experience: PCIe 4.0. Audio Boost: Reward your ears with studio grade sound quality. Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

CPU

Supports Intel Core 14th / 13th / 12th Gen, Intel Pentium Gold, and Celeron Processors

Socket

LGA 1700

Memory

2x DDR5 slots, up to 96 GB maximum capacity

Memory Support

DDR5 5600 MHz (by JEDEC & POR), Intel XMP 3.0 OC, Dual-Controller Dual-Channel mode, Non-ECC unbuffered memory

Onboard Graphics

1x HDMI 1.4 with HDR, max resolution 4K, 30 Hz
1x VGA, max resolution 2048x1536,  50 Hz / 2048x1280 x 60 Hz / 1920x1200, 60 Hz
*Available only with processors featuring integrated graphics

Expansion Slots

1x PCI-E x16 slot (PCIe 4.0, from CPU)
1x PCI-E x1 slot (PCIe 3.0, from Chipset)

Audio

Realtek ALC897 Codec, 7.1-Channel High Definition Audio

Storage

1x M.2 (PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices)
4x SATA 6G ports
*SATA5 disabled when M.2 SATA SSD installed in M2_1 slot

USB Ports

Rear: 4x USB 2.0, 2x USB 5 Gbps Type-A
Front: 4x USB 2.0, 2x USB 5 Gbps Type-A

LAN

Realtek RTL8111H Gigabit LAN

Internal I/O Connectors

1x ATX Power Connector
1x CPU Power Connector
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x COM Port (JCOM)
1x RGB LED Connector (JRGB)
1x TPM Header (Supports TPM 2.0)
4x USB 2.0 Ports
2x USB 5 Gbps Type-A Ports
