MSI PRO H610M-S DDR4 M-ATX Gaming Motherboard

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

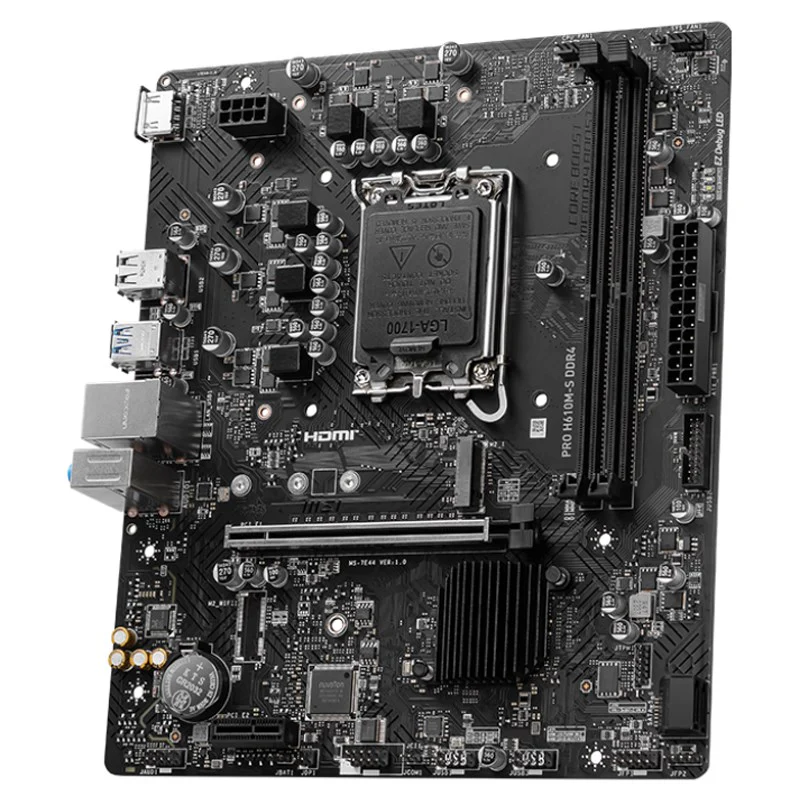

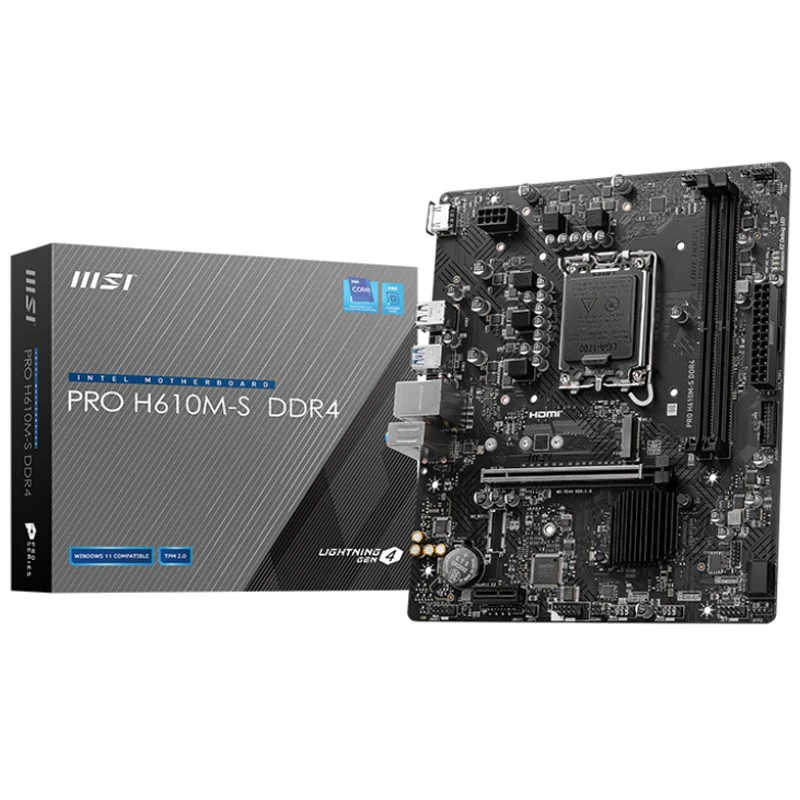

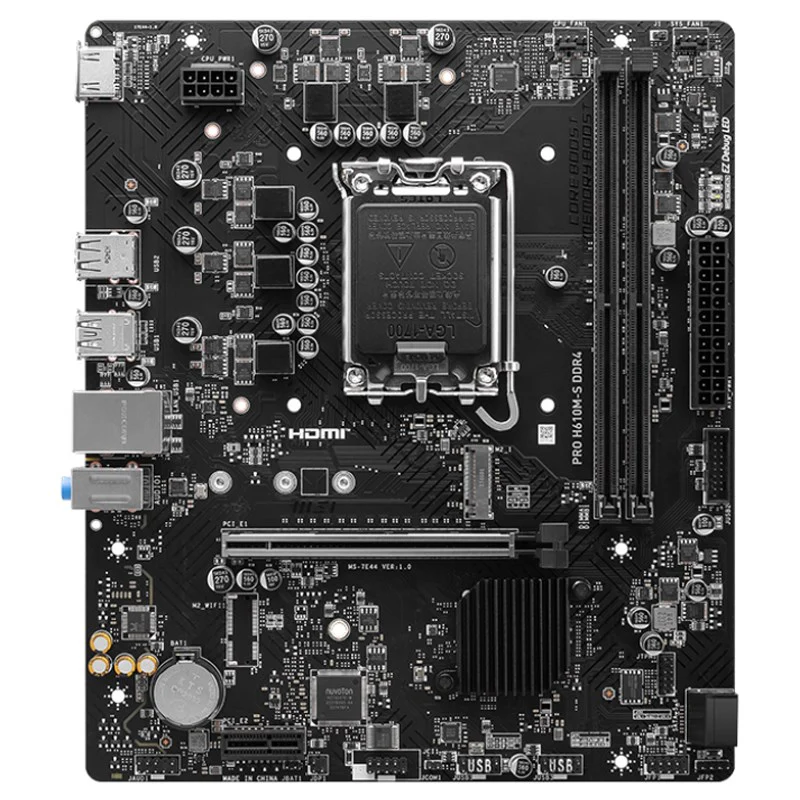

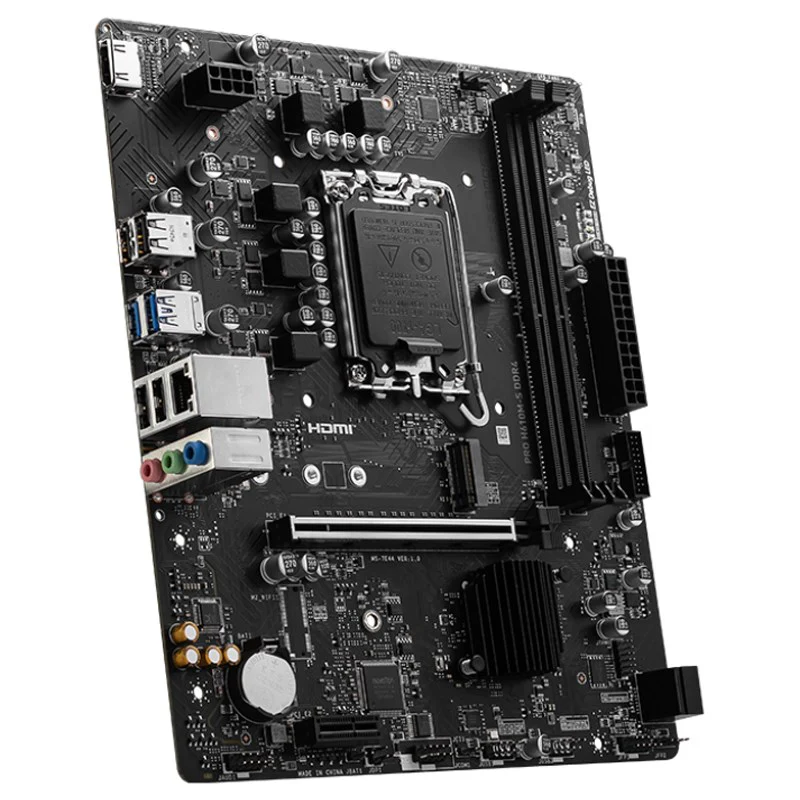

MSI PRO H610M-S DDR4 M-ATX Gaming Motherboard

MSI PRO H610M-S DDR4 M-ATX Gaming Motherboard

Specifications:

Chipset

INTEL H610

CPU

Support IntelĀ® Coreā„¢ 14th/ 13th/ 12th Gen Processors, IntelĀ® PentiumĀ® Gold and CeleronĀ® Processors

Ā

LGA 1700

Memory

2x DDR4, Maximum Memory Capacity 64GB

Ā

Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Ā

Supports Dual-Channel mode

Ā

Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMIā„¢

Ā

Support HDMIā„¢ 1.4 with HDR, maximum resolution of 4K 30Hz*

Ā

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

1x PCI-E x16 slot

Ā

1x PCI-E x1 slot

Ā

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

Ā

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

RealtekĀ®Ā ALC897 Codec

Ā

7.1-Channel High Definition Audio

Storage

1x M.2

Ā

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

Ā

2x SATA 6G

USB

4x USB 2.0 (Rear)

Ā

4x USB 2.0 (Front)

Ā

2x USB 5Gbps Type A (Rear)

Ā

2x USB 5Gbps Type A (Front)

LAN

RealtekĀ®Ā RTL8111H Gigabit LAN

Internal IO

1x Power Connector(ATX_PWR)

Ā

1x Power Connector(CPU_PWR)

Ā

1x CPU Fan

Ā

1x System Fan

Ā

2x Front Panel (JFP)

Ā

1x Chassis Intrusion (JCI)

Ā

1x Front Audio (JAUD)

Ā

1x Com Port (JCOM)

Ā

1x TPM pin header(Support TPM 2.0)

Ā

4x USB 2.0 ports

LED Feature

4x EZ Debug LED

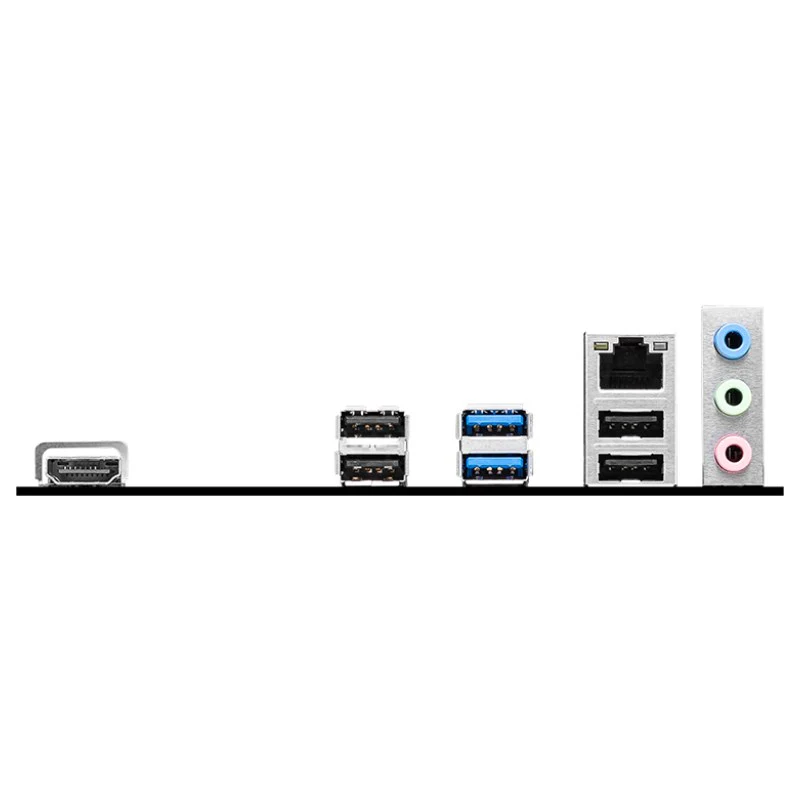

Back Panel Ports

HDMIā„¢

Ā

USB 3.2 Gen 1 5Gbps (Type-A)

Ā

USB 2.0

Ā

LAN port

Ā

Audio Connectors

Ā

USB 2.0

Operating System

Support for WindowsĀ®Ā 11 64-bit, WindowsĀ®Ā 10 64-bit

PCB Info

mATX

Ā

200mmx236.16mm
$32.84

Original: $93.82

-65%
MSI PRO H610M-S DDR4 M-ATX Gaming Motherboardā€”

$93.82

$32.84
