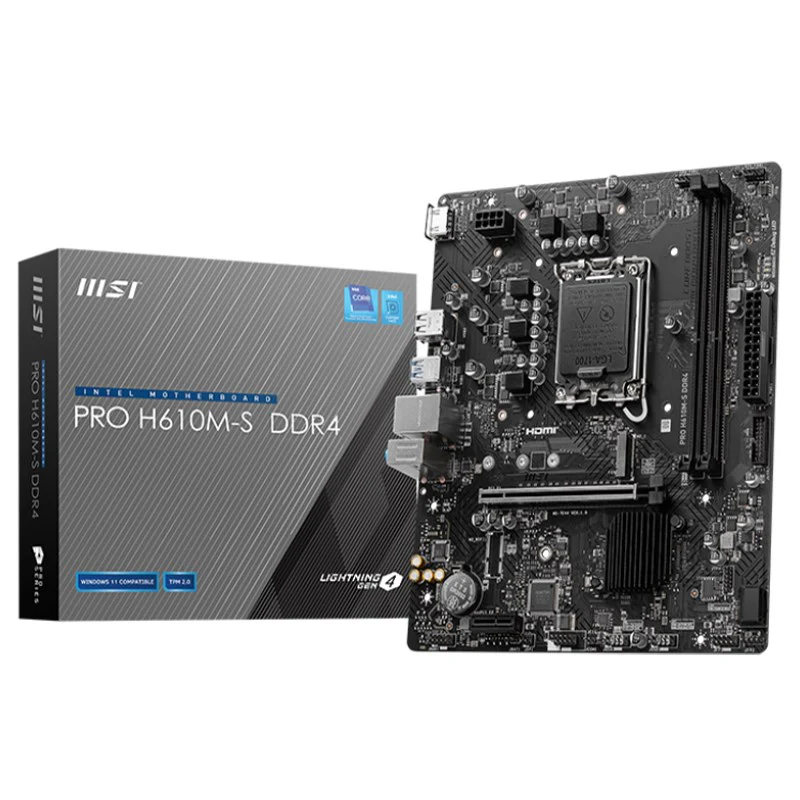

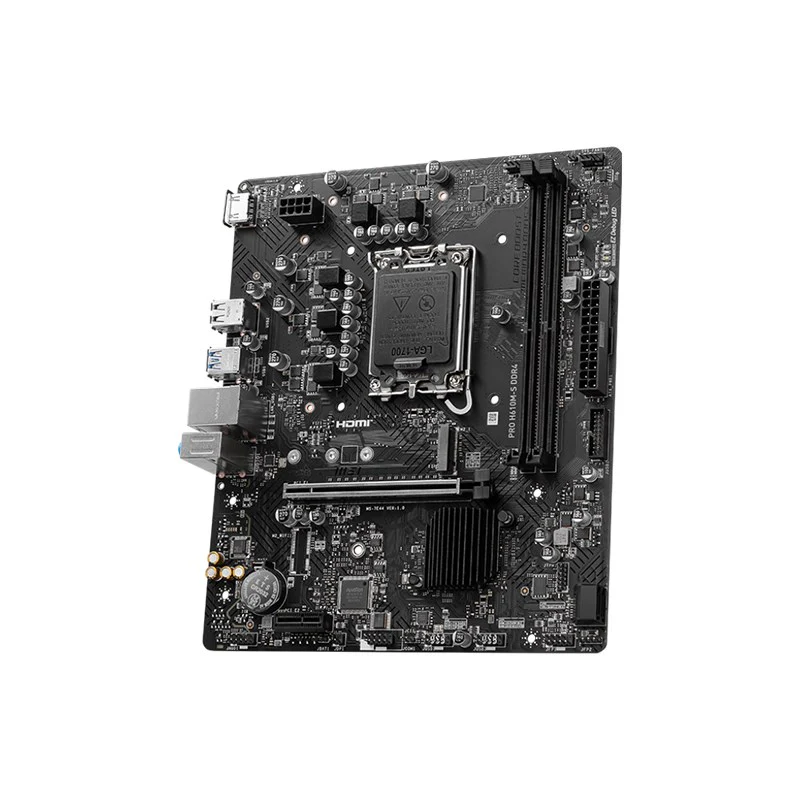

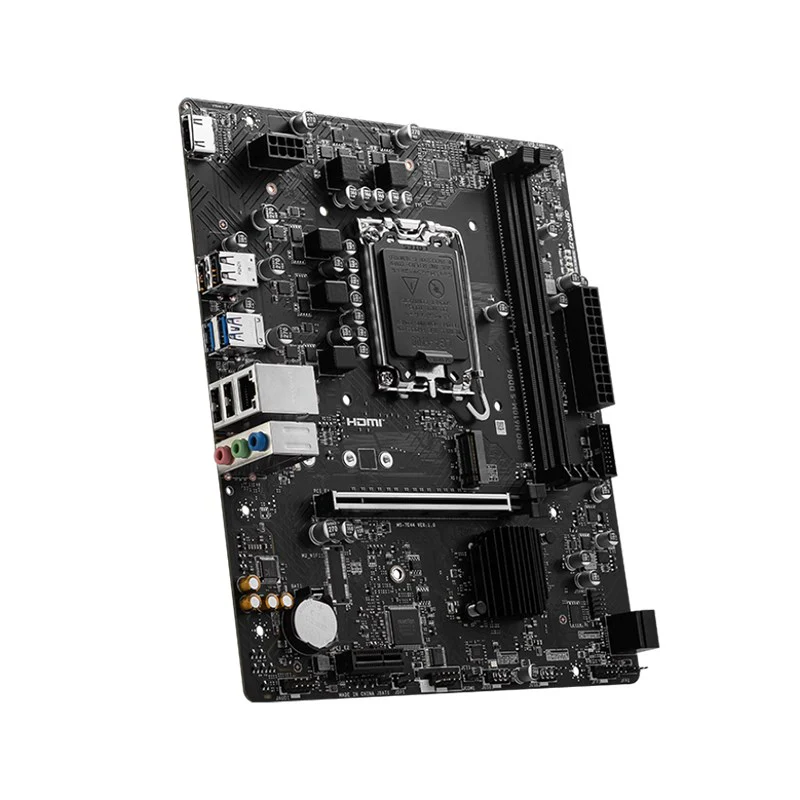

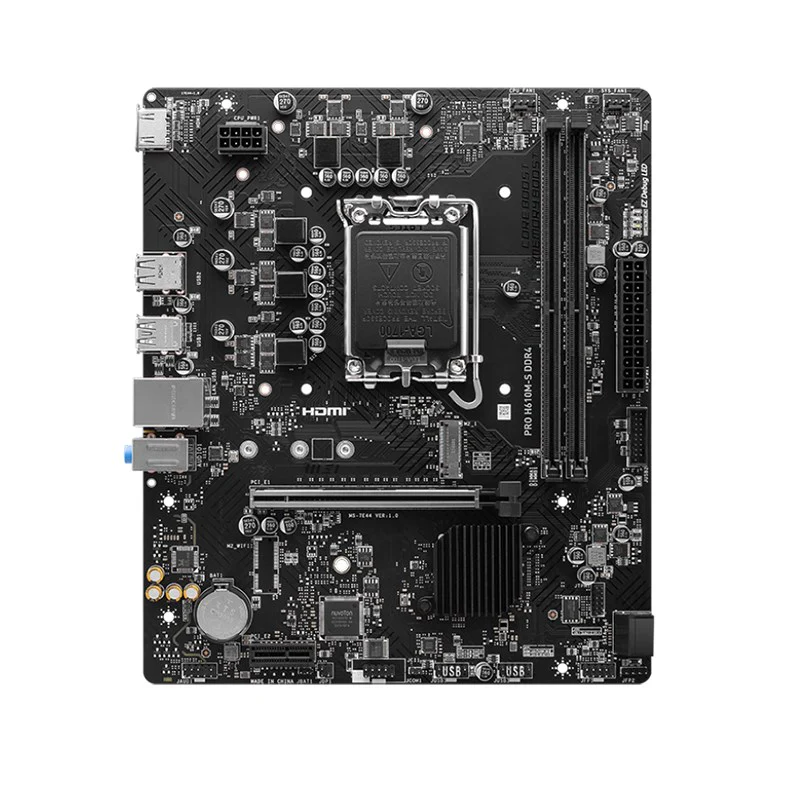

MSI PRO H610M-S DDR4 Micro ATX Gaming Motherboard

MSI PRO H610M-S DDR4 Micro ATX Gaming Motherboard

Lightning Gen 4 PCI-E

MSI Lightning Gen 4 PCI-E is the latest and fastest PCI-E data transfer solution with 64 GB/s of transfer bandwidth, which has doubled compared to its previous generation.

PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Fully Controllable in Bios and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans.

Total Fan Control allows you to u check your primary system characteristics in a simplified graphical interface.

You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically.

Connectivity

The most important thing about DIY is expandability. MSI PRO series motherboards feature plenty of possibilities for prosumers.

Stable LAN, faster storage, and USB transfer speed, and other expandable connectors are ready to increase your flexibility.

Fast and Future-Ready Storage

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device.

Higher efficiency makes your work easier.

User-Friendly Design

MSI motherboards feature tons of convenient and smart design for DIY users, and countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

Makes it so easy to install your motherboard without any issue.

Chipset

Intel H610

CPU Support

Intel Core 14th/13th/12th Gen, Pentium Gold, and Celeron Processors

Socket

LGA 1700

Memory

2x DDR4, up to 64 GB

Memory Features

Dual-Channel, non-ECC, un-buffered

Onboard Graphics

1x HDMI

Expansion Slots

1x PCI-E x16 (PCIe 4.0), 1x PCI-E x1 (PCIe 3.0)

Audio

Realtek ALC897 Codec, 7.1-Channel HD Audio

Storage

1x M.2 (PCIe 3.0 x4, supports 2280/2260/2242), 2x SATA 6G

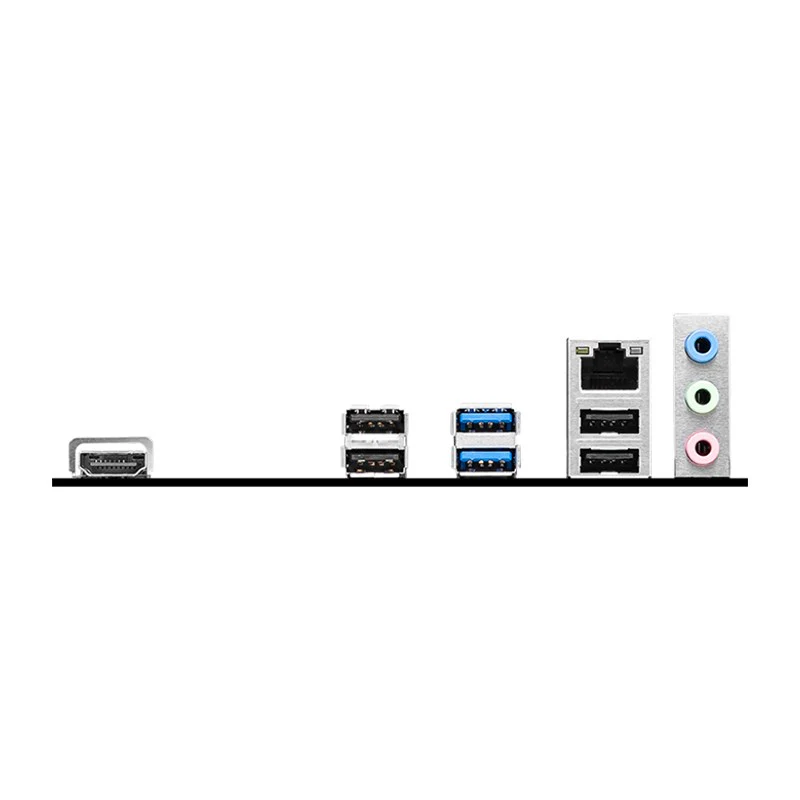

USB Ports

Rear: 4x USB 2.0, 2x USB 5 Gbps Type A
Front: 4x USB 2.0, 2x USB 5 Gbps Type A

LAN

Realtek RTL8111H Gigabit LAN

Internal I/O

1x ATX_PWR

1x CPU Fan

1x CPU_PWR

1x System Fan

2x JFP

1x JCI

1x JAUD

1x JCOM

1x TPM header (TPM 2.0)

4x USB 2.0 ports
