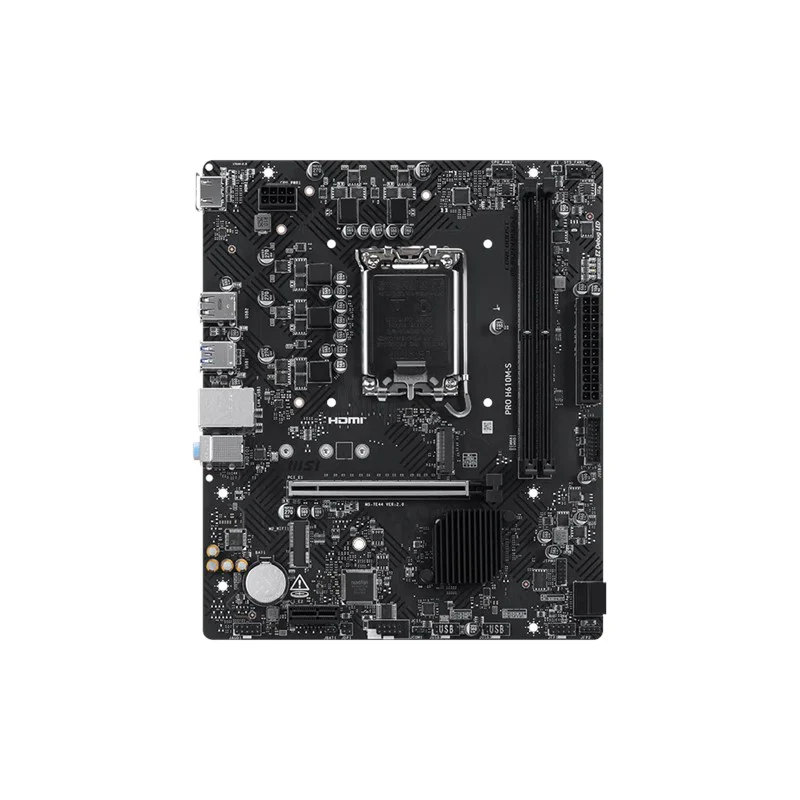

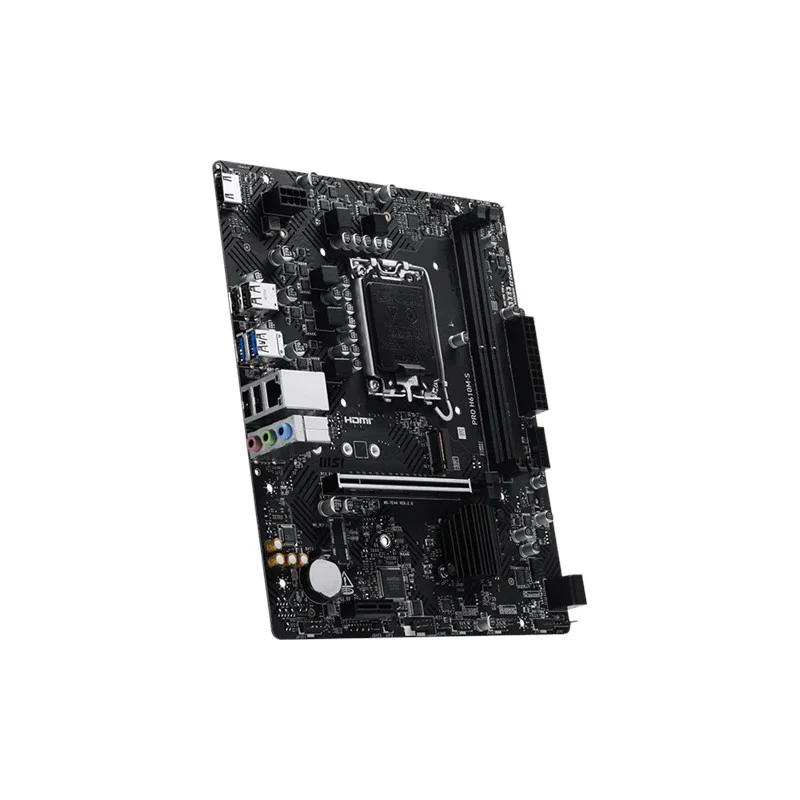

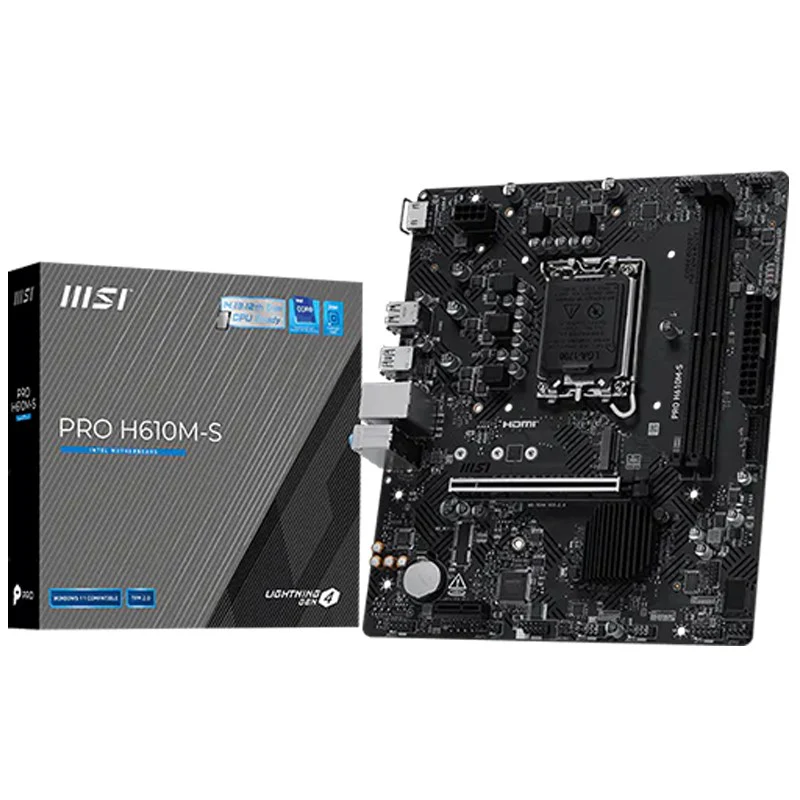

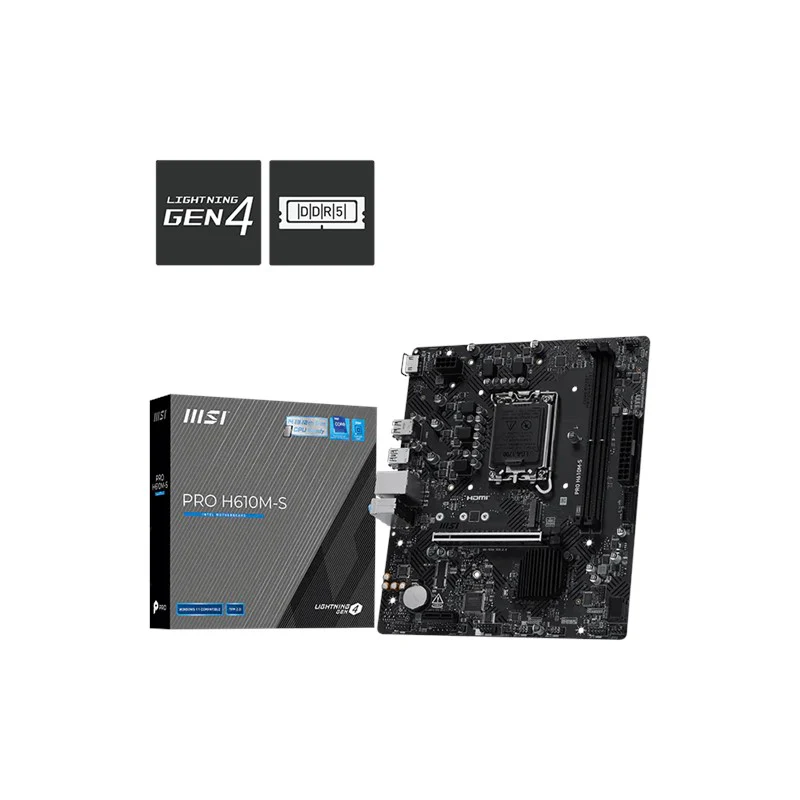

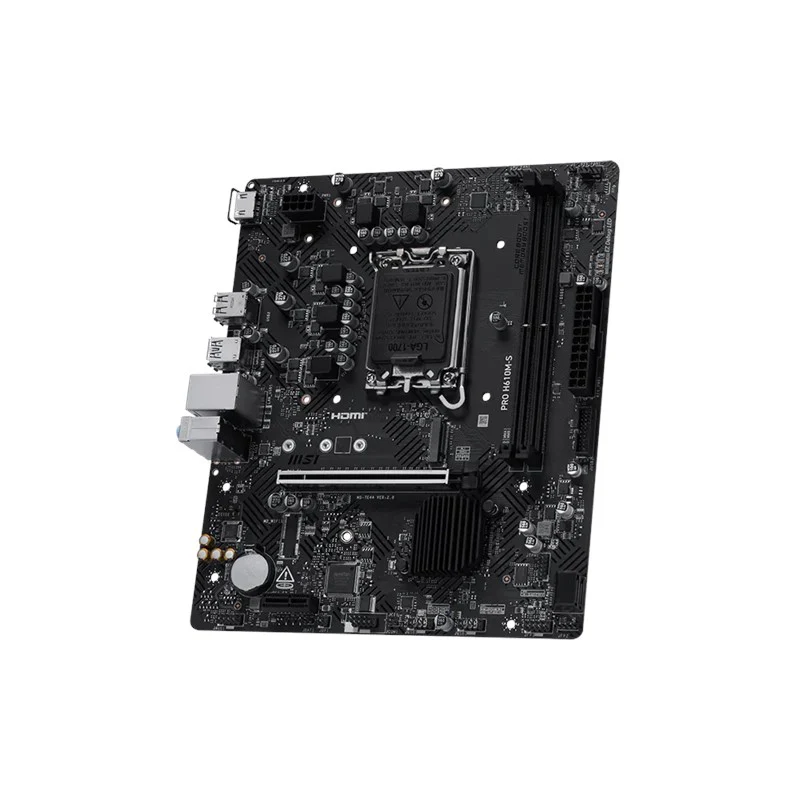

MSI PRO H610M-S DDR5 M-ATX Gaming Motherboard

MSI PRO H610M-S DDR5 M-ATX Gaming Motherboard

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

Supports DDR5 Memory, up to 5600(MAX) MHz

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

What are the benefits of MSI Gaming Motherboard ?

• Supports Intel 14th, 13th, and 12th Gen processors (LGA 1700)

• Compatible with DDR5 memory up to 5600 MHz

• Core Boost design for stronger, more stable CPU performance

• Memory Boost for improved stability and compatibility

• PCIe 4.0 support for faster graphics and storage performance

• Audio Boost for high-quality, immersive sound

• Steel Armor protection for stronger, more durable GPU support

Chipset

INTEL H610

CPU

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

LGA 1700

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128 GB

Memory Support DDR5 5600 MT/s (by JEDEC & POR)

Supports Intel POR Speed and JEDEC Speed

Supports Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Slot

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Storage

1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

2x SATA 6G

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LAN

Realtek RTL8111H Gigabit LAN

Internal IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info

mATX

200mmx236.16mm
