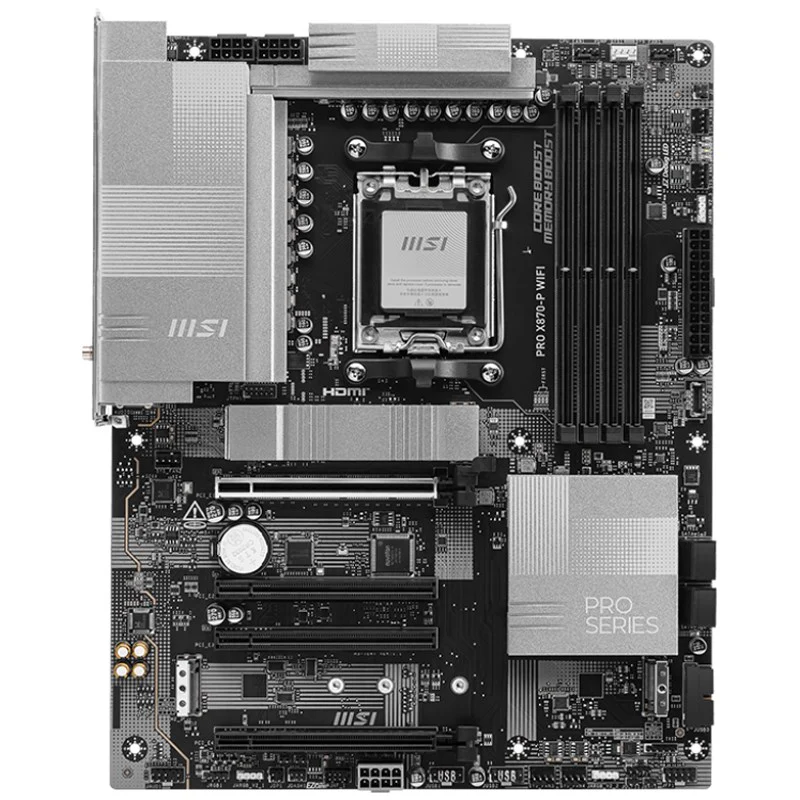

Chipset
|
AMD X870
|
CPU
|
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
|
|
Socket AM5
|
Memory
|
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
|
|
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
|
|
Ryzen™ 9000 Series Processors max. overclocking frequency:
|
|
• 1DPC 1R Max speed up to 8200+ MT/s
|
|
• 1DPC 2R Max speed up to 6400+ MT/s
|
|
• 2DPC 1R Max speed up to 6400+ MT/s
|
|
• 2DPC 2R Max speed up to 4800+ MT/s
|
|
Supports AMD POR Speed and JEDEC Speed
|
|
Supports Memory Overclocking and AMD EXPOTM
|
|
Supports Dual-Channel mode
|
|
Supports Non-ECC, Un-buffered memory
|
|
Supports CUDIMM, Clock Driver bypass mode only*
|
|
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
|
|
• The DIMM slots on this motherboard have double-sided latches.
|
|
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
|
Onboard Graphics
|
1x HDMI™
|
|
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
|
|
1x Type-C DisplayPort
|
|
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
|
|
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
Slot
|
4x PCI-E x16 slot
|
|
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
|
|
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
|
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
|
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
|
PCI_E1 slot
|
|
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
|
|
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
|
|
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
|
|
* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
|
Audio
|
Realtek® ALC897
|
|
7.1-Channel High Definition Audio
|
Storage
|
3x M.2
|
|
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
|
|
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
|
|
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
|
|
4x SATA 6G
|
|
M2_1 slot
|
|
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
|
|
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
|
|
*Please refer to the manual for M.2 SSD heatsink restrictions.
|
RAID
|
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
|
|
*SATA_A1~A4 do not support RAID function.
|
|
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
|
USB
|
4x USB 2.0 (Rear)
|
|
4x USB 2.0 (Front)
|
|
2x USB 5Gbps Type A (Rear)
|
|
2x USB 5Gbps Type A (Front)
|
|
2x USB 10Gbps Type A (Rear)
|
|
1x USB 10Gbps Type C (Front)
|
|
1x USB 20Gbps Type C (Rear)
|
|
1x USB 40Gbps Type C (Rear)
|
LAN
|
Realtek® 8126VB 5G LAN
|
Internal IO
|
1x Power Connector(ATX_PWR)
|
|
2x Power Connector(CPU_PWR)
|
|
1x Power Connector(PCIE_PWR 8pin)
|
|
1x CPU Fan
|
|
1x Combo Fan (Pump_Sys Fan)
|
|
6x System Fan
|
|
1x EZ Conn-header (JAF_1)
|
|
2x Front Panel (JFP)
|
|
1x Chassis Intrusion (JCI)
|
|
1x Front Audio (JAUD)
|
|
1x Tuning Controller connector(JDASH)
|
|
3x Addressable V2 RGB LED connector (JARGB_V2)
|
|
1x RGB LED connector(JRGB)
|
|
1x TPM pin header(Support TPM 2.0)
|
|
4x USB 2.0 ports
|
|
2x USB 5Gbps Type A ports
|
|
1x USB 10Gbps Type C ports
|
Wireless LAN & Bluetooth
|
Wi-Fi 7
|
|
The Wireless module is pre-installed in the M.2 (Key-E) slot
|
|
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
|
|
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
|
|
Supports Bluetooth® 5.4**, MLO, 4KQAM
|
|
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
|
|
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
|
LED Feature
|
4x EZ Debug LED
|
Back Panel Ports
|
Clear CMOS Button
|
|
USB 5Gbps Type-A
|
|
USB 2.0
|
|
5G LAN
|
|
Wi-Fi / Bluetooth
|
|
Audio connectors
|
|
Flash BIOS Button
|
|
HDMI™
|
|
USB 40Gbps Type-C
|
|
USB 10Gbps Type-A
|
|
USB 20Gbps Type-C
|
Operating System
|
Support for Windows® 11 64-bit
|
PCB Info
|
ATX
|
|
243.84mmx304.8mm
|
