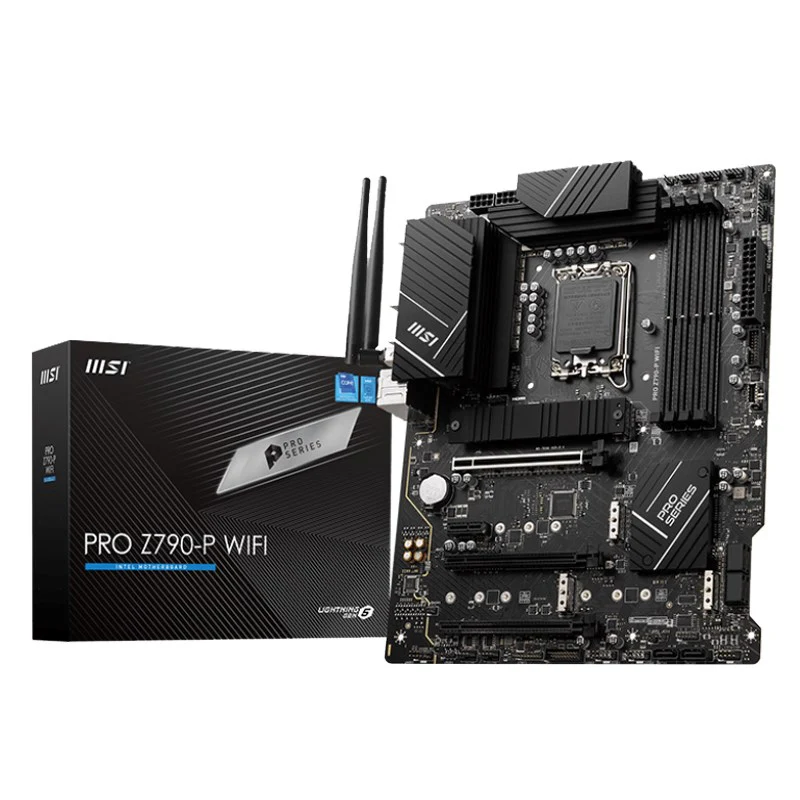

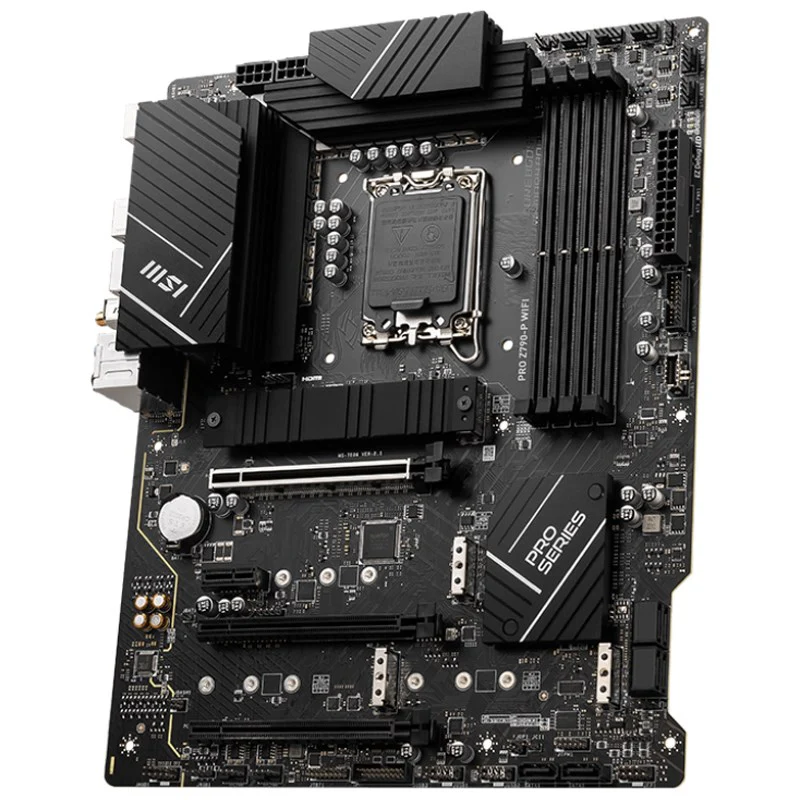

Chipset
|
INTEL Z790
|
CPU
|
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
|
|
LGA 1700
|
Memory
|
4x DDR5, Maximum Memory Capacity 256GB
|
|
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
|
|
Max. overclocking frequency:
|
|
• 1DPC 1R Max speed up to 7000+ MHz
|
|
• 1DPC 2R Max speed up to 6600+ MHz
|
|
• 2DPC 1R Max speed up to 6400+ MHz
|
|
• 2DPC 2R Max speed up to 5600+ MHz
|
|
Supports Intel® XMP 3.0 OC
|
|
Supports Dual-Controller Dual-Channel mode
|
|
Supports non-ECC, un-buffered memory
|
Onboard Graphics
|
1x HDMI™
|
|
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
|
|
1x DisplayPort
|
|
Support DP 1.4, maximum resolution of 4K 60Hz*
|
|
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
Slot
|
3x PCI-E x16 slot
|
|
1x PCI-E x1 slot
|
|
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
|
|
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
|
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
|
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
Storage
|
4x M.2
|
|
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
|
|
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
|
|
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
|
|
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
|
|
6x SATA 6G
|
RAID
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
|
USB
|
4x USB 2.0 (Rear)
|
|
4x USB 2.0 (Front)
|
|
4x USB 2.0 ports (Rear)
|
|
4x USB 2.0 ports (Front)
|
|
2x USB 5Gbps Type A (Rear)
|
|
4x USB 5Gbps Type A (Front)
|
|
1x USB 10Gbps Type A (Rear)
|
|
1x USB 10Gbps Type C (Front)
|
|
1x USB 20Gbps Type C (Rear)
|
LAN
|
Intel® 2.5Gbps LAN
|
Wireless LAN & Bluetooth
|
Intel® Wi-Fi 6E
|
|
The Wireless module is pre-installed in the M.2 (Key-E) slot
|
|
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
|
|
Supports 802.11 a/ b/ g/ n/ ac/ ax
|
|
Supports Bluetooth® 5.3, FIPS, FISMA
|
|
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
|
|
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
|
Audio
|
Realtek® ALC897 Codec
|
|
7.1-Channel High Definition Audio
|
Internal IO
|
1x Power Connector(ATX_PWR)
|
|
2x Power Connector(CPU_PWR)
|
|
1x CPU Fan
|
|
1x Pump Fan
|
|
6x System Fan
|
|
2x Front Panel (JFP)
|
|
1x Chassis Intrusion (JCI)
|
|
1x Front Audio (JAUD)
|
|
1x TBT connector (JTBT, supports RTD3)
|
|
1x Tuning Controller connector(JDASH)
|
|
2x Addressable V2 RGB LED connector (JARGB_V2)
|
|
1x RGB LED connector(JRGB)
|
|
1x TPM pin header(Support TPM 2.0)
|
|
4x USB 2.0 ports
|
|
4x USB 5Gbps Type A ports
|
|
1x USB 10Gbps Type C ports
|
LED Feature
|
4x EZ Debug LED
|

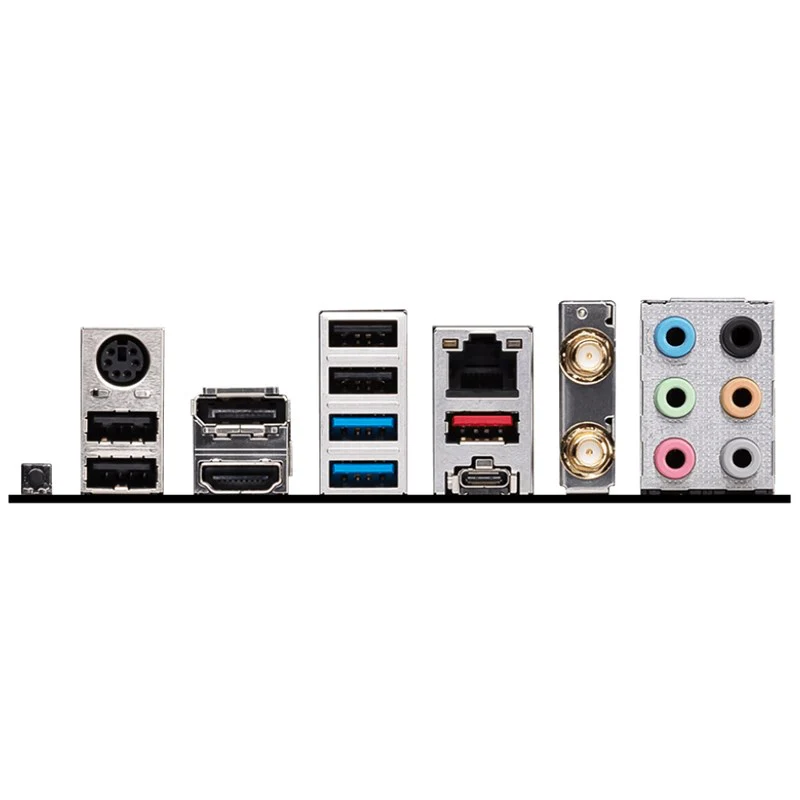

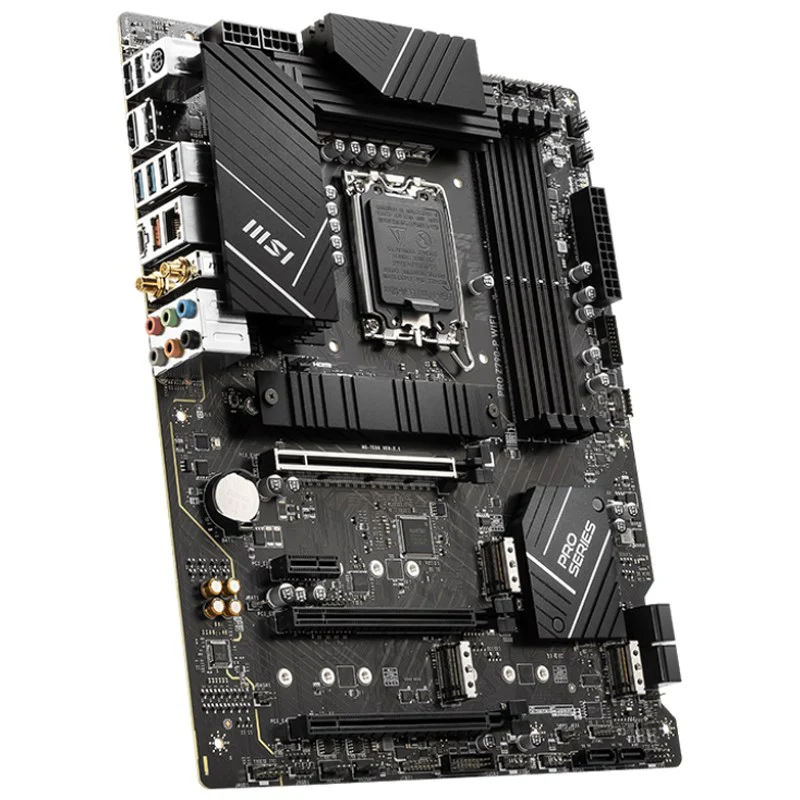

Back Panel Ports
|
Keyboard / Mouse
|
|
DisplayPort
|
|
USB 2.0
|
|
2.5G LAN
|
|
Wi-Fi / Bluetooth
|
|
Audio Connectors
|
|
Flash BIOS Button
|
|
USB 2.0
|
|
HDMI™
|
|
USB 3.2 Gen 1 5Gbps (Type-A)
|
|
USB 3.2 Gen 2x2 20Gbps (Type-C)
|
|
USB 3.2 Gen 2 10Gbps (Type-A)
|
Operating System
|
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
PCB Info
|
ATX
|
|
243.84mmx304.8mm
|
