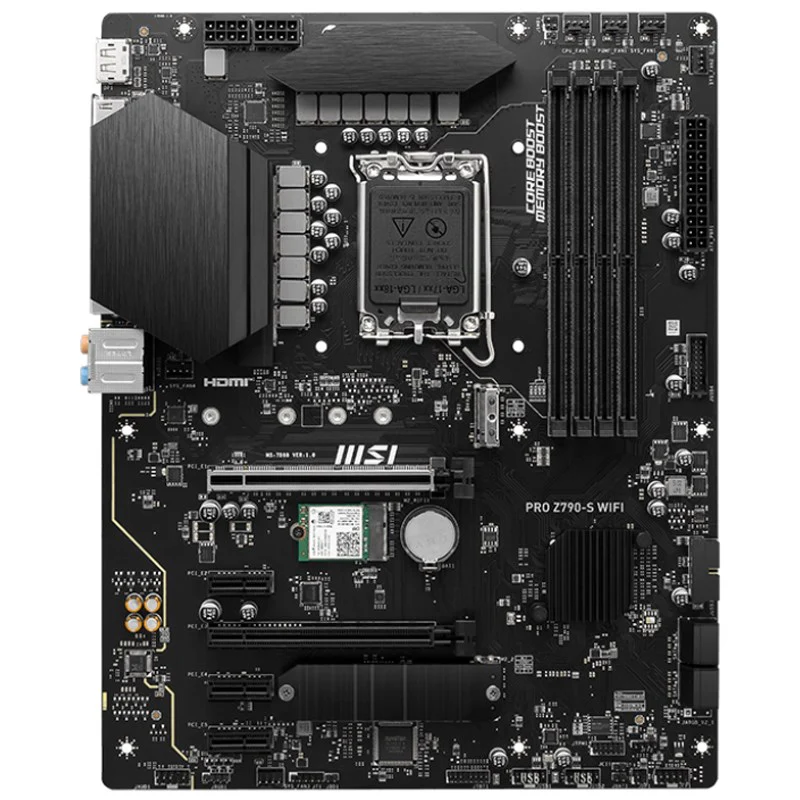

Chipset | INTEL Z790 |
CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| LGA 1700 |
Memory | 4x DDR5, Maximum Memory Capacity 256GB |
| Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 6600+ MHz |
| • 1DPC 2R Max speed up to 6400+ MHz |
| • 2DPC 1R Max speed up to 6000+ MHz |
| • 2DPC 2R Max speed up to 5600+ MHz |
| Supports Intel® XMP 3.0 OC |
| Supports Dual-Controller Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
| Supports S/PDIF output |
Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G |
LAN | Realtek® RTL8125BG 2.5Gbps LAN |
Onboard Graphics | 1x HDMI™ |
| Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* |
| 1x DisplayPort |
| Support DP 1.4, maximum resolution of 4K 60Hz* |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot | 2x PCI-E x16 slot |
| 3x PCI-E x1 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) |
| PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 4x USB 5Gbps Type A (Rear) |
| 4x USB 5Gbps Type A (Front) |
| 1x USB 20Gbps Type C (Rear) |
Wireless LAN & Bluetooth | Intel® Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Supports Bluetooth® 5.3, FIPS, FISMA |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
Internal IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x Pump Fan |
| 4x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x TBT connector (JTBT, supports RTD3) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 4x USB 5Gbps Type A ports |

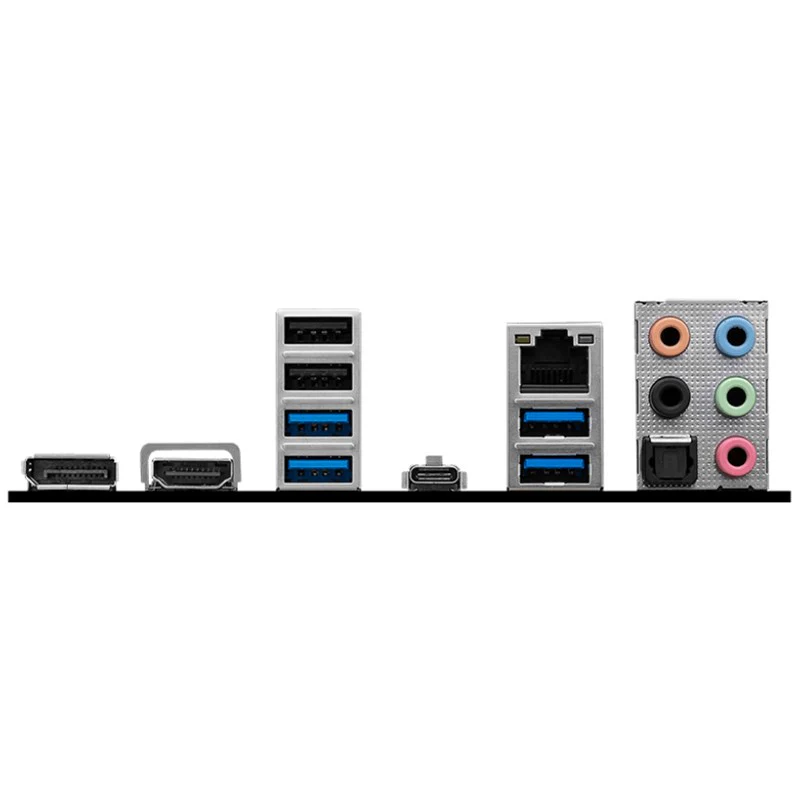

Back Panel Ports | DisplayPort |
| HDMI™ |
| USB 2.0 |
| USB 3.2 Gen 2x2 20Gbps (Type-C) |
| 2.5G LAN |
| Audio Connectors |
| USB 3.2 Gen 1 5Gbps (Type-A) |
| USB 3.2 Gen 1 5Gbps (Type-A) |
| S/PDIF-OUT |
Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Info | ATX |
| 243.84mmx304.8mm |
