MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

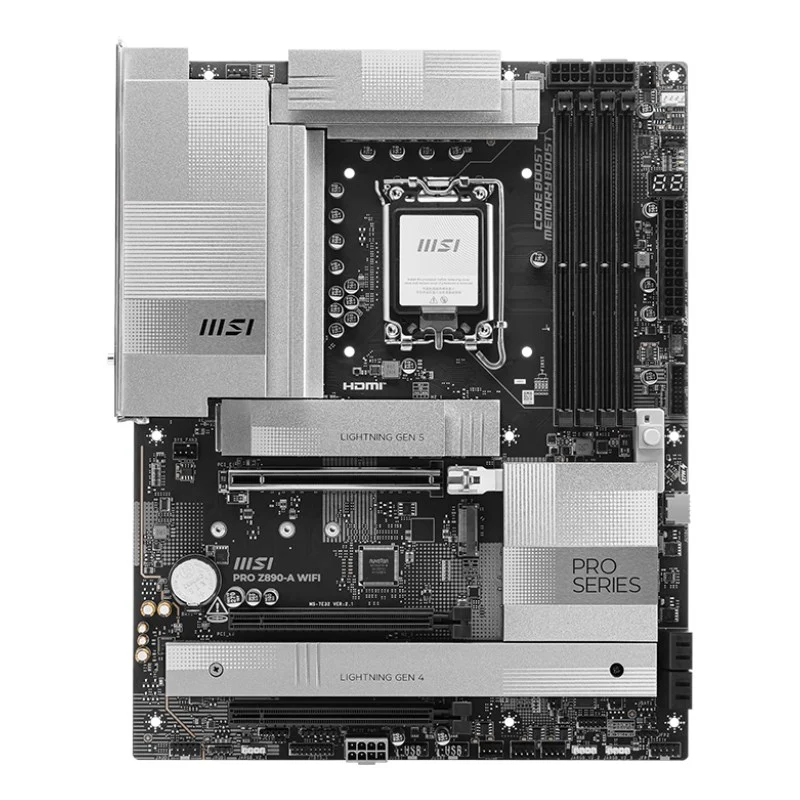

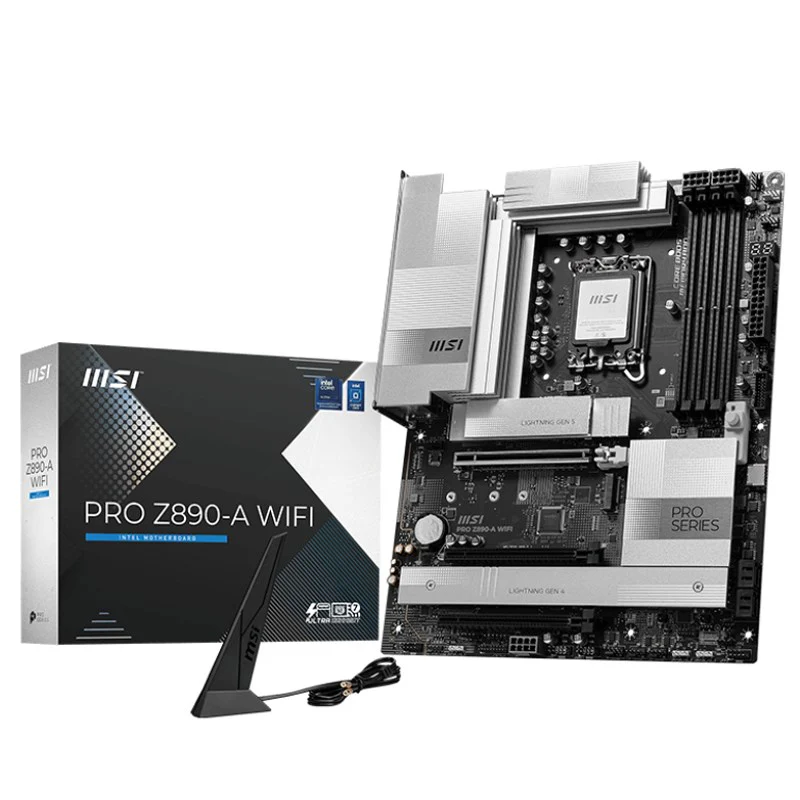

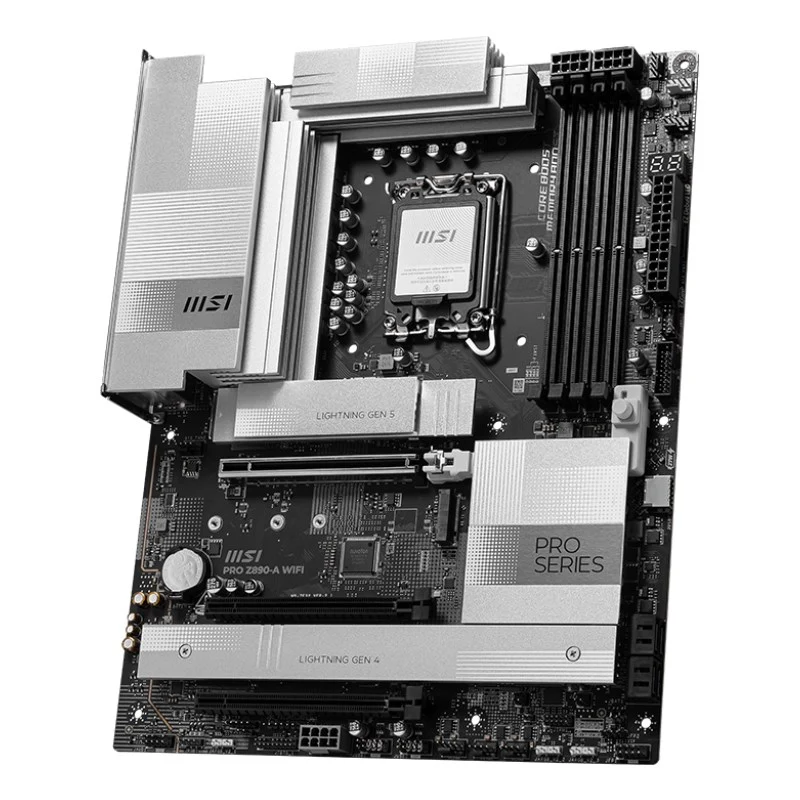

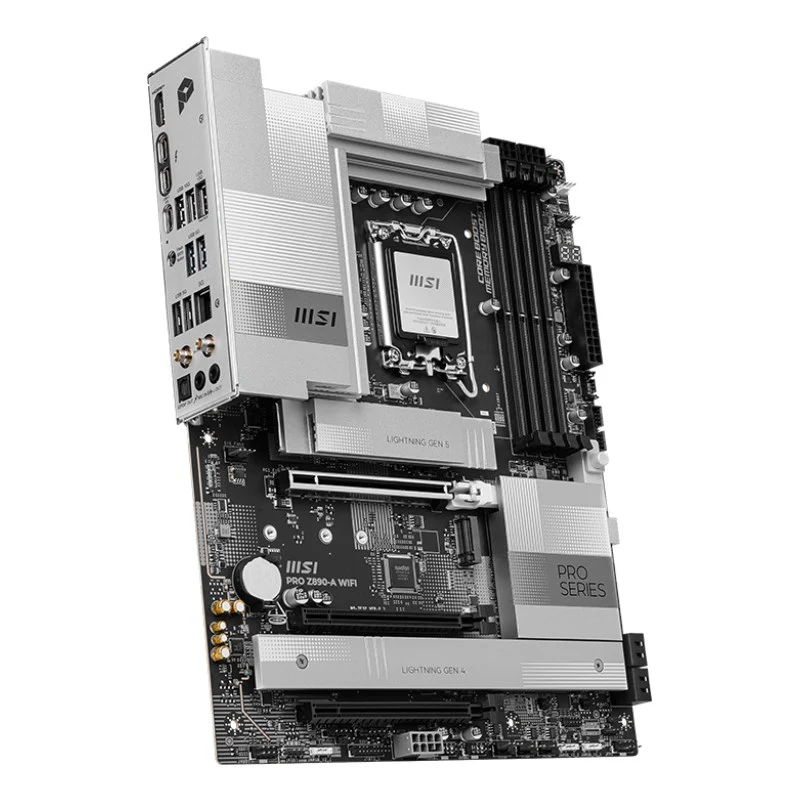

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

PRO Z890-A WIFI

PRO Z890-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI including true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

Business Elegance

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide user’s incredible experience. Users who care about productivity and efficiency can count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI Motherboard Ai Logo

MSI motherboards are designed with advanced hardware and technology, and well-support the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine

provides several categories for you to sync the applications you want to perform and automatically optimize them to create a comfortable environment.

AI Lan Manager

optimizes networking performance and minimizes latency, providing a seamless online experience.

FROZR Ai Cooling

automatically adjusts fan duty to make sure the system stays cool, stable and high performance.

AI Boost

is an exclusive MSI feature. It overclocks the NPU to improve higher AI performance.

Specifications:

Chipset

INTEL Z890

CPU

Supports Intel® Core™ Ultra Processors (Series 2)



LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB



Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s



Max. overclocking frequency:



• 1DPC 1R Max speed up to 9200+ MT/s



• 1DPC 2R Max speed up to 7200+ MT/s



• 2DPC 1R Max speed up to 4800+ MT/s



• 2DPC 2R Max speed up to 4800+ MT/s



Supports Intel® POR Speed and JEDEC Speed



Supports Memory Overclocking and Intel® XMP 3.0



Supports Dual-Controller Dual-Channel mode



Supports Non-ECC, Un-buffered memory



Supports CUDIMM



• The DIMM slots on this motherboard only have single-sided latches.



• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

Onboard Graphics

1x HDMI™



Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*



2x Type-C DisplayPort



Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*



*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

3x PCI-E x16 slot



PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)



PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)



PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

Realtek® ALC1220P



7.1-Channel High Definition Audio



Supports S/PDIF output

Storage

4x M.2



M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices



M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices



M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices



M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices



4x SATA 6G



*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Thunderbolt

2x Thunderbolt4 ports (Rear)



Support up to 40Gbps transfer rate with Thunderbolt devices



Support up to 20Gbps transfer rate with USB4 devices



Support up to 10Gbps transfer rate with USB 3.2 devices



Support up to 5V/3A,15W power charging



Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices



Support up to 8K display

USB

4x USB 2.0 (Front)



4x USB 5Gbps Type A (Rear)



2x USB 5Gbps Type A (Front)



3x USB 10Gbps Type A (Rear)



1x USB 10Gbps Type C (Rear)



1x USB 20Gbps Type C (Front)



*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

LAN

Realtek® 8126 5Gbps LAN

Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)



1x Power Connector(ATX_PWR)



2x Power Connector(CPU_PWR)



1x Power Connector(PCIE_PWR 8pin)



1x CPU Fan



1x Combo Fan (Pump_Sys Fan)



6x System Fan



1x EZ Conn-header (JAF_2)



2x Front Panel (JFP)



1x Chassis Intrusion (JCI)



1x Front Audio (JAUD)



3x Addressable V2 RGB LED connector (JARGB_V2)



1x RGB LED connector(JRGB)



1x TPM pin header(Support TPM 2.0)



4x USB 2.0 ports



2x USB 5Gbps Type A ports



1x USB 20Gbps Type C ports

Wireless Lan & Bluetooth

Intel® Wi-Fi 7



The Wireless module is pre-installed in the M.2 (Key-E) slot



Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps



Supports 802.11 a/ b/ g/ n/ ac/ ax/ be



Supports Bluetooth® 5.4**, MLO, 4KQAM



* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.



** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED Feature

4x EZ Debug LED



1x EZ Digit Debug LED

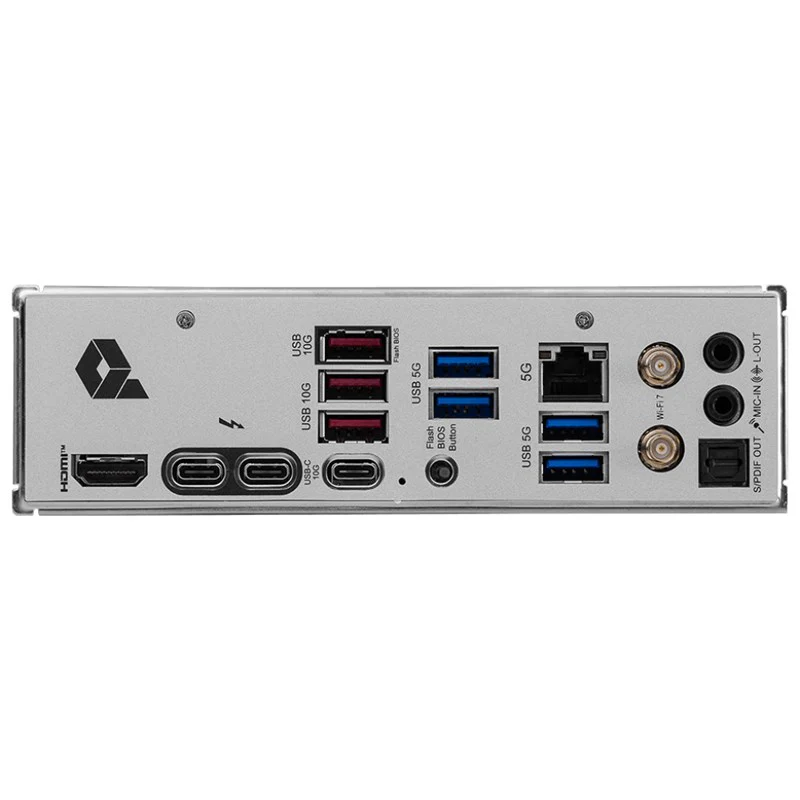

Back Panel Ports

USB 10Gbps Type-A



USB 5Gbps Type-A



5G LAN



Wi-Fi / Bluetooth



Audio Connectors



HDMI™



Thunderbolt™ 4 40Gbps (Type-C)



USB 10Gbps Type-C



Flash BIOS Button



USB 5Gbps Type-A



S/PDIF-OUT

Operating System

Support for Windows® 11 64-bit

Box Content



PCB Info

ATX



243.84mmx304.8mm
