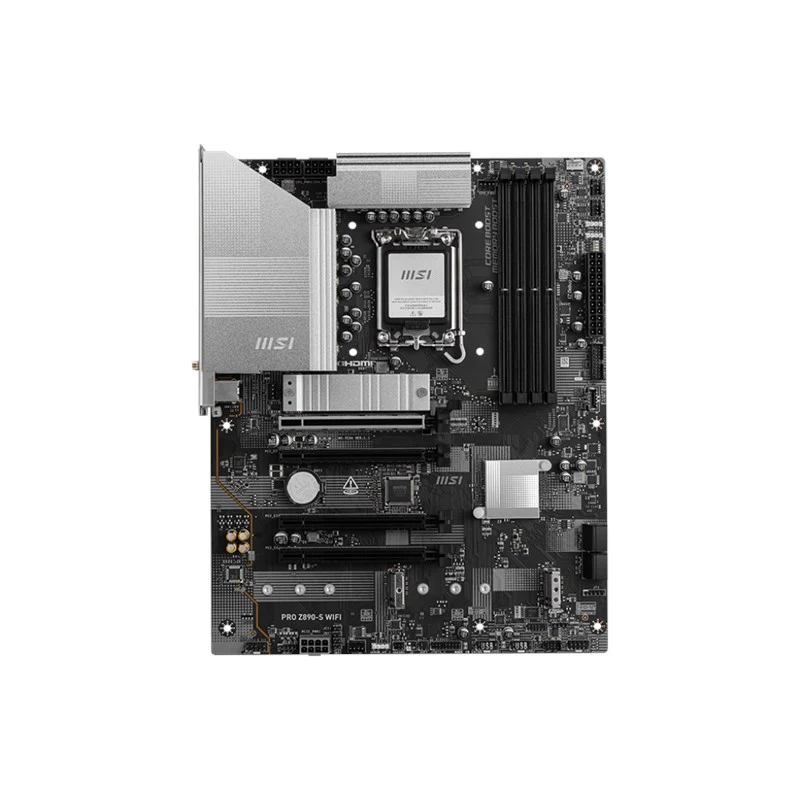

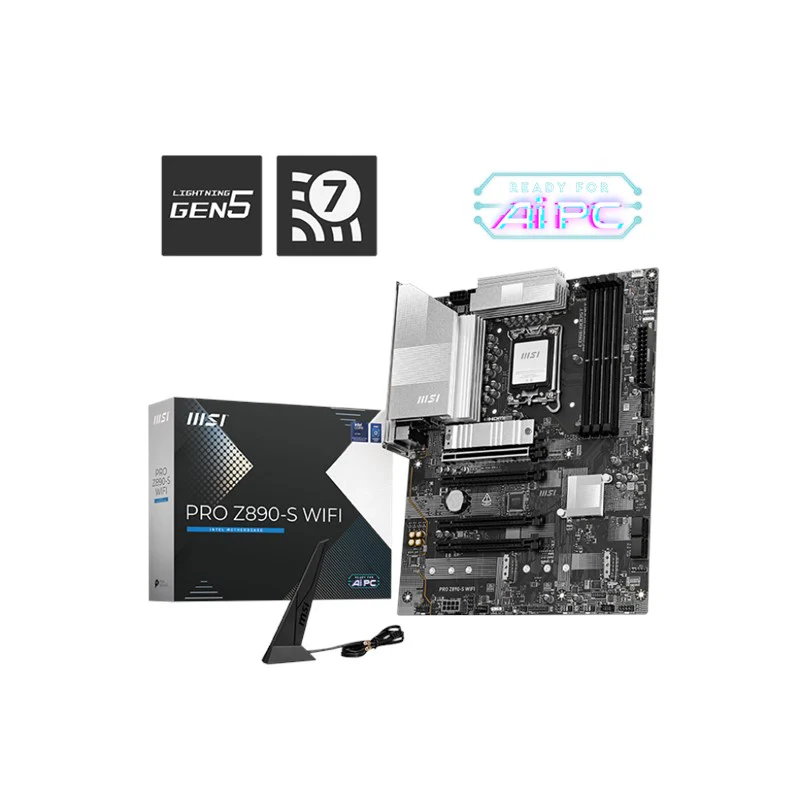

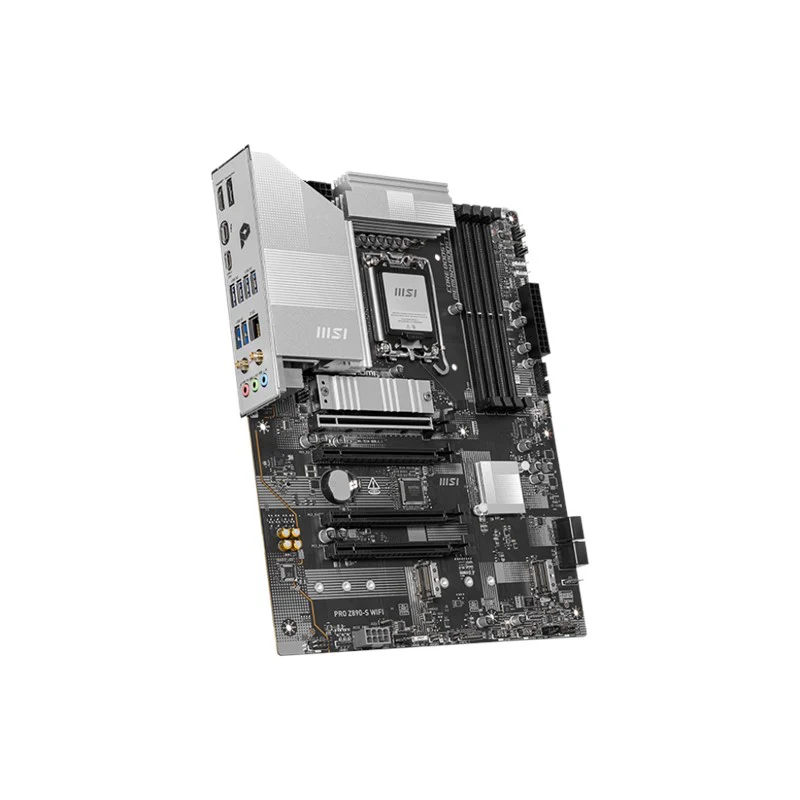

MSI PRO Z890-S WIFI DDR5 ATX Gaming Motherboard - Black

MSI PRO Z890-S WIFI DDR5 ATX Gaming Motherboard

AI

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

One Finger for EZ GPU Installation

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

12+1+1+1 DRPS POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

What are the benefits of MSI PRO Z890-S Gaming Motherboard ?

• AI-optimized performance with advanced hardware support for gaming and AI workloads

• Simplified system tuning with AI features in MSI Center and BIOS

• Easy GPU removal using the one-finger EZ PCIe Clip II design

• Strong and stable power delivery with a 12+1+1+1 digital power phase design

• Ready for high-end processors thanks to dual power connectors

• Optimized PCB design for higher bandwidth and faster data transfer

• Improved reliability through stable circuit transmission

Chipset

INTEL Z890

CPU

Supports Intel Core Ultra Processors (Series 2)

LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

1DPC 1R Max speed up to 8800+ MT/s

1DPC 2R Max speed up to 7200+ MT/s

2DPC 1R Max speed up to 6400+ MT/s

2DPC 2R Max speed up to 5600+ MT/s

Slot

4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Onboard Thunderbolt

1x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

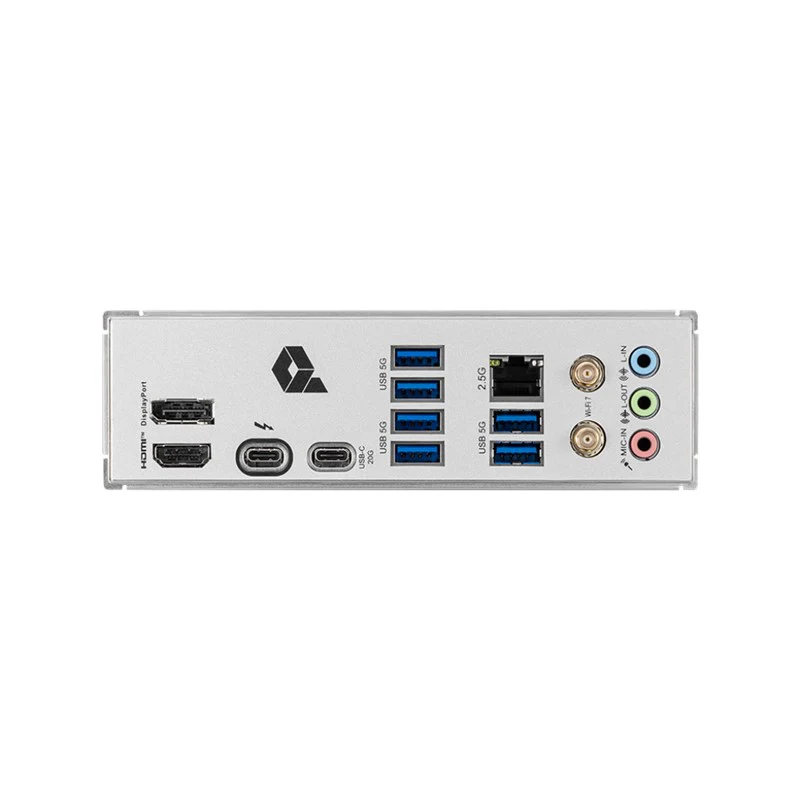

USB

4x USB 2.0 (Front)

6x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 20Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

LAN

Realtek 8125D 2.5Gbps LAN

Internal IO

1x Thunderbolt5 card connector(JTBT5, support RTD3)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

4x System Fan

1x EZ Conn-header (JAF_1)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

LED FEATURE

4x EZ Debug LED

OPERATING SYSTEM

Support for Windows 11 64-bit

PCB Info

ATX

243.84mmx304.8mm
