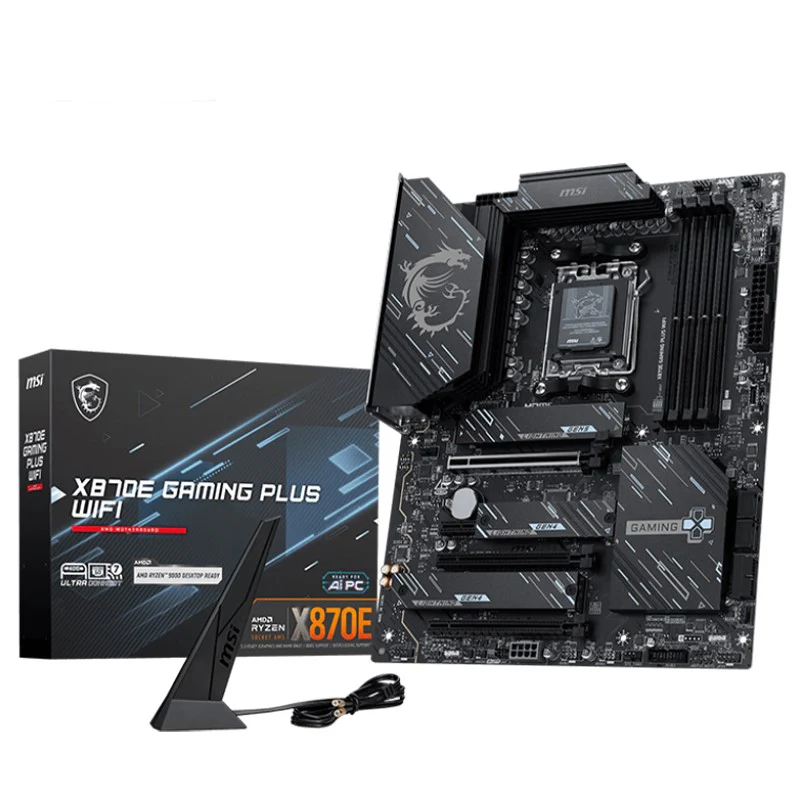

MSI X870E GAMING PLUS WIFI DDR5 Motherboard - Black

MSI X870E GAMING PLUS WIFI DDR5 Motherboard - Black

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

M.2 Shield Froze

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Memory

4x DDR5 UDIMM, Max 256 GB, DDR5 8200–5600 (OC), 5600–4800 (JEDEC), Dual-Channel, Non-ECC

CPU Support

AMD Ryzen 9000 Series

Memory OC

Supports AMD EXPO, Overclocking up to 8200+ MT/s

Onboard Graphics

1x HDMI 2.1 (4K 60Hz), 1x USB4 Type-C DisplayPort 1.4 (4K 120 Hz, CPU iGPU required)

Expansion Slots

3x PCIe x16, 1x PCIe x1; PCIe 5.0/x16 from CPU

Audio

Realtek ALC897, 7.1-Channel HD Audio

Storage

3x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s

RAID Support

SATA: RAID 0/1/10; M.2 NVMe: RAID 0/1/5 (RAID 5: Ryzen 9000 only)

USB Ports

Rear: 4x USB 2.0, 2x USB 5Gbps, 2x USB 10Gbps, 1x USB 20 Gbps, 1x USB 40 Gbps Type-C; Front: 6x USB 2.0, 4x USB 5Gbps, 1x USB 10 Gbps Type-C

LAN

Realtek 8126VB 5 Gbps

Wireless & Bluetooth

Wi-Fi 7, MU-MIMO, 2.4/5/6 GHz up to 5.8 Gbps, Bluetooth 5.4

Internal Connectors

ATX_PWR, CPU_PWR x2, PCIE_PWR 8-pin, 1x CPU Fan, 1x Pump/Fan, 6x System Fan, RGB & Addressable RGB headers, TPM 2.0, Front Panel headers

LED Feature

4x EZ Debug LED, 1x EZ Memory Detection LED

Form Factor

ATX
