Nanoleaf 4D Screen Mirror + LED Light Strip 5.2M Kit For TVs & Monitors Up to 85″ (216cm) - Black
Nanoleaf 4D - TV Screen Mirror + Lightstrip SMK |

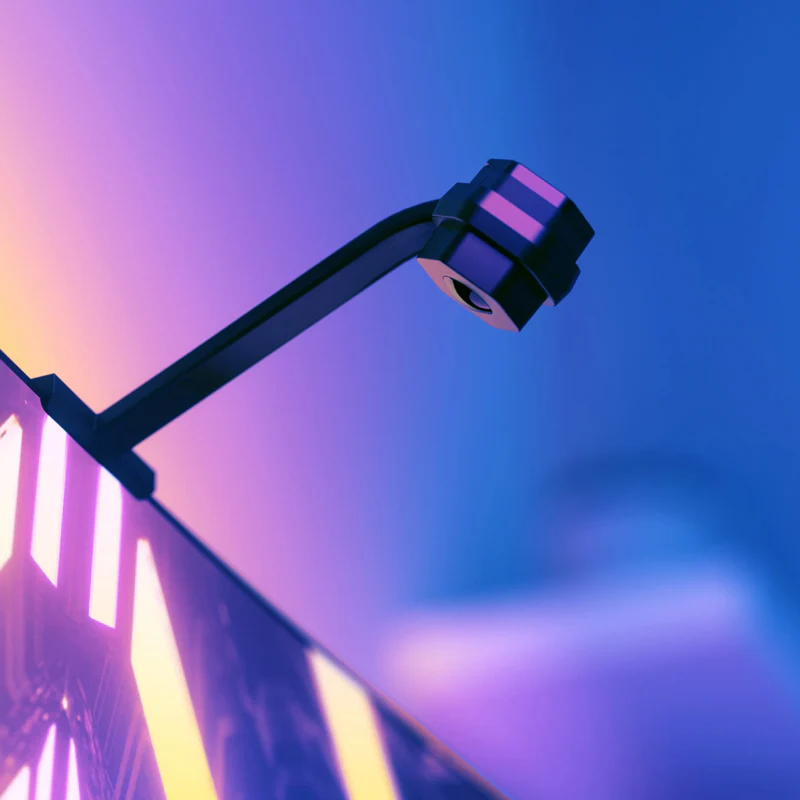

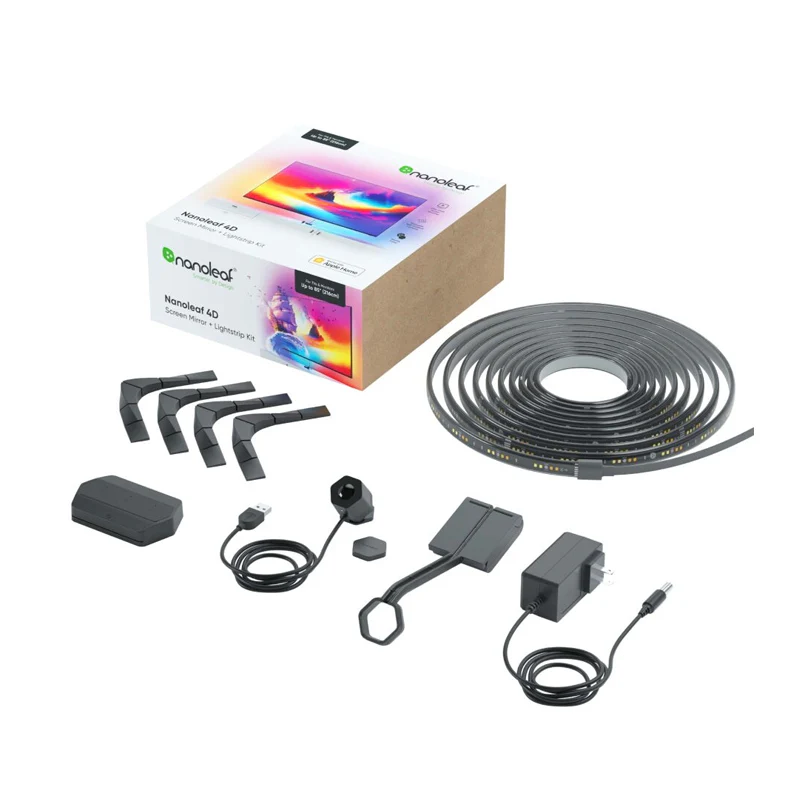

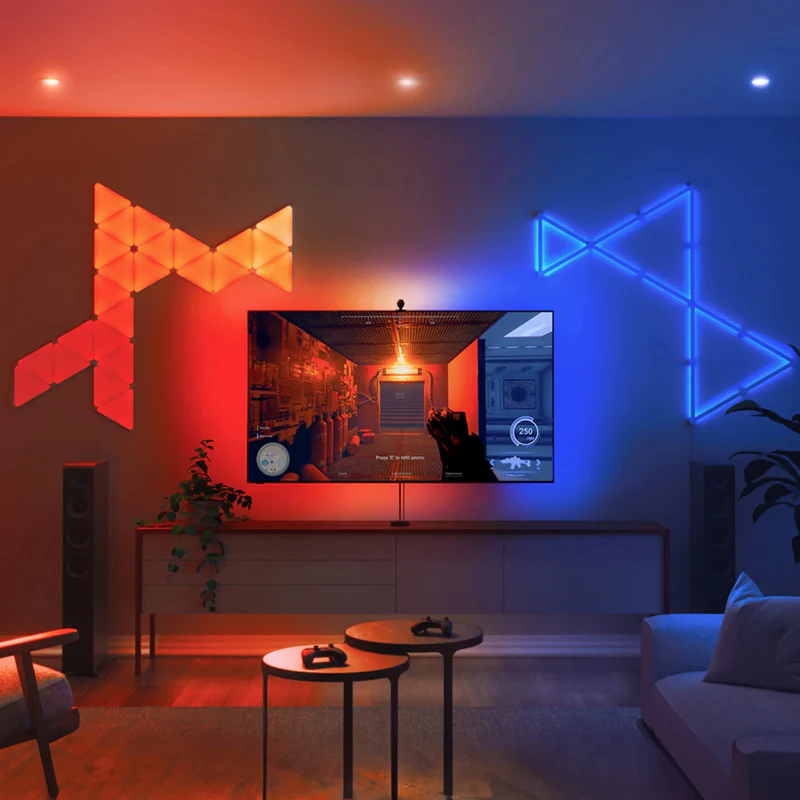

Take your entertainment beyond the screen. Nanoleaf 4D is a screen mirror camera kit that syncs the colors on your screen onto the addressable gradient LED lightstrip mounted behind it. Experience the ultra-immersive ″4D″ effect as the vibrant backlighting illuminates your space with the colors from your favourite shows, movies, and video games. For a levelled-up entertainment experience, enable ″Sync+″ in the Nanoleaf App to extend the screen sync effects across 50+ Nanoleaf RGB lights—like Nanoleaf Shapes, Lines, and Essentials. |
Specification
Dimensions & Weight |
|
Controller |
93.3 mm * 57.1 mm * 17 mm & 66 g |
Lightstrip up to 65" |
12 mm * 4.8 mm @ 4 m & 50 g |
Lightstrip up to 85" |
12 mm * 4.8 mm @5.2 m |
Camera |
31 mm * 28 mm * 34 mm & 60 g |
Mount |
181.2 mm * 56.3 mm * 50 mm |
Corner Brackets |
148.5 mm * 18 mm * 17.9 mm |
Camera Cap |
29.9 mm * 27 mm * 4.6 mm |
Cable Length |
Camera: 1.5 m | Lightstrip: 1 m | PSU: 2 m |
Luminous Flux Per Panel |
275lm |
Lifetime |
25,000 hours |
Communication Protocol |
WiFi (2.4 GHz b/g/n) |
Dimmability |
Yes (via Nanoleaf App, Voice, Controller) |
Mounting Type Camera |
Tape at the bottom of the camera OR via TV mount |
Mounting Type Controller |
Tape at the bottom of the controller |
Mounting Type Lightstrip |
Tape at the back of the Lightstrip |
Nanoleaf App |
Control via the Nanoleaf App (Android & iOS) for mobile/tablet or the Nanoleaf Desktop App (Windows & Mac). |
Compatibility |
Apple Home, Amazon Alexa, Google Home, IFTTT, SmartThings, Razer Chroma |
Usage |
Indoor |
IP Rating |
IP20 |
Colour Channel Configuration |
RGBIC |
Resolution |
30 LEDs per m |
Max Colors |
More than 16 million |
Colour Zones |
10 zones per m |
Input Voltage |
100V-240V |
PSU Output Voltage |
12V2A |
Max Power Supply Power |
24 Watts |
Max Energy Consumption Per metre of LS |
7.2 Watts |
