NZXT Kraken Plus 240 RGB V2, 240mm AIO Liquid CPU Cooler with 1.54" LCD Display

NZXT Kraken Plus 240 RGB V2, 240mm AIO Liquid CPU Cooler with 1.54" LCD Display

Kraken Plus RGB

The Kraken Plus RGB AIO liquid cooler features the custom-designed NZXT Turbine pump, LCD display, and RGB fans for customizable cooling.

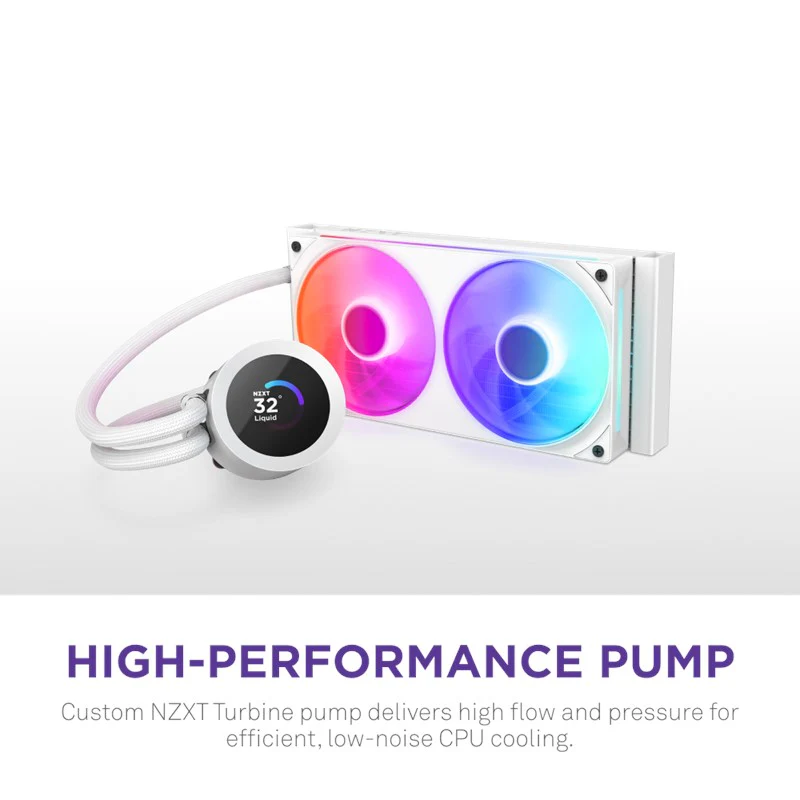

High-Performance Cooling

The NZXT Turbine pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling to keep your CPU performing at its best under heavy workloads.

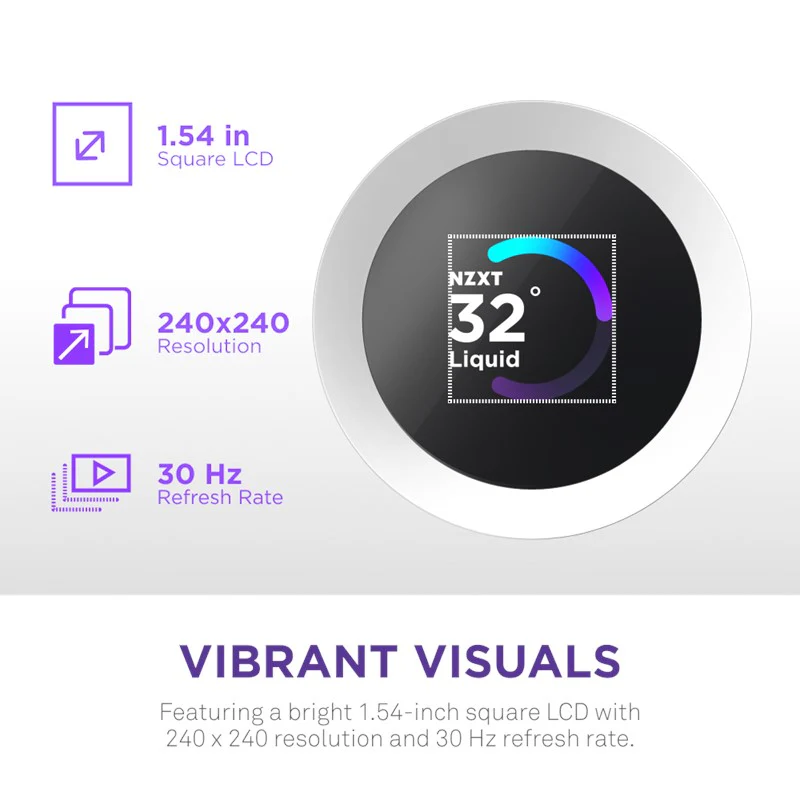

Custom LCD Screen

Display real-time system temps, animated GIFs, custom images, or web integrations like Spotify and YouTube on a bright 1.54" square LCD — fully customizable through NZXT CAM software.

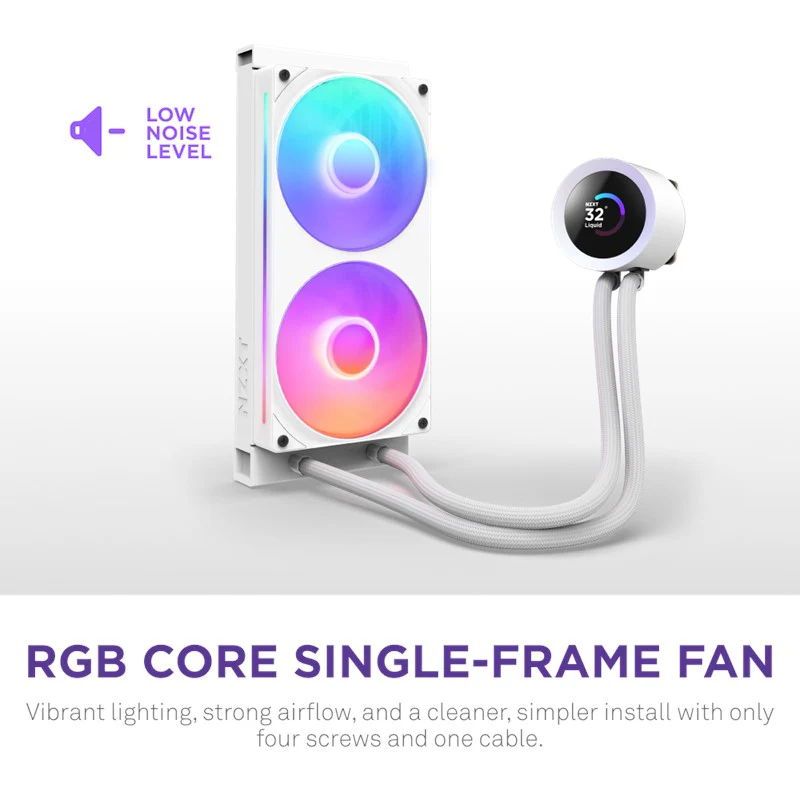

Seamless RGB

The RGB Core single-frame fan delivers strong airflow and vibrant, customizable lighting—plus an easy install with just four screws and a single cable.

Easy Installation

Pre-applied thermal paste and a single breakout cable from the pump cap speed up installation and reduce cable clutter.

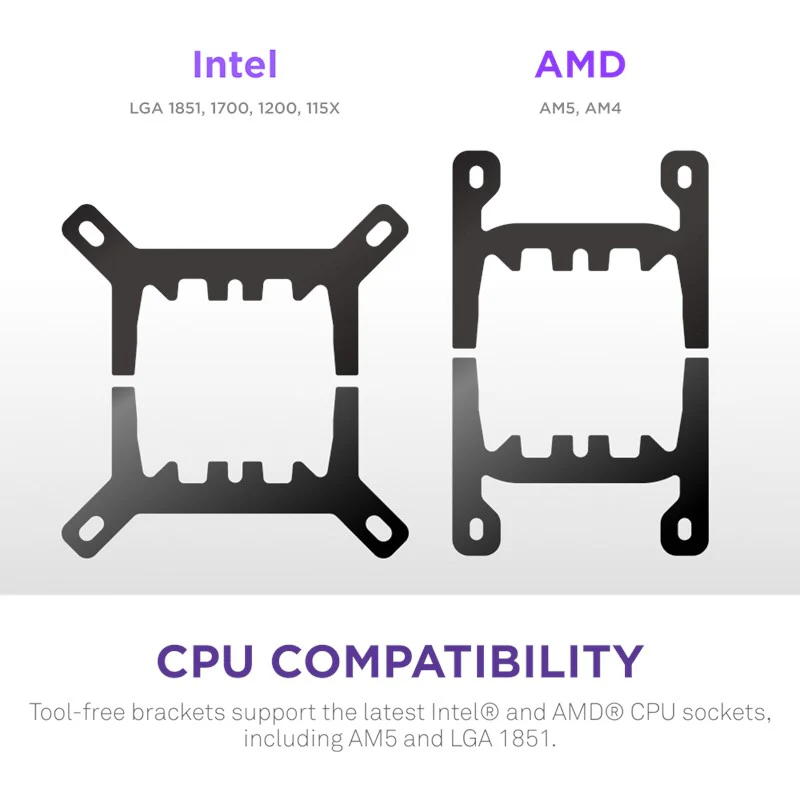

Wide Compatibility

Includes tool-free mounting brackets that support the latest AMD and Intel CPU sockets, including AM5 and LGA 1851.

Durable and Reliable

Reinforced rubber tubing with nylon-braided sleeving ensures long-term durability and easy routing during installation.

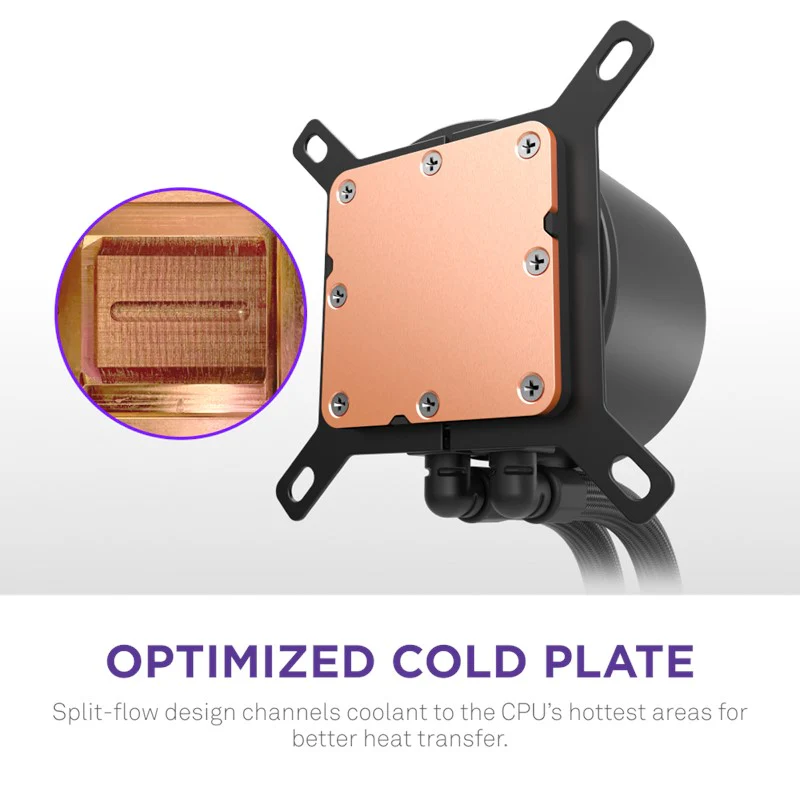

Optimized Cold Plate

The split-flow copper cold plate channels coolant to the CPU’s hottest areas for better heat transfer, lower temps, and more consistent thermal performance.

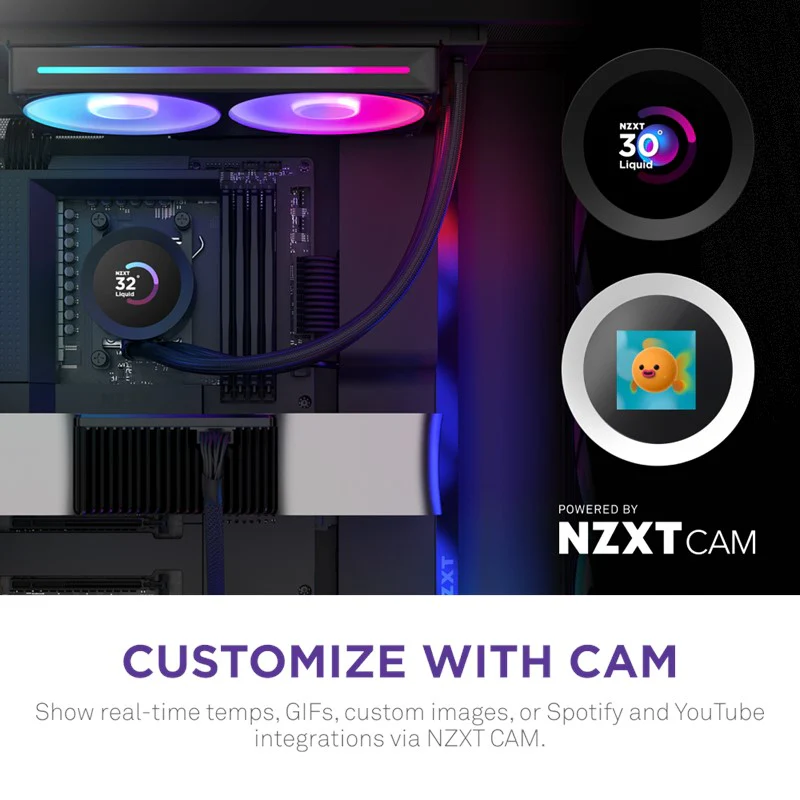

NZXT CAM Software

Use NZXT CAM to monitor temps, customize the LCD display, and control fan and pump speeds — all through an intuitive, easy-to-use interface.

DISPLAY

Panel Type

Transmissive TFT, 262K color

Diagonal

1.54" / 39.1mm

Resolution

240 x 240 px

Refresh Rate

30 Hz

Brightness

300 cd/m²

Colors

18-bit

Orientation

Software adjustable

PUMP

Name

NZXT Turbine

Motor Speed

1,200 – 2,800 ± 300 RPM

Power

12 V DC, 0.3 A

CAP

Diameter

2.87" / 72.95mm

Height

2.2" / 55.97mm

Housing Material

Plastic

COLD PLATE

Dimensions

56 mm x 56 mm

Type

Split flow

Material

Copper

RADIATOR

Dimensions (L x W x H)

281 x 120 x 27 mm

Material

Aluminum

TUBING

Length

400mm

Material

CIIR rubber with Nylon braided sleeve

FAN SPECS

Model

F240 RGB Core (EV) Fan

Speed

500 - 2,400 ± 250 RPM per fan

Airflow

75.05 CFM per fan

Static Pressure

3.07mm-H₂O per fan

Noise Level

31.9 dBA per fan

Power Consumption

12V DC, 0.56 A, 6.72 W | 5V DC, 0.45 A, 2.25 W

Connector

8-pin for PWM & RGB

Bearing

Fluid Dynamic Bearing

Lifespan

60,000 hours

LED Quantity

8 LEDs per fan

Cable Length

600mm

Materials

Plastic, rubber, PCB

SOCKET SUPPORT

Intel

LGA 1851/1700, 1200/115X

AMD

AM5, AM4
