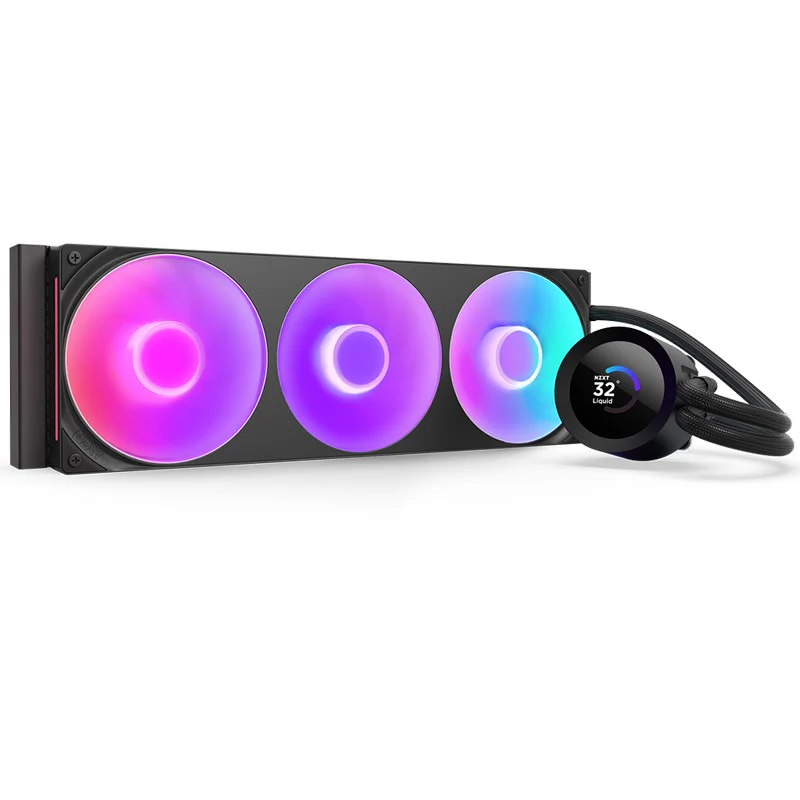

NZXT Kraken Plus 360 RGB V2, 360mm AIO Liquid CPU Cooler with 1.54" LCD Display

NZXT Kraken Plus 360 RGB V2, 360mm AIO Liquid CPU Cooler with 1.54" LCD Display

Smart Cooling. Bold Display.

Kraken Plus delivers powerful CPU cooling, a fully customizable LCD, and easy installation — designed for builders who want both performance and personalization.

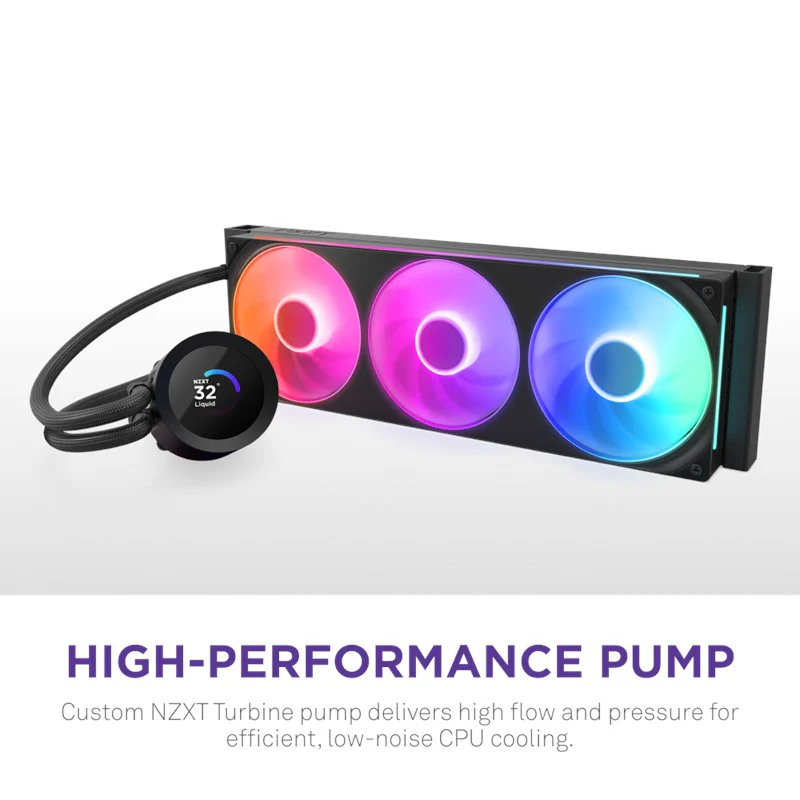

Powered by Turbine

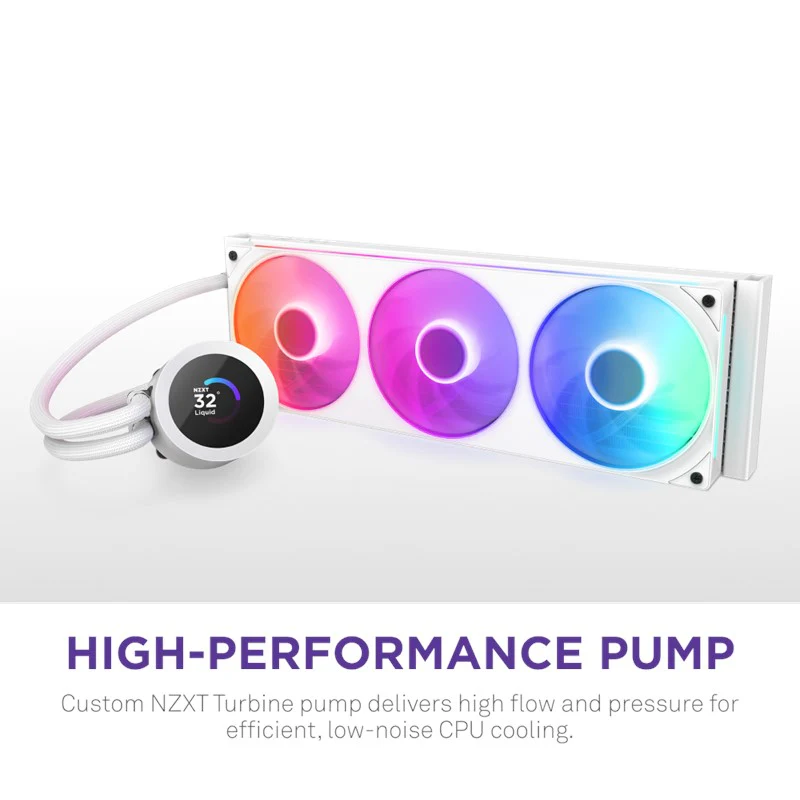

The NZXT Turbine Pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling that keeps up with demanding workloads.

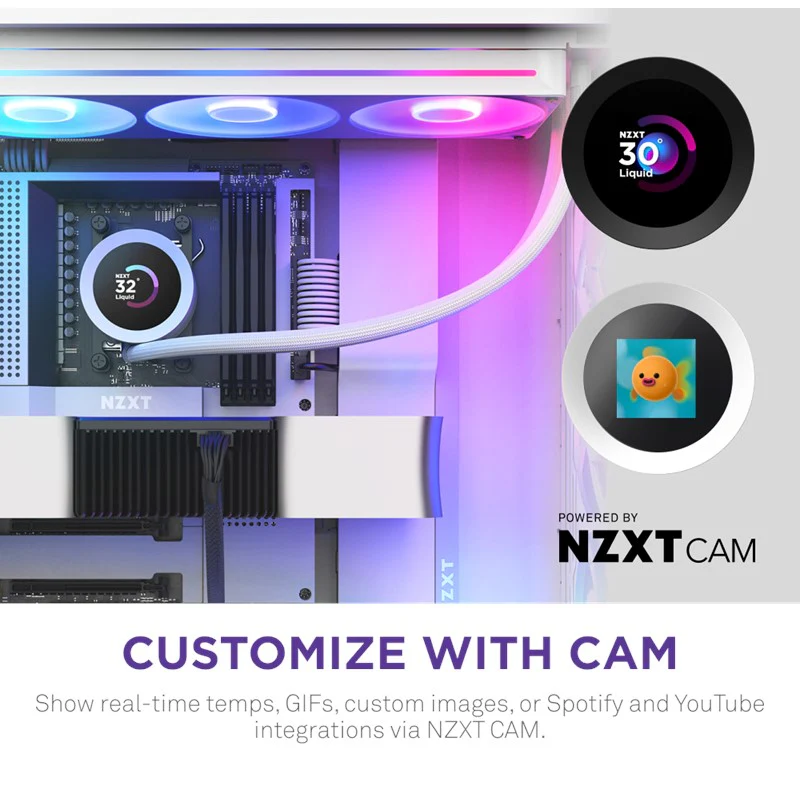

Personalization on Display

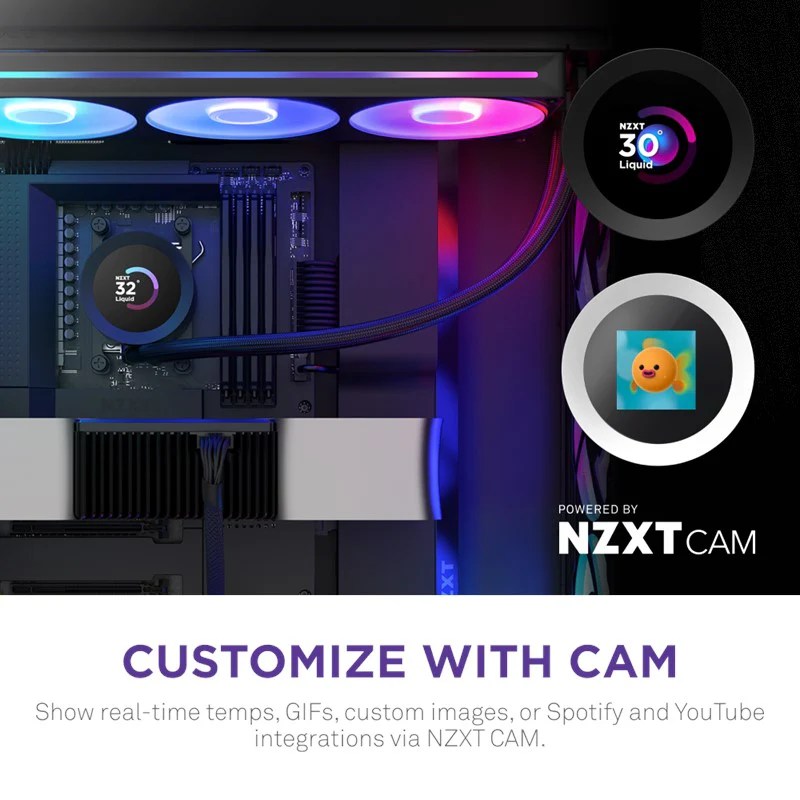

Show real-time temps, custom images, GIFs, and web integrations like Spotify and YouTube — all on a vibrant 1.54-inch square LCD, fully controlled through NZXT CAM.

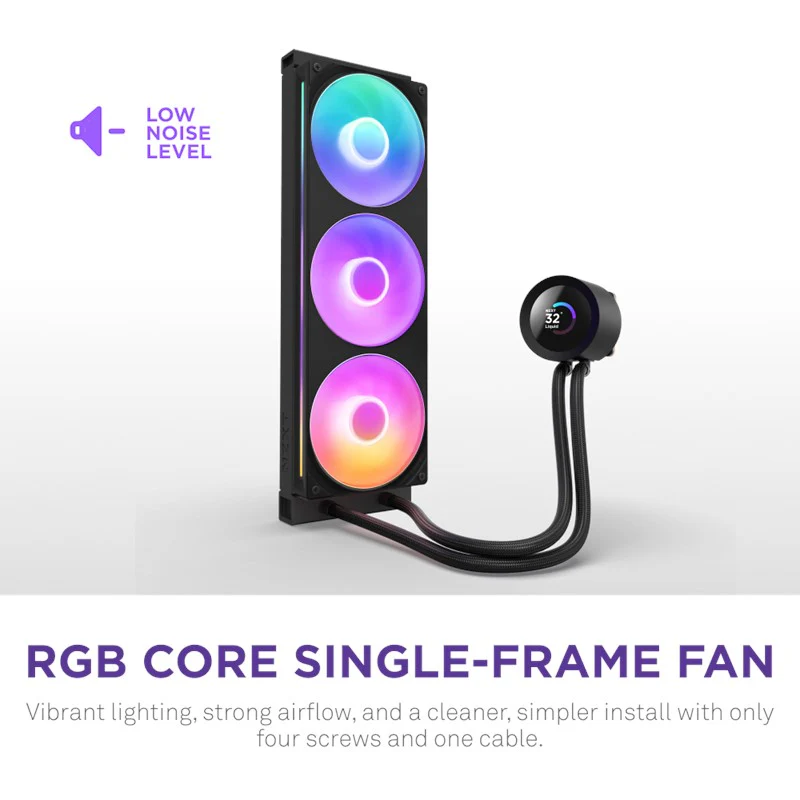

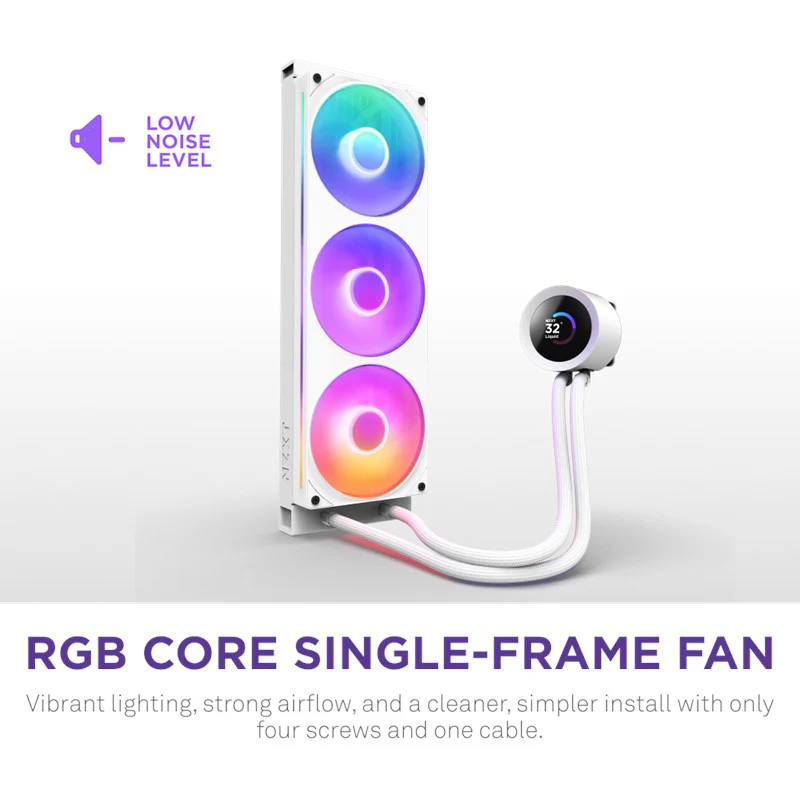

Seamless RGB

The RGB Core single-frame fan delivers strong airflow and vibrant, customizable lighting—plus an easy install with just four screws and a single cable.

Streamlined Cabling

Integrated fan control in the pump cap and a single breakout cable help reduce clutter and make installation faster.

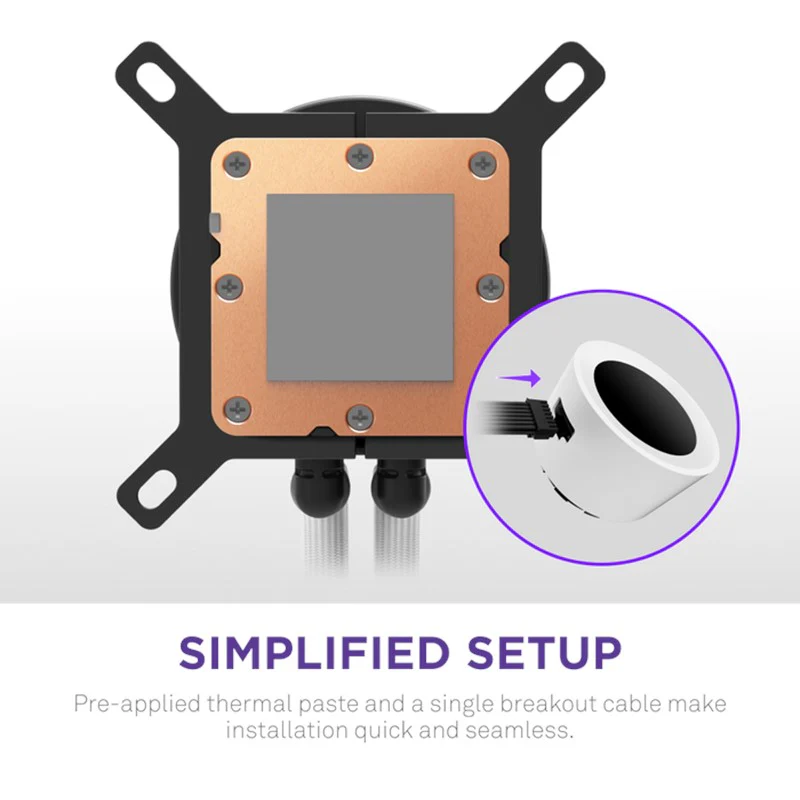

Ready to Install

Pre-applied thermal paste for faster setup and efficient heat transfer.

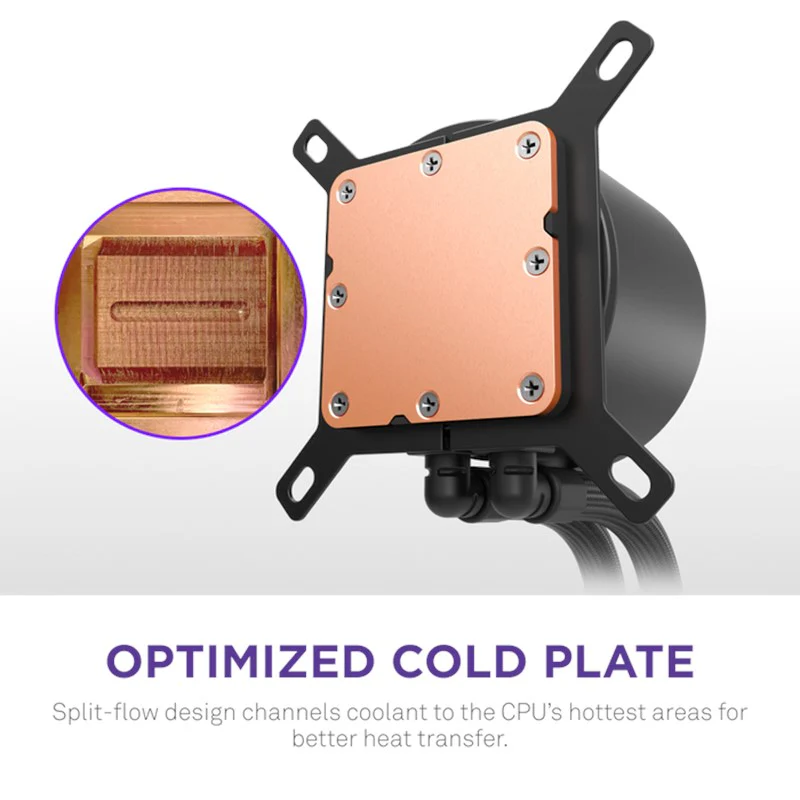

Optimized Cold Plate

Split-flow design channels coolant to the hottest areas for effective cooling.

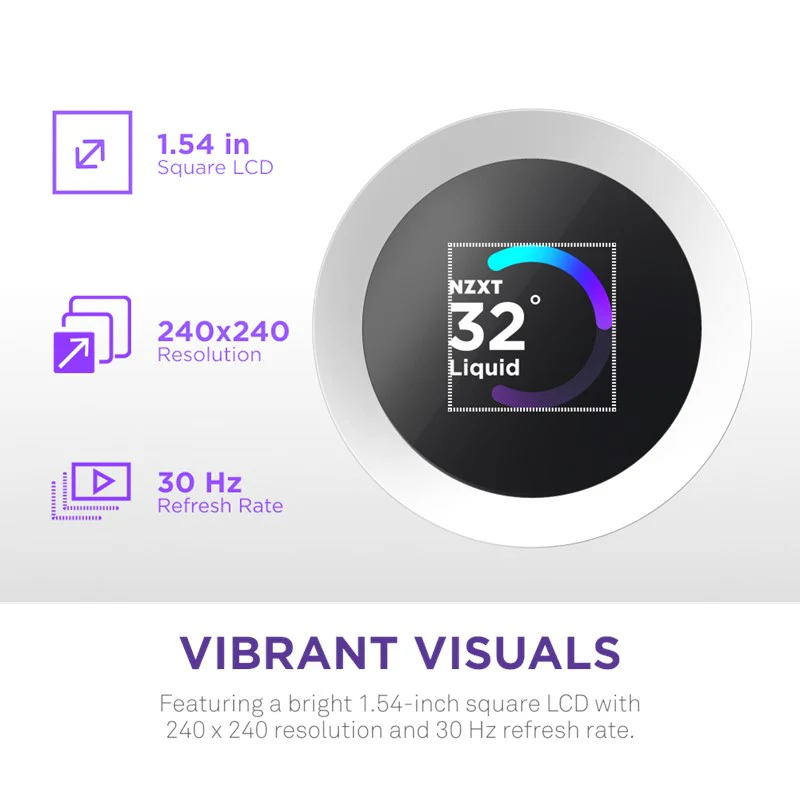

DISPLAY

Panel Type

Transmissive TFT, 262K color

Diagonal

1.54" / 39.1mm

Resolution

240 x 240 px

Refresh Rate

30 Hz

Brightness

300 cd/m²

Colors

18-bit

Orientation

Software adjustable

PUMP

Name

NZXT Turbine

Motor Speed

1,200 – 2,800 ± 300 RPM

Power

12 V DC, 0.3 A

CAP

Diameter

2.87" / 72.95mm

Height

2.2" / 55.97mm

Housing Material

Plastic

COLD PLATE

Dimensions

56mm x 56mm

Type

Split flow

Material

Copper

RADIATOR

Dimensions (L x W x H)

401 x 120 x 27mm

Material

Aluminum

TUBING

Length

420mm

Material

CIIR rubber with Nylon braided sleeve

FAN SPECS

Model

F360 RGB Core (EV) Fan

Speed

500 - 2,400 ± 250 RPM per fan

Airflow

75.05 CFM per fan

Static Pressure

3.07 mm-H₂O per fan

Noise Level

31.9 dBA per fan

Power Consumption

12V DC, 0.79 A, 9.48 W | 5V DC, 0.81 A, 4.05 W

Connector

8-pin for PWM & RGB

Bearing

Fluid Dynamic Bearing

Lifespan

60,000 hours

LED Quantity

8 LEDs per fan

Cable Length

600mm

Materials

Plastic, rubber, PCB

SOCKET SUPPORT

Intel

LGA 1851/1700, 1200/115X

AMD

AM5, AM4
