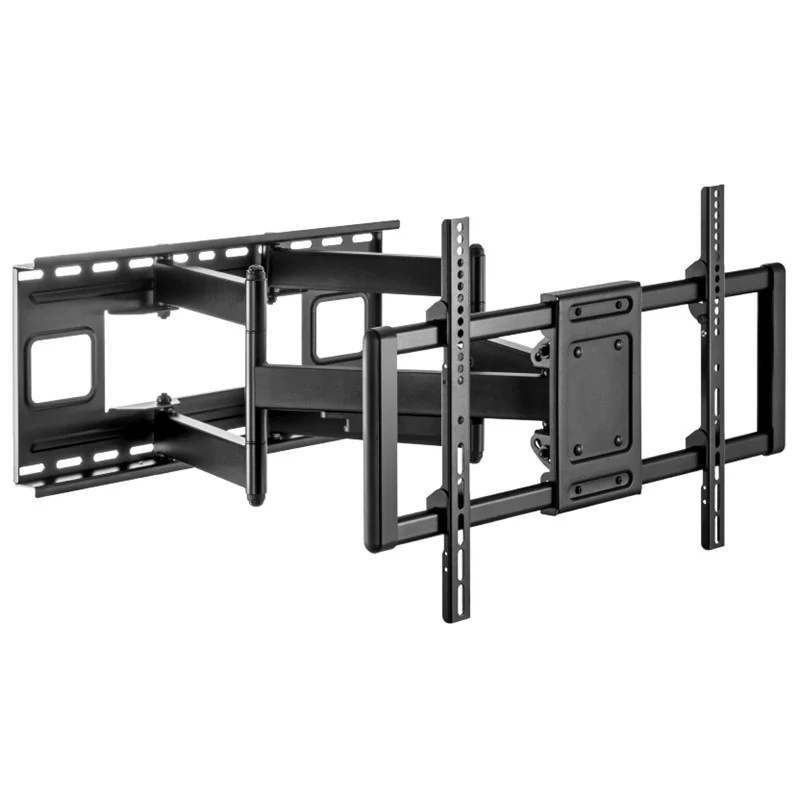

Orca Heavy Duty Full Motion TV Wall Mount For 43"-90", LPA77-466

Orca Heavy Duty Full Motion TV Wall Mount For 43"-90", LPA77-466

Heavy-duty arms provide strong support for larger and heavier TVs up to 120kg, it basically holds all types of TVs from 43”-90”.

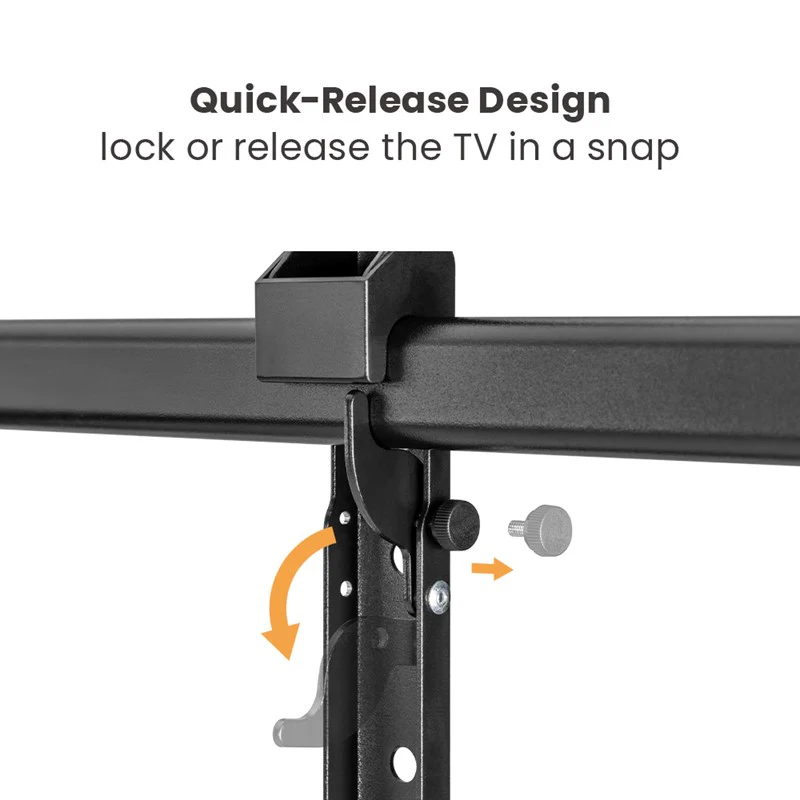

TV installation and removal are made easy through a unique quick-release mechanism.

Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.

Product Type

Full-motion TV Wall Mount

Material

Steel

Metal Sheet Thickness

Bracket Arm THK=1.5mm cold-rolled sheet,

VESA Panel THK=2mm cold-rolled sheet,

Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,

VESA Panel THK=0.079" cold-rolled sheet,

Wall Plate THK=0.12" pickling sheet)

Pipe Size

50x25x1.5mm Square Steel Tube (2"x0.98"x0.059" Square Steel Tube)

Surface Finish

Powder Coating

Color

Fine Texture Black

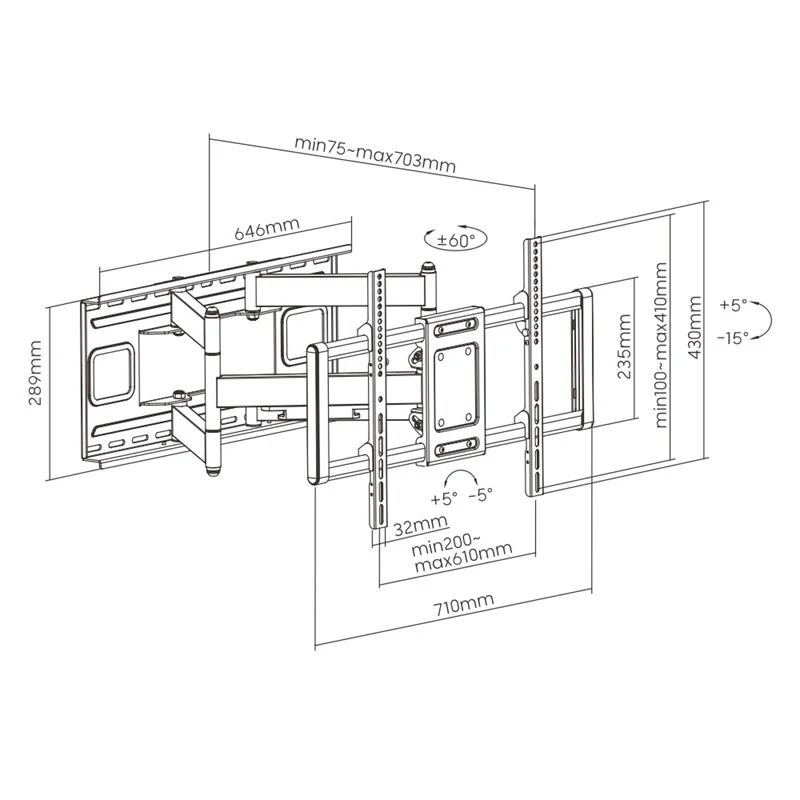

Dimensions

703x710x430mm (27.7"x28"x16.9")

Fit Screen Size

43"-90"

Fit Curved TV

Yes

Mounting Hole Pattern

VESA Only

VESA Compatible

200x200,300x200,400x200,

300x300,400x300,400x400,600x400

Max. Mounting Hole:

610x410

Weight Capacity

120kg (264lbs)

Strength Tested

4 Times Approved

Profile

75~703mm (3"~27.7")

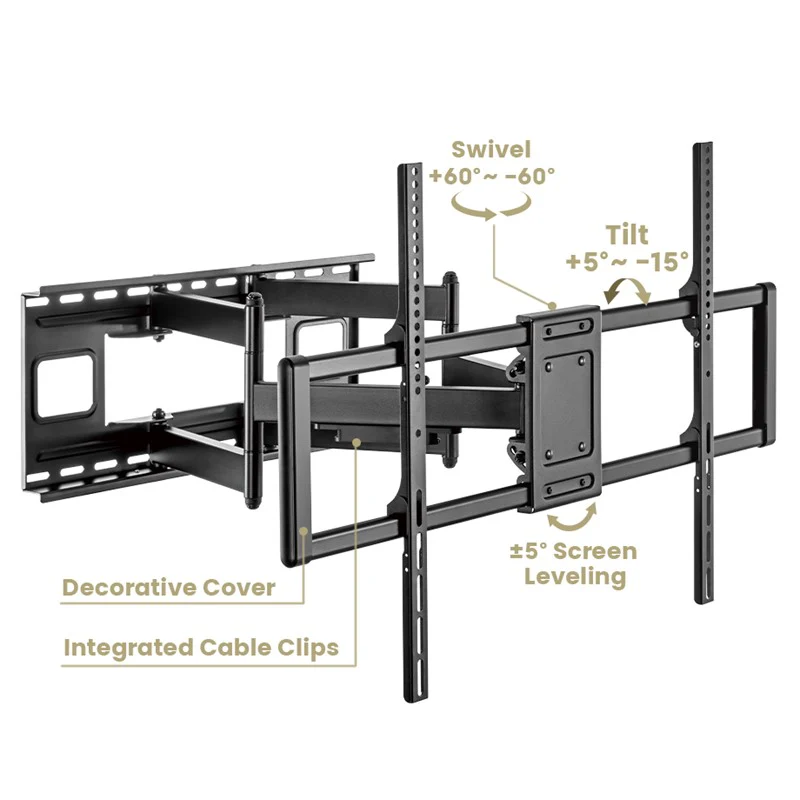

Screen Freely Tilting

Yes

Installation

Solid Wall,Double Stud(406mm/450mm/600mm)
