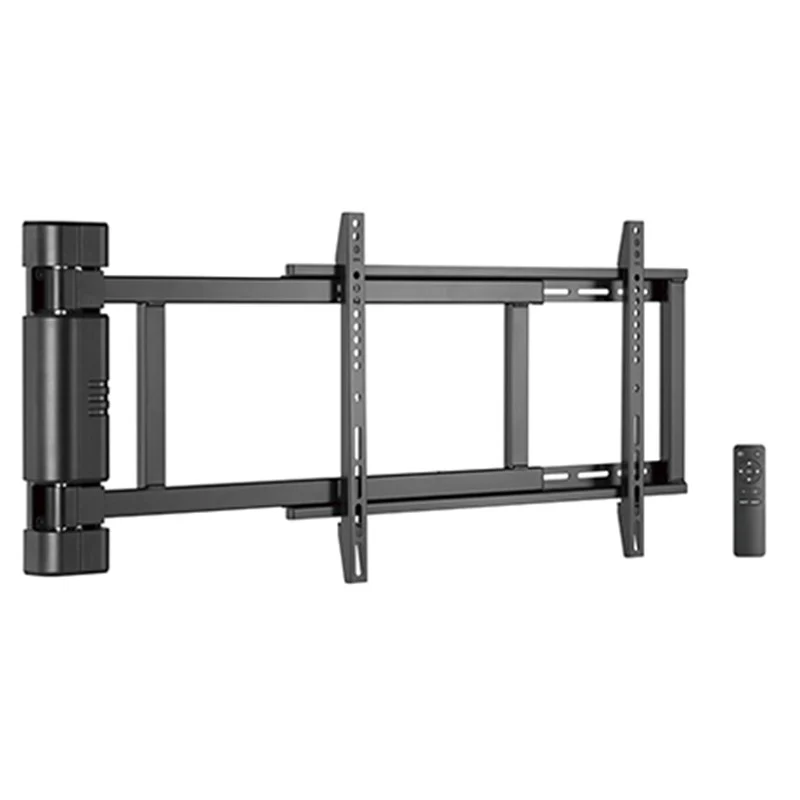

Orca Movable Wall Bracket for 32"-75" TVs

Orca Movable Wall Bracket for 32"-75" TVs

Find the perfect viewing angle with one simple press.

LUMI’s PLB-M06 Motorized Swing TV Mount is designed for most 32'' -75'' TVs up to 50kg/110lbs.

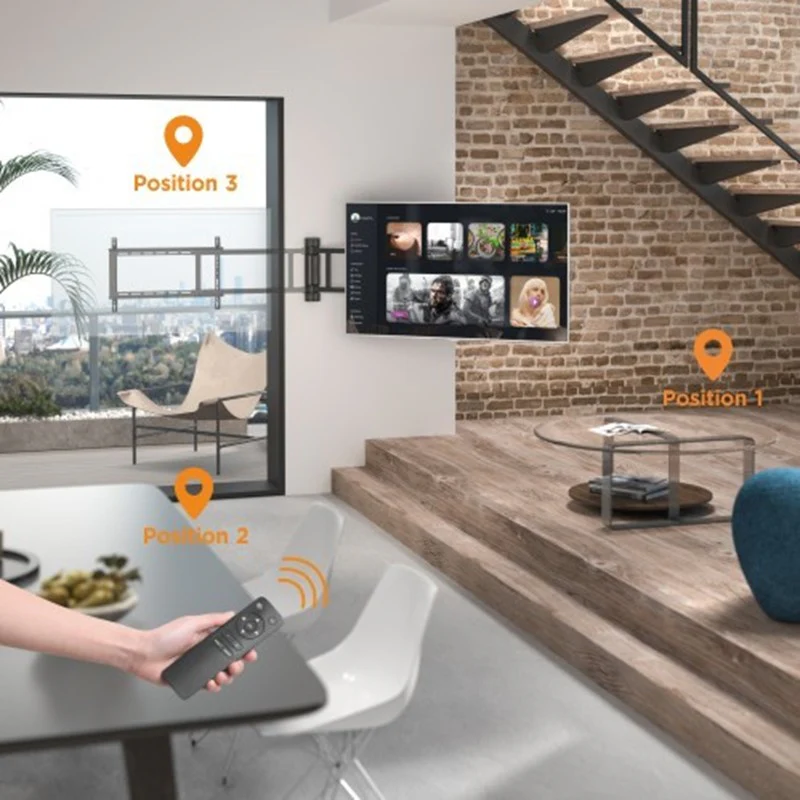

This mount can move your TV up to 170 degrees, you can choose your favorite positions without leaving your seat, finding the perfect viewing angle.

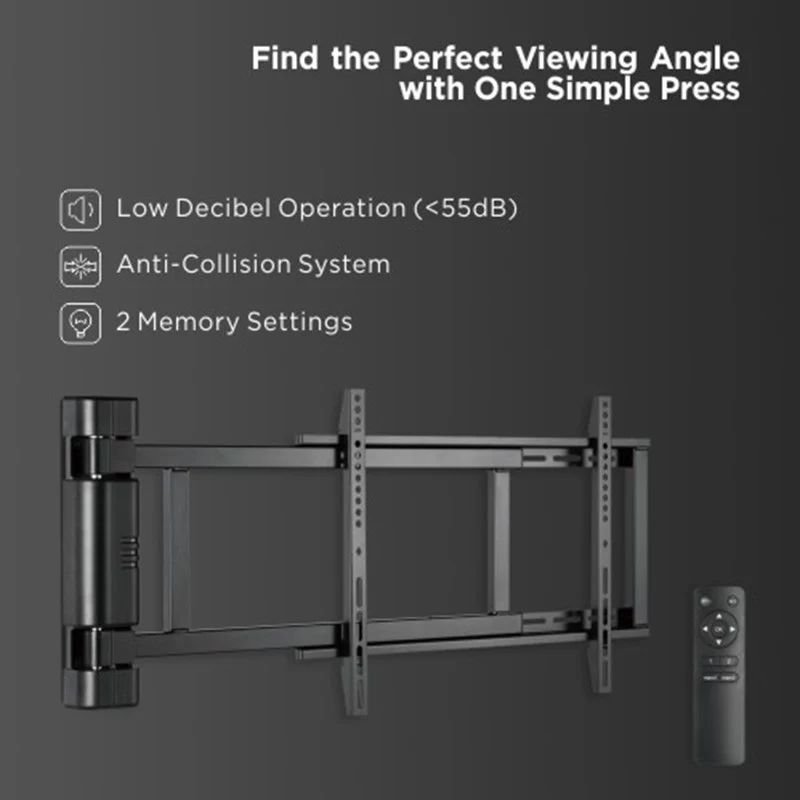

A quiet motorized mechanism provides smooth positioning and motion. Collision avoidance system safeguards against accidents and injuries.

Slim design sits just 56mm from wall. Cable management keeps everything organized

Product Type

Motorized TV Wall Mount

Rank

Standard

Material

Steel,Aluminum,Plastic

Metal Sheet Thickness

Bracket Arm THK=1.5mm cold-rolled sheet,

Wall Plate THK=4.0mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,

Wall Plate THK=0.16" pickling sheet)

Pipe Size

30x15x1.5mm Square Steel Tube,

30x20x1.5mm Square Steel Tube (1.2"x0.59"x0.059" Square Steel Tube,

1.2"x0.79"x0.059" Square Steel Tube)

Surface Finish

Powder Coating

Dimensions

56x1220x430mm (2.2"x48"x16.9")

Fit Screen Size

32"-75"

Fit Curved TV

Yes

Mounting Hole Pattern:

VESA & Universal

VESA Compatible

200x200,200x300,300x200,200x400,

400x200,300x300,300x400,400x300,

600x200,400x400,600x300,600x400

Max. Mounting Hole:

600x400

Weight Capacity

50kg (110lbs)

Strength Tested

3 Times Approved

Profile

Min.56mm (Min.2.2")

Swivel Range

0°~+170°

Installation

Solid Wall,Single Stud

Panel Type

Detachable Panel

Wall Plate Type:

Fixed Wall Plate

Direction Indicator

Yes

Cable Management:

Yes

Power Supply

Input:AC 100~240V,50/60Hz;Output:DC 12V, 1A
