Ryzen 9 Gaming PC, Ryzen 9 9900X, RTX 5070 Ti 16GB, Windows 11 PRO

Cooler Master MasterBox 540 ARGB Ether Front Panel ATX Mid Tower Gaming Case

Game In a New Light

A vivid, iridescent design spans the entire front panel of the MasterBox 540. Customizable ARGB strips radiate behind the transparent façade for a stunning display of light.The ARGB strips can be set to match the colour scheme of the system inside with an included controller, and will also sync to the motherboard for a limitless potential for customization.

(Discover all Customized Gaming PC and Bundles for Gaming PC)

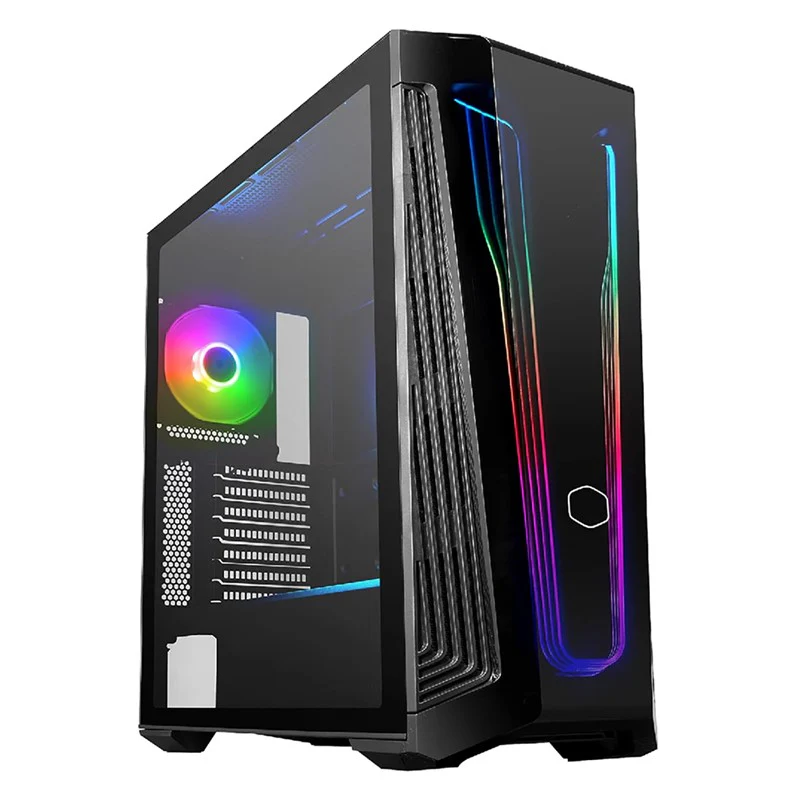

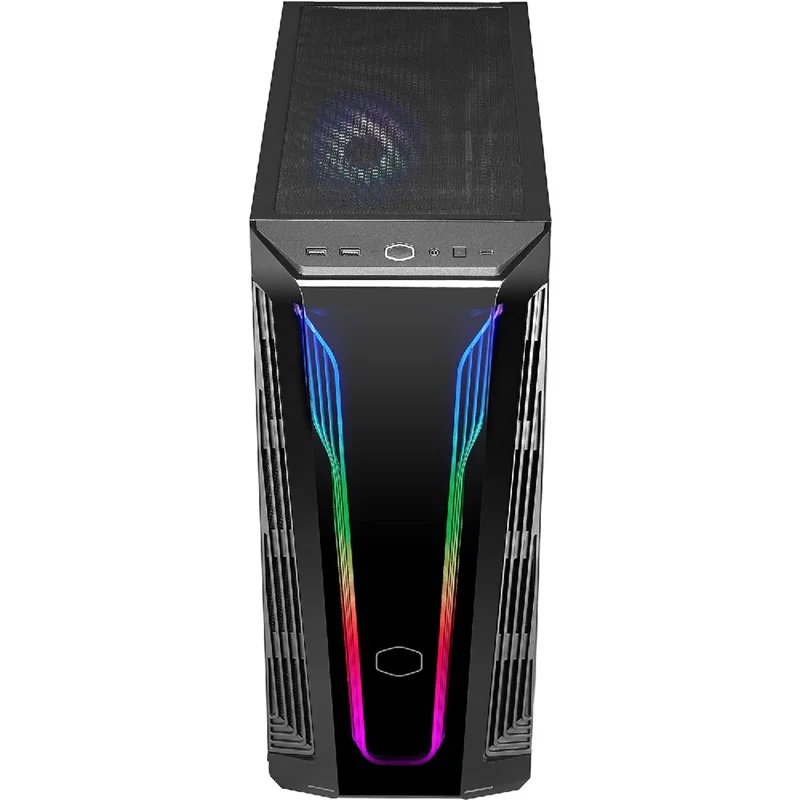

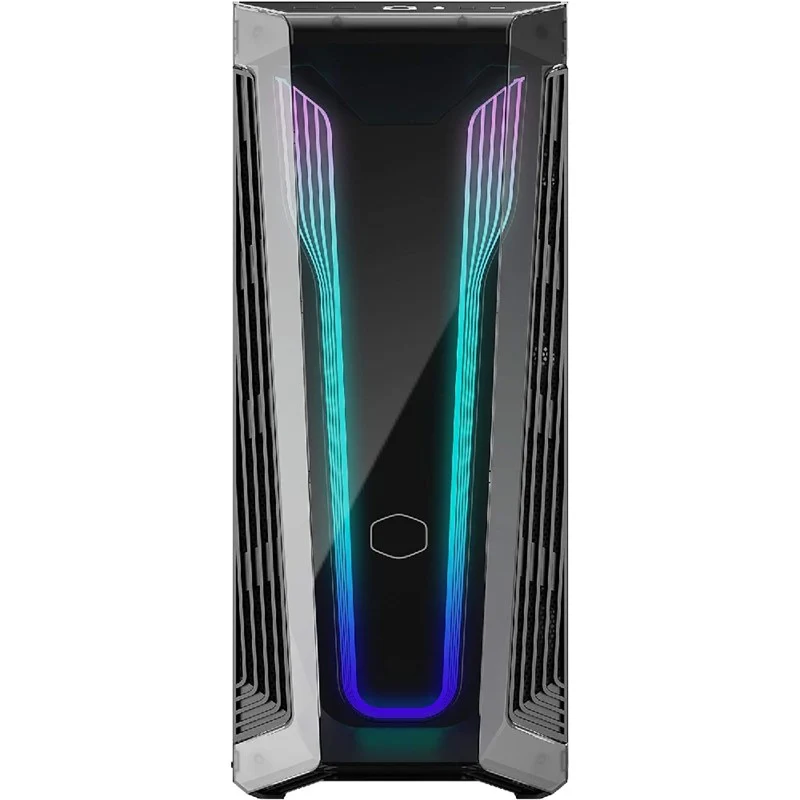

ARGB Ether Front Panel

Inspired by the design of automotive lighting, the front panel houses ARGB lighting strips paired with a front diffuser.

This design element is powered by a pogo pin connector and fused to the DarkMirror finish of the façade, delivering a unique twist on conventional illumination.

Removable Top Panel

The top panel is entirely removable for improved access to the components during assembly.

Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

Versatile Cooling Options

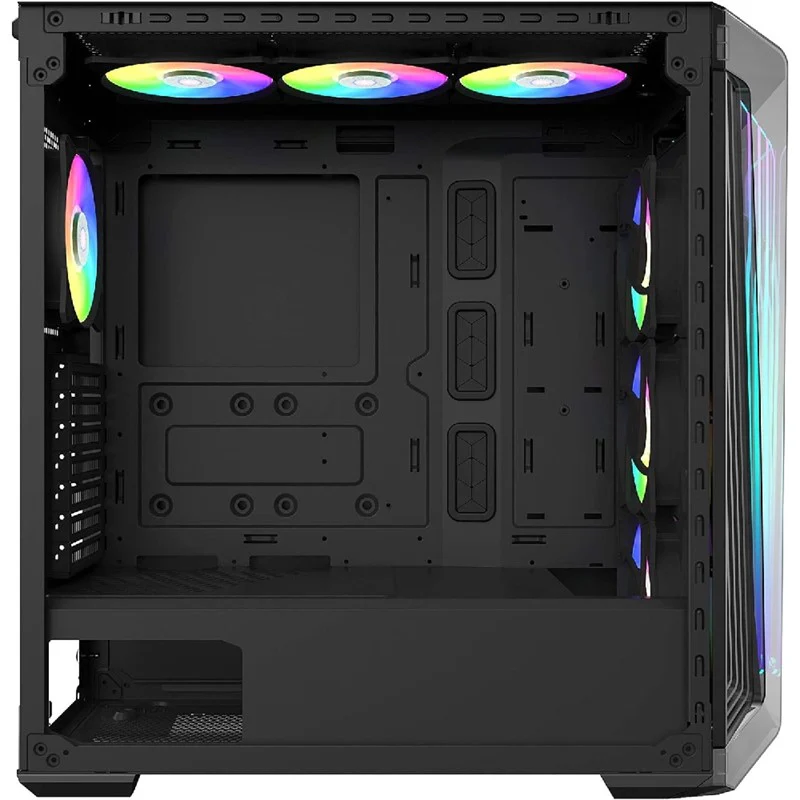

Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

Room For Upgrades

Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.

What are the benefits of Cooler Master MasterBox 540 ARGB Ether Front Panel ATX Mid Tower Gaming Case ?

Standout ARGB Style: Iridescent Ether front panel delivers bold, customizable lighting.

Easy Customization: Syncs with your motherboard or included controller.

Effortless Building: Removable top panel simplifies installation and upgrades.

High Cooling Potential: Supports multiple fans and dual 360mm radiators.

Future-Ready Space: Fits large GPUs, CPU coolers, and PSUs for easy upgrades.

Color

Black

Material

Materials - Exterior Steel, Mesh, Plastic

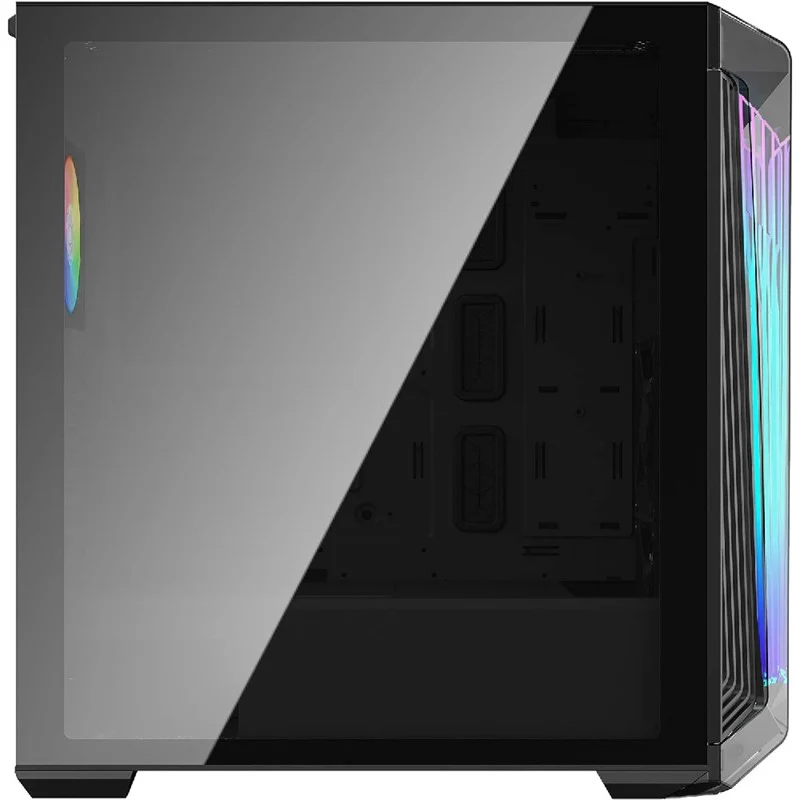

Materials - Left Side Panel Tempered Glass

Dimensions

Dimensions (L x W x H) 499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions)

Volume

51.87L (exlc. Protrusions)

Motherboard Support

Mini-ITX, Micro-ATX, ATX, E-ATX (up to 12" x 10.7" motherboards, may impact cable management feature)

Expansion Slots

7

5.25" Drive Bays

0

2.5" / 3.5" Drive Bays (Combo)

2

2.5" Drive Bays

4

I/O Panel

I/O Panel - USB Ports 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C

I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)

I/O Panel - Other 1x Reset/ARGB button

Pre-installed Fans

Pre-installed Fans - TopN/A

Pre-installed Fans - FrontN/A

Pre-installed Fans - Rear1x 120mm 650~1800RPM SickleFlow PWM ARGB

Fan Support - Top 3x 120mm / 2x 140mm

Fan Support - Front 3x 120mm / 2x 140mm

Fan Support - Rear 1x 120mm

Radiator Support

Radiator Support - Top120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)

Radiator Support - Front120 / 140 / 240 / 280 / 360mm

Radiator Support - Rear120mm

Clearance

Clearance - CPU Cooler165mm/6.49"

Clearance - PSU180mm / 7.08" (295mm / 11.61" with HDD cage removed)

Clearance - GFX410mm/16.1"

Dust Filters Front, Top, Bottom

Power Supply Support

 ATX
