SanDisk Professional 36 TB G-RAID Mirror 2-Bay RAID Thunderbolt 3 Array (2 x 18 TB)

SanDisk Professional 36 TB G-RAID Mirror 2-Bay RAID Thunderbolt 3 Array (2 x 18 TB)

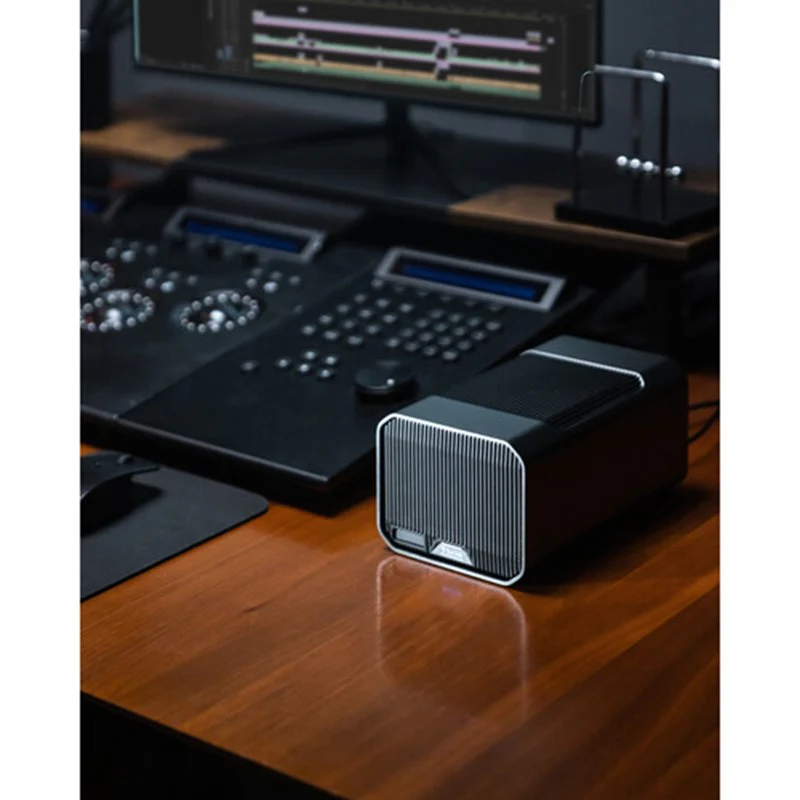

G-RAID Mirror

Take on large, challenging projects with added peace of mind by including the 36 TB G-RAID Mirror 2-Bay Thunderbolt 3 RAID Array from SanDisk Professional in your creative workflow. With its hardware controller and PRO-BLADE SSD Mag slot, this versatile array reliably stores your data while offering high speed and capacity.

Reliable Data Storage

Inside the stylish enclosure are two 18 TB 3.5" Ultrastar Enterprise Class 7200 RPM hard drives that are preformatted APFS for macOS 11 or later and may be reformatted for Windows 10 or later. It also works well with iPadOS 14 and later. Delivering the reliability needed for backing up massive files, the G-RAID MIRROR is preconfigured as RAID 1, which simultaneously creates a 1:1 copy of your data on both drives. That way, you'll have a backup if one drive should fail. However, this also means that you can only work with half the capacity of the array while read and write speeds reach up to 260 MB/s and 250 MB/s, respectively.

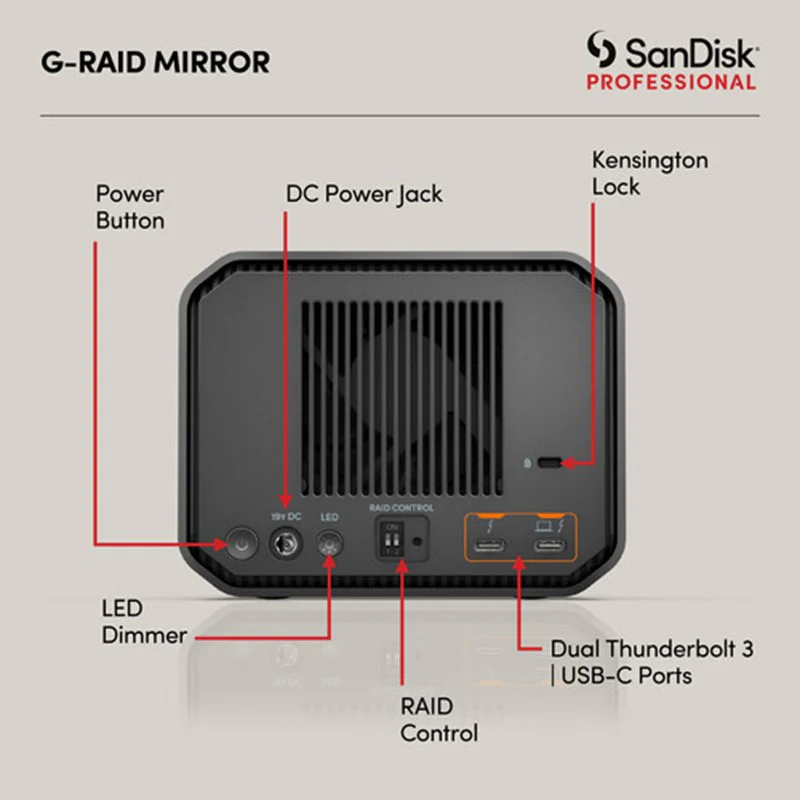

If you prefer to work with content directly from the G-RAID Mirror, the hardware-based controller lets you change to RAID 0 mode by flipping the DIP switches located on the rear of the enclosure. Doing so combines both disks into a single volume and splits the data between them, giving you access to the full 36 TB capacity while boosting the read performance to up to 510 MB/s. But be aware that changing modes will erase the data from the drives.

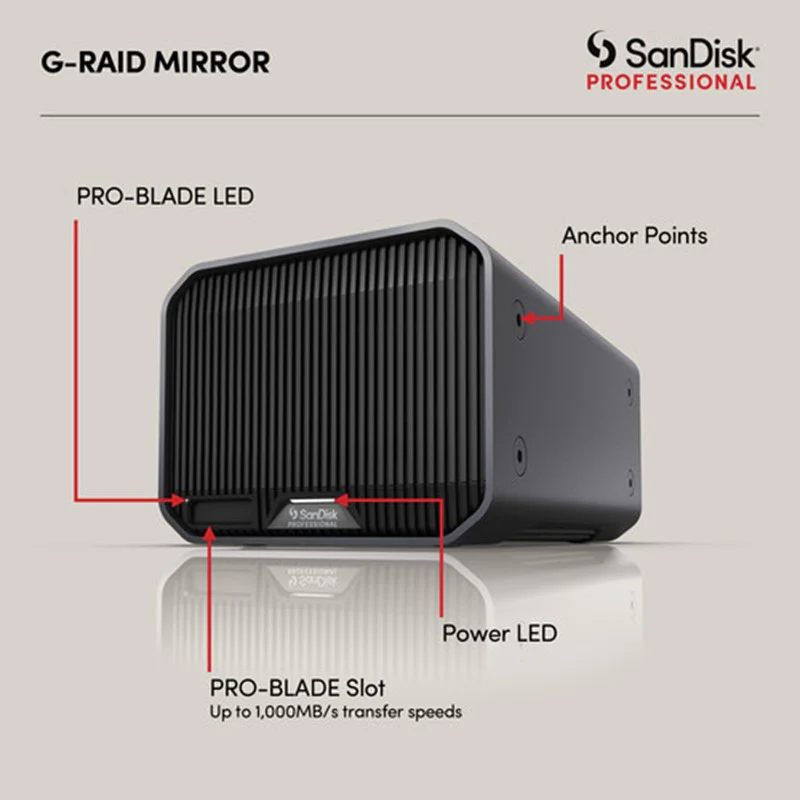

Adding a PRO-BLADE SSD Mag

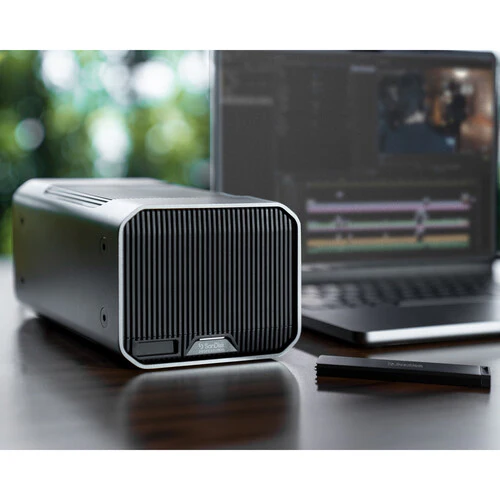

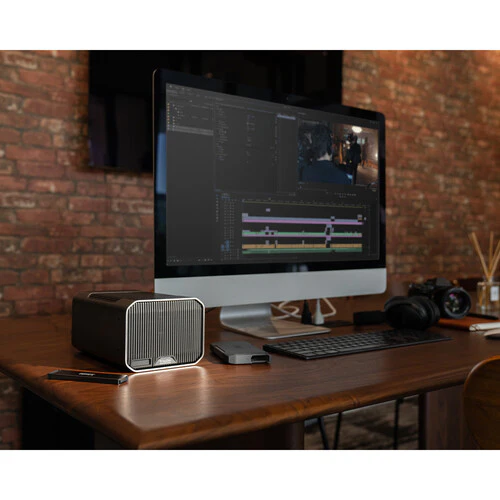

A dedicated slot allows you to insert a separately purchased PRO-BLADE SSD Mag drive to add storage and transfer data to and from the G-RAID Mirror without increasing its footprint or having to connect a second device to your computer. You can also work with files directly from the PRO-BLADE SSD Mag at speeds of up to 1000 MB/s.

Dual Thunderbolt 3 connectors are available, each providing up to 40 GB/s transfer speeds with compatible devices. So, copying 300 GB of footage would take about a minute. The second port allows you to daisy chain up to five Thunderbolt 3 devices such as additional storage drives and 4K monitors, to enhance your workflow significantly.

A Streamlined Workflow

The included color-coded Thunderbolt 3 cable helps to keep your workspace organized. Additionally, the G-RAID Mirror's durable Space Grey Aluminum construction works with the cooling fan to quickly dissipate heat and maintain optimal performance with demanding workloads.

Drives

Storage Capacity

36 TB

Included Drives

2x 18 TB SATA III 3.5" HDD

RAID

Yes: Supported RAID Modes: 5 / 0 / JBOD (Preconfigured in RAID 0)

Transfer Rates

260 MB/s (Read in RAID 1)

250 MB/s (Write in RAID 1)

510 MB/s (Read in RAID 0)

General

Number of Bays

2x 3.5" SATA III

1x Proprietary

Inputs/Outputs

2x USB-C Thunderbolt 3 (40 Gb/s)

Media Card Slots

No

Software

OS Compatibility

macOS 11 or Later

Windows 10 or Later

Default OS Support

macOS

Security

Encryption

No

Security Features

Kensington Security Slot

Physical

Certifications

No

Cooling

1x Fan

Material of Construction

Aluminum, Plastic

Dimensions

8.3 x 5.2 x 4.1" / 210 x 133 x 103 mm

Weight

6.9 lb / 3.1 kg
