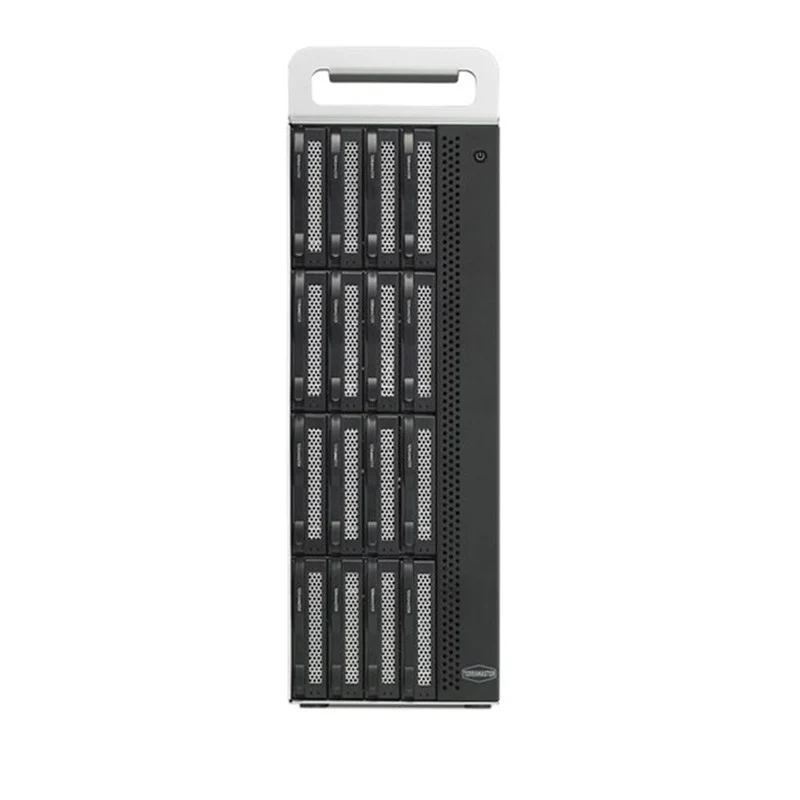

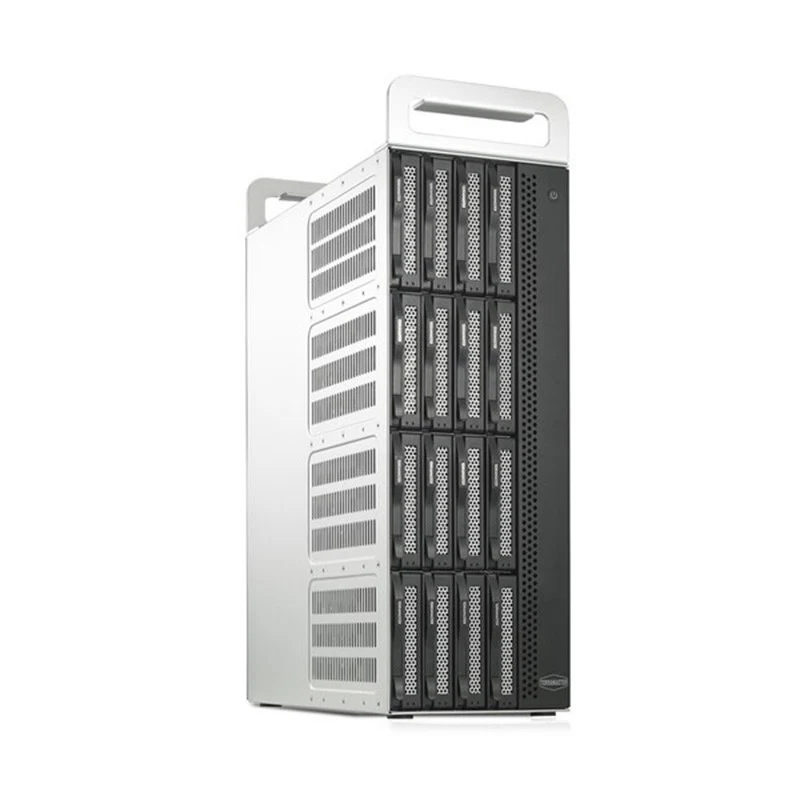

TerraMaster D16 Thunderbolt 3 Professional 16-Bay RAID Enclosure

TerraMaster D16 Thunderbolt 3 16-Bay Professional RAID Enclosure

Drawing on a pair of Thunderbolt 3 interfaces (40 Gbps) and a hardware RAID controller, the TerraMaster D16 Thunderbolt 3 16-Bay RAID Array delivers transfer speeds up to 2817 MB/s under RAID 0 array mode.

Under RAID 6, the device can achieve speeds up to 2480 MB/s.

Cut down on time needed for virtually every aspect of the post-production workflow when using the D16 Thunderbolt 3.

At lightning speed, users can transfer several hours of footage from a Blackmagic device to Adobe Premiere Pro. In turn, with uncompressed HD 10-bit and 12-bit video, users can edit ProRes 422 (HQ), ProRes 4444 XQ, and other data streams.

Plus, thumbnails and preview rendering are more responsive when using large items with numerous high-definition clips.

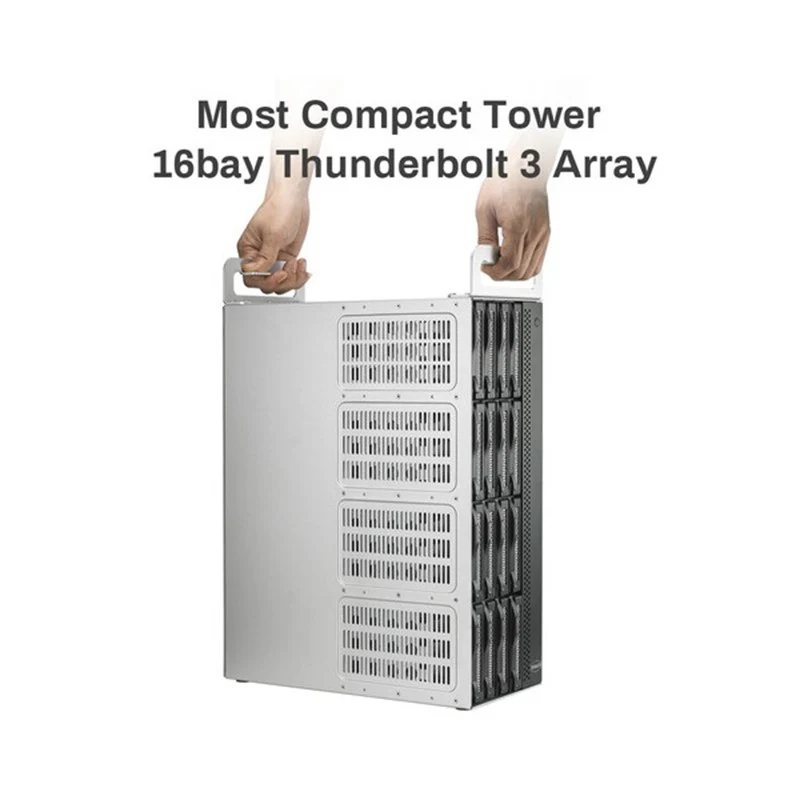

The D16 has a compact design that saves a lot of space, making it suitable for small video production teams and designers with limited desktop room.

It also has a specially designed handle that makes it easy to carry, facilitating the work of video production teams by greatly increasing convenience when out and about.

Key Specs

Number of Bays

16x 2.5"/3.5" SAS (Unspecified Version), SATA (Unspecified Version)

Inputs/Outputs

2x USB-C Thunderbolt 3 (40 Gb/s)

1x USB-A 3.1/3.2 Gen 2

1x DisplayPort 1.4

RAID

RAID 0/1/5/6/JBOD

General

Number of Bays

16x 2.5"/3.5" SAS (Unspecified Version), SATA (Unspecified Version)

Inputs/Outputs

2x USB-C Thunderbolt 3 (40 Gb/s)

1x USB-A 3.1/3.2 Gen 2

1x DisplayPort 1.4

Form Factor

Tower

RAID

RAID 0/1/5/6/JBOD

Hot-Swap Support

Yes

Transfer Rates

2817 MB/s (Read in RAID 0)

2660 MB/s (Read in RAID 5)

1022 MB/s (Write in RAID 0)

1070 MB/s (Write in RAID 5)

Software

OS Compatibility

Windows

macOS

Electrical

Input Power

100 to 240 VAC, 50 / 60 Hz

Power Source

Internal Power Supply

Power Consumption

230 W

PSU Wattage

1 x 550 W

Environmental

Operating Temperature

37 to 72°F / 5 to 40°C

Operating Humidity

5 to 95%

Storage Temperature

-4 to 140°F / -20 to 60°C

Certifications

CCC, CE, FCC, RoHS

Physical

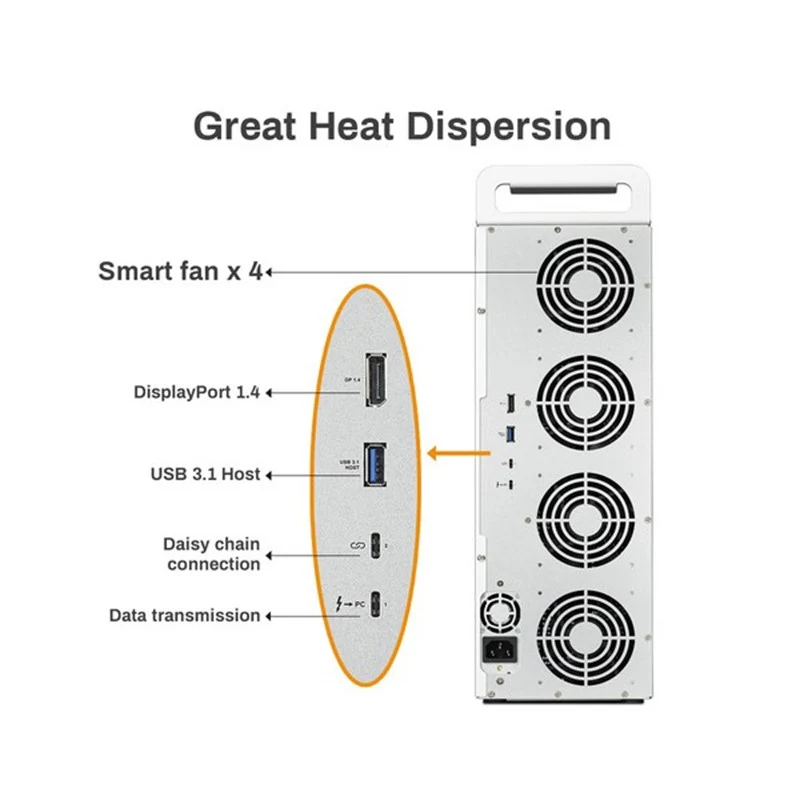

Cooling

4x 90mm Fans

Noise Level

55 dBA

Dimensions

19.6 x 13.7 x 6.3" / 498 x 348 x 160mm

Packaging Info

Package Weight

32.245 lb

Box Dimensions (LxWxH)

23.9 x 17.7 x 11.1"
