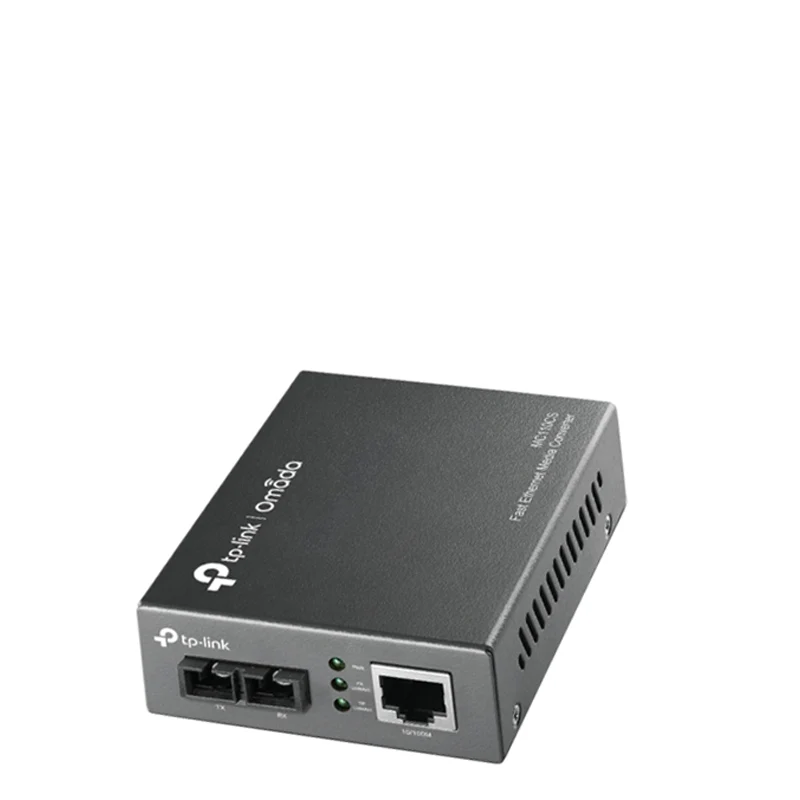

TP-Link 10/100Mbps Single-Mode Media Converter

TP Link Single Mode Media Converter, 10/100Mbps

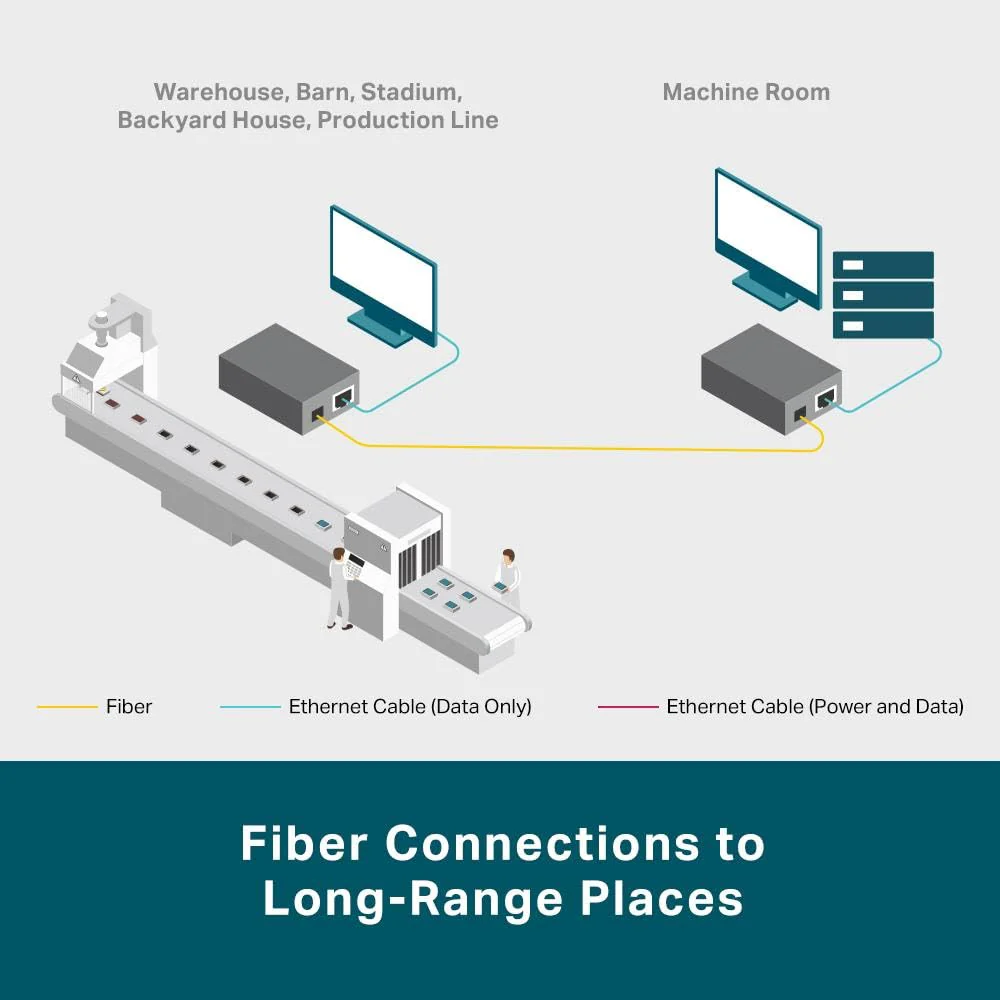

Use the MC110CS 10/100 Mb/s Single-Mode Media Converter from TP-Link to connect 100BASE-FX fiber to 100BASE-TX copper lines together. This media converter supports 802.3, 802.3u, 802.3x IEEE network standards and extends single-mode fiber ranges up to 12.5 miles.

The MC110CS supports full wire transfer rates of up to 100 Mb/s and works at the 1310nm wave length transmitting and receiving data with Full-Duplex mode for the FX port. This device includes one 100M SC port, a single 10/100 Ethernet port, and an external power adapter.

Transmits and receives data with in Full-Duplex mode for the FX port.

Supports auto MDI/MDIX for TX port.

Extends single-mode fiber range up to 12.5 miles.

1310nm wavelength on both transmitting and receiving data.

Convenient, easy-to-view LED indicators for monitoring network activity.

External power supply.

Easy-to-view LED indicators provide status to monitor network activity easily

Brand

TP-Link

Ethernet standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Wavelength

1310 nm

Maximum networking distance

12.43 miles / 20 km

Mode

Single-mode

Operating mode

Full Duplex, Half Duplex

Power consumption

2.4 W

Operating temperature

32 to 104°F / 0 to 40°C

Operating humidity

10 to 90%
