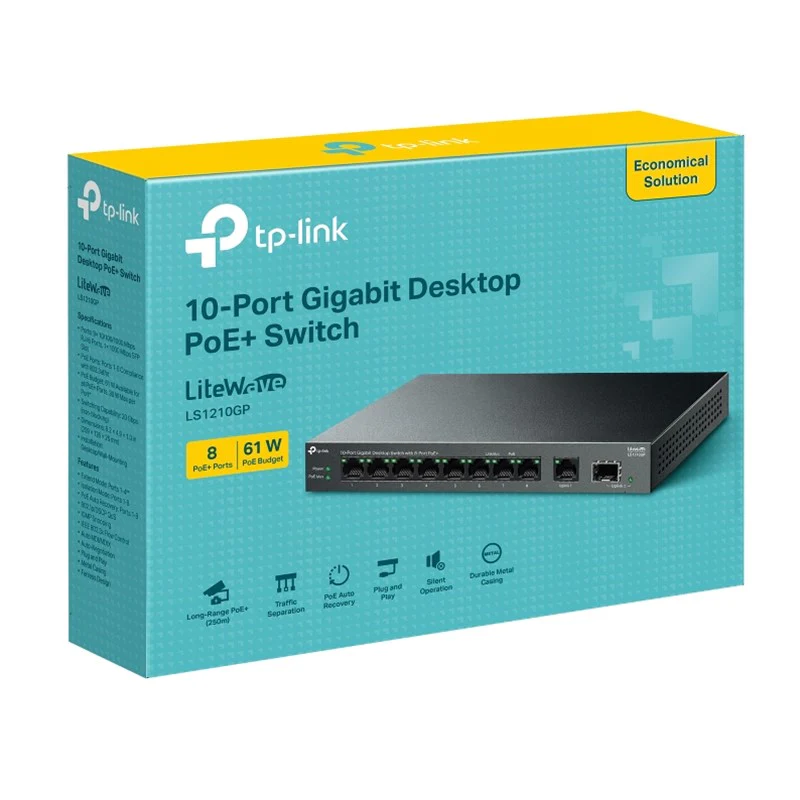

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

Full Gigabit Ports

9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.

61 W PoE Budget

Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

Up to 250 m PoE Transmission

With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

PoE Auto Recovery

Automatically reboots your dropped or unresponsive PoE-powered devices.

Traffic Separation for Higher Security

Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.

Plug and Play

Simply plug and play for instant connectivity with no configuration required.

Silent Operation

Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design

Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Interface

• 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output)
• 1× Gigabit SFP Port

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Installation

• Desktop
• Wall Mounting

Physical Security Lock

Yes

Power Supply

External Power Adapter(Output: 53.5VDC / 1.31A)

PoE+ Ports(RJ45)

• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• PoE Power Budget: 61W

Dimensions ( W x D x H )

8.2×4.9×1.0 in (209×126×26 mm)

Max Power Consumption

• 7.3 W (220/50Hz. no PD connected)
• 76.96 W (220/50Hz. with 61 W PD connected)

Max Heat Dissipation

• 24.82 BTU/h (no PD connected)
• 261.66 BTU/h (with 61 W PD connected)

Performance

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

MAC Address Table

4K

Jumbo Frame

16 KB

Software Features

Advanced Features

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8)
• PoE Auto Recovery Button (Ports 1–8)
• Compatible With IEEE 802.3af/at Compliant PDs
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology

Transmission Method

Store-And-Forward
