TP-Link 300 Mbps Wireless N 4G LTE Router

TP-Link 300 Mbps Wireless N 4G LTE Router

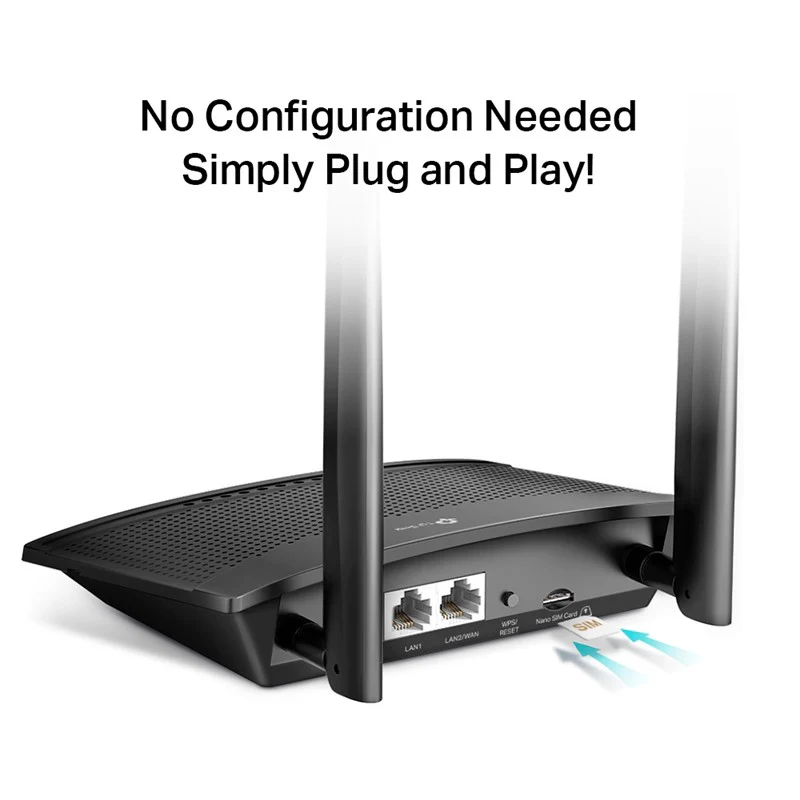

No Configuration Needed Simply Plug and Play!

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.

Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps.

Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide

Robust Parental Controls

If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.

Wi-Fi Where You Need It

Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection.

Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

Reliable Access for Up to 32 Devices Simultaneously

Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 2 LAN/WAN ports stand ready to provide internet for wired devices like desktop computers

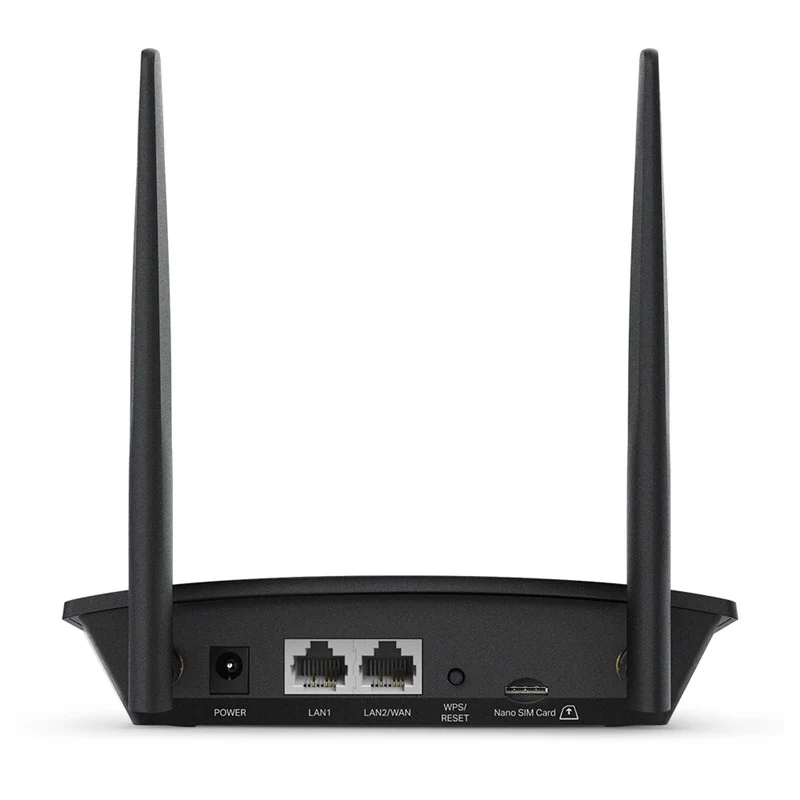

Interface

1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
1 Nano SIM Card Slot

Button

WPS/Reset Button

External Power Supply(EU)

9V/0.85A

Dimensions ( W x D x H )

6.06×4.49×1.42 in ( 154×114×36 mm)

Antenna

2 Detachable External 4G LTE Antennas

Wireless features

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Signal Rate

300 Mbps

Reception Sensitivity

11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmit Power

< 20 dBm (2.4 GHz)

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

WAN Failover

Yes

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features

Security

IPv4 SPI Firewall, IP and MAC Address Binding

Operating Modes

3G/4G Router, Wireless Router

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management

Local Management, Remote Management

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP

Protocols

IPv4, IPv6

Guest Network

2.4 GHz Guest Network

Administration

Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS

Certification

CE, RoHS

Package Contents

300 Mbps Wireless N 4G LTE TL-MR100
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Nano SIM Card

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
