TP-Link 5-Port 2.5G Desktop Switch

TP-Link 5-Port 2.5G Desktop Switch

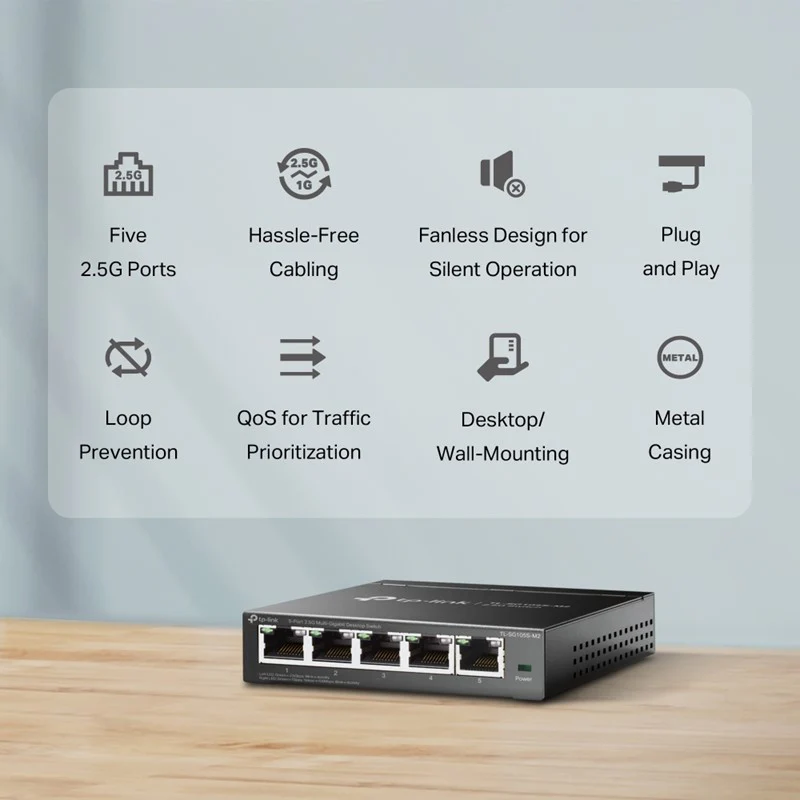

Five 2.5 Gbps Ports

5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.

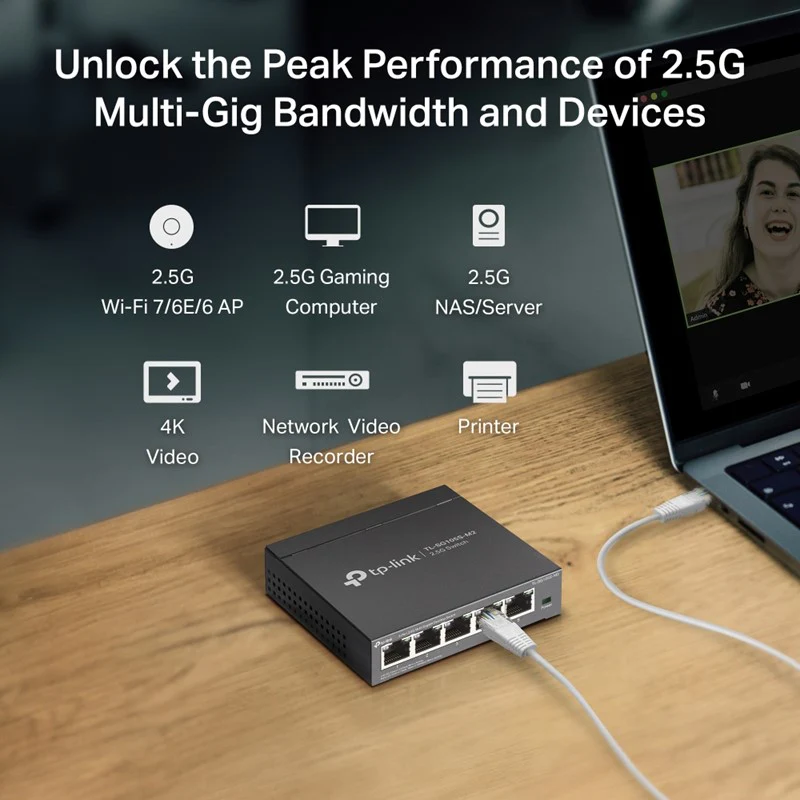

Super-Fast Connections

Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6/6E/7 AP, 4K video, and more.

Ideal for Various Scenarios

Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,

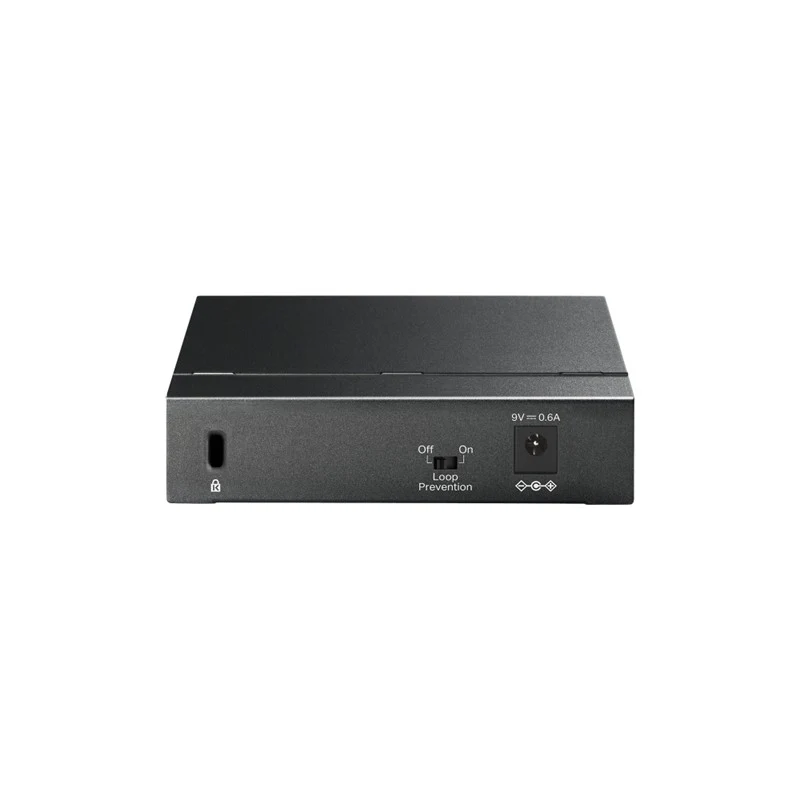

Loop Prevention

Ensures a stable and reliable network by automatically detecting and blocking network loops.

Hassle-Free Cabling

Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.

Silent Operation

Industry-leading fanless design ensures silent operation, ideal for any home or business.

Plug and Play

Allows for easy deployment without the need for a technician.

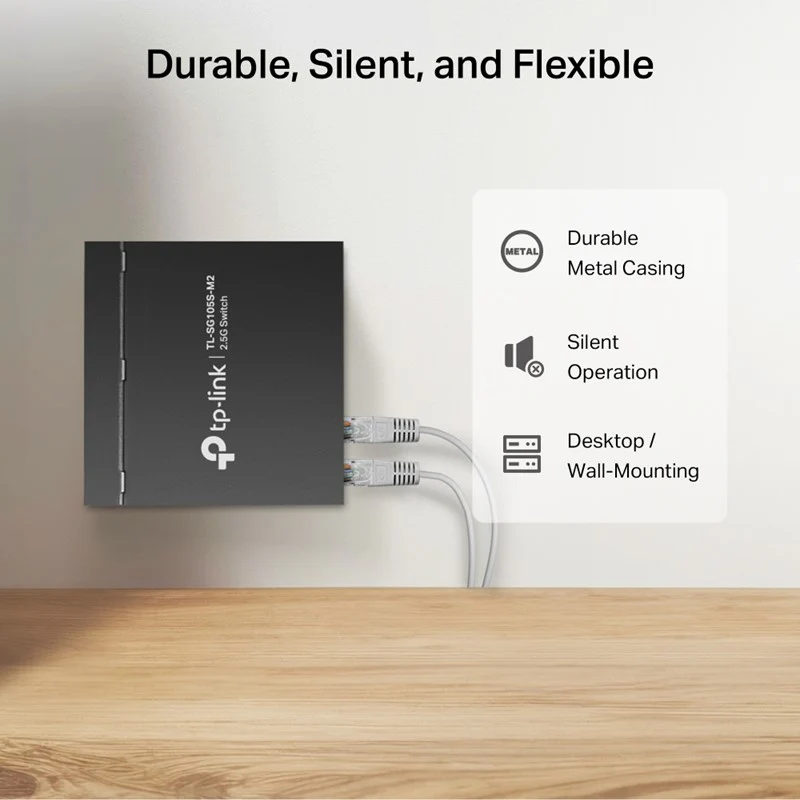

Metal Casing

Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

What are the benefits of TP-Link Switch ?

• Five 2.5 Gbps ports provide high-speed networking with up to 25 Gbps switching capacity.

• Supports fast connections for NAS, servers, gaming PCs, and Wi-Fi 6/6E/7 access points.

• Suitable for LAN parties, home entertainment setups, and small offices.

• Loop prevention automatically detects and blocks network loops for stable performance.

• No need to upgrade to Cat6 cables to achieve 2.5 Gbps speeds.

• Fanless design ensures completely silent operation.

• Plug-and-play setup with no technical configuration required.

• Durable metal casing with desktop or wall-mount installation options.

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface

5× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 9 VDC / 0.6 A)

LED

Power

Link/Act Indicators

Max. Power Consumption

5.67 W

Max. Heat Dissipation

19.28 BTU/h

PERFORMANCE

Jumbo Frame

12 KB

Switching Capacity

25 Gbps

Packet Forwarding Rate

18.6 Mpps

MAC Address Table

4 K

SOFTWARE FEATURES

Advanced Features

Loop Prevention

802.3X Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transmission Method

Store and Forward

OTHERS

Certification

CE, FCC ,RoHS

Environment

Operating Temperature: -5–40 °C (23–104 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
