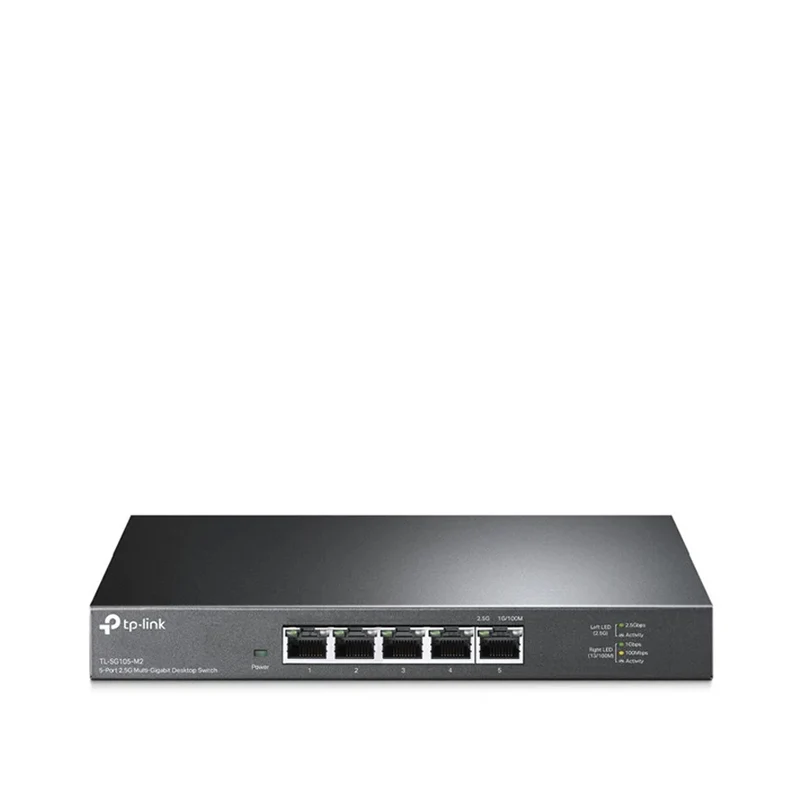

TP-Link 5-Port 2.5G Desktop Switch, Five 2.5 Gbps Ports, Super-Fast Connections, Plug and Play

TP-Link 5-Port 2.5G Desktop Switch, Five 2.5 Gbps Ports, Super-Fast Connections, Plug and Play

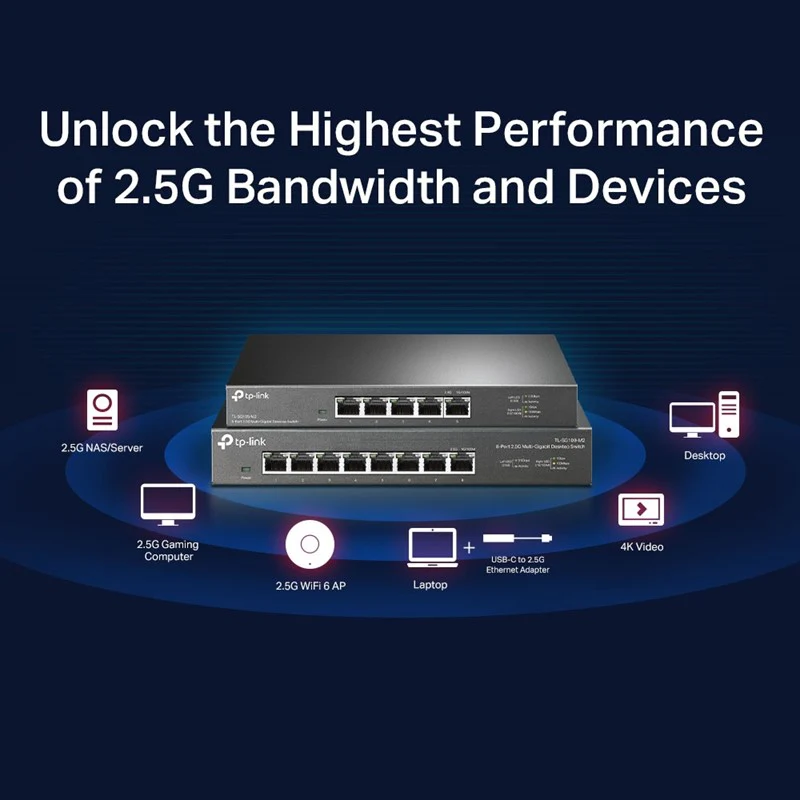

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices

As the flagship 2.5G products, the 5/8-Port desktop switches with 5/8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G Wi-Fi 6 AP, 4K video, desktop, and more.

Powerful Performance for Smooth LAN Parties

Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!

Ideal for Home Entertainment

Enjoy Buffer-Free 4K Videos

Enjoy buffer-free multi-channel 4K videos with friends and family for movie nights with maximum entertainment.

More 2.5GE LAN Ports for Wi-Fi 6 Networking

Expand the 2.5GE LAN ports of your Wi-Fi 6 routers and connect more devices—all running at max 2.5Gbps.

Ideal for Small and Home Office

Work at office or home with lightning-fast connections to workstations, desktop computers, and Wi-Fi 6 access points.

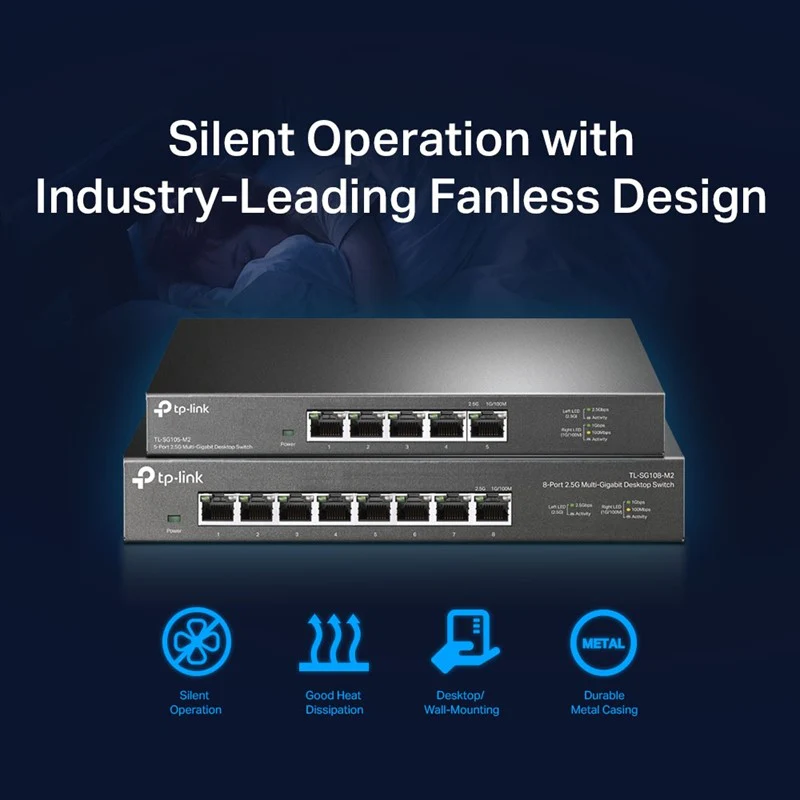

Silent Operation with Industry-Leading Fanless Design

The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.

Just Plug and Play for Internet Access

A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.

Flexible Deployment Options

The versatile mounting system gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface

5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

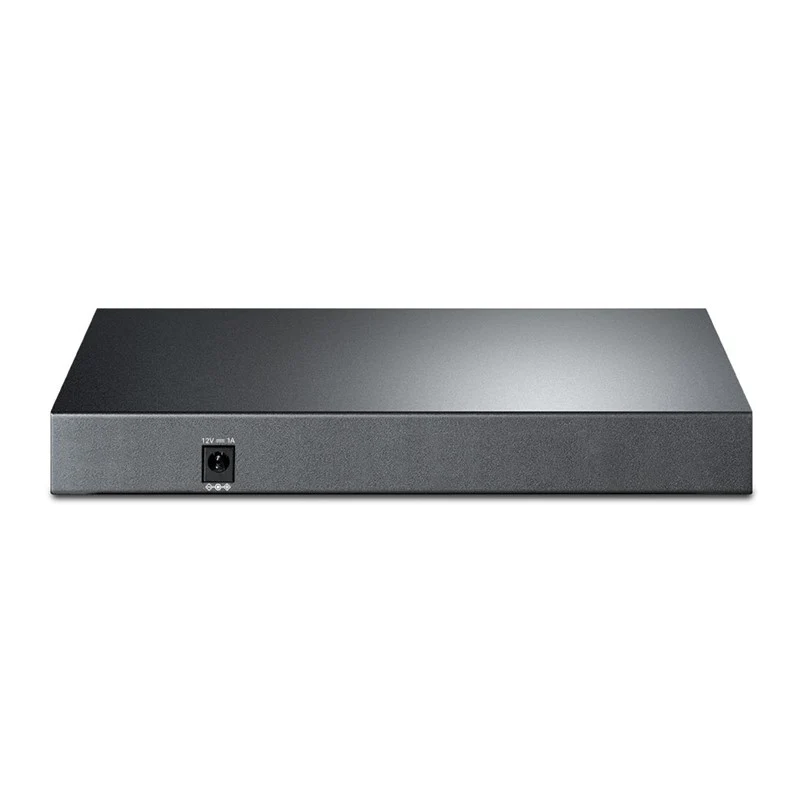

External Power Supply

External Power Adapter (Output: 12 VDC / 1 A)

LED Indicator

 System Power: 1

Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H )

8.2×4.9×1.0" (209×126×26 mm)

Max Power Consumption

12.11 W

Max Heat Dissipation

41.32 BTU/h

PERFORMANCE

Switching Capacity

25 Gbps

Packet Forwarding Rate

18.6 Mpps

MAC Address Table

16 K

Packet Buffer Memory

1.5 Mb

Jumbo Frame

10 KB

SOFTWARE FEATURES

Advanced Features

802.3X Flow Control

802.1p/DSCP QoS

Transfer Method

Store and Forward

OTHERS

Certification

CE, FCC ,RoHS

Package Contents

5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2

Power Adapter

Installation Guide

Rubber Feet

Environment

Operating Temperature: 0–40 °C (32–104 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
