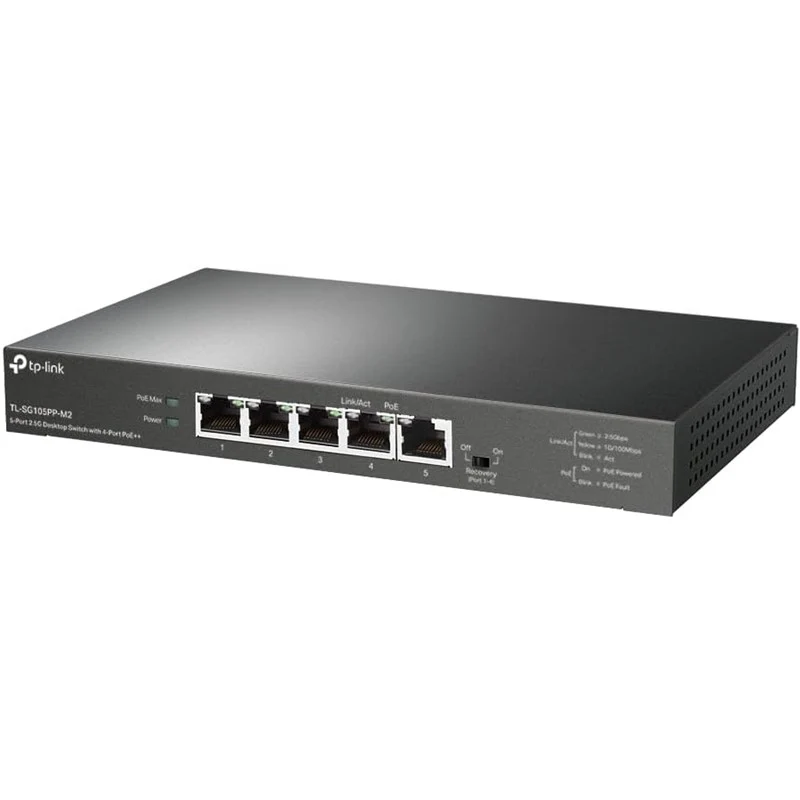

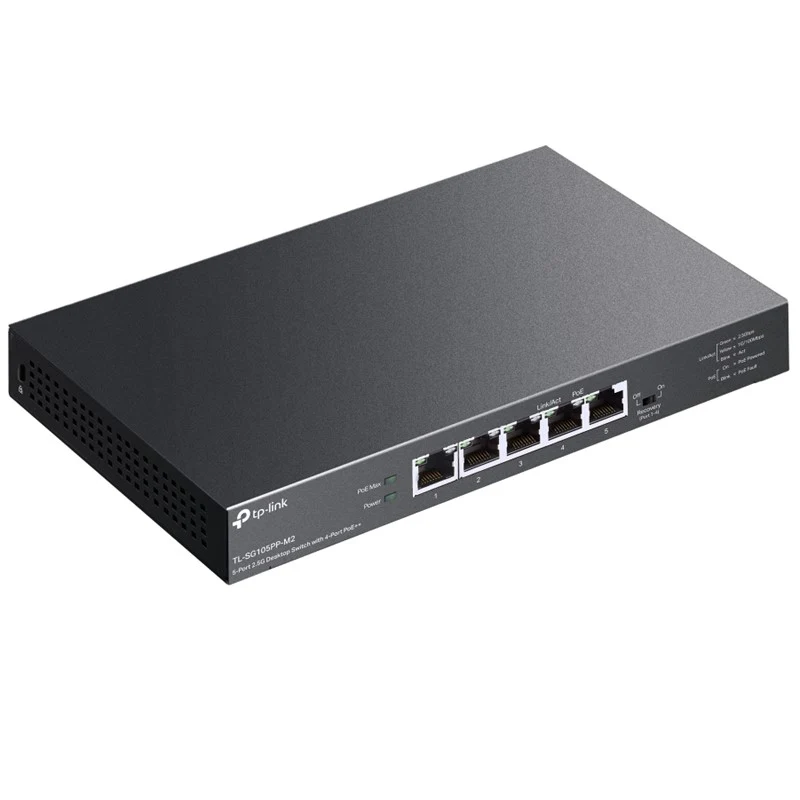

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++

Name: TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++
Brand: Blink
SKU: tp-link-5-port-2-5g-desktop-switch-with-4-port-poe
Availability: InStock

Five 2.5Gbps Ports for Super-Fast Connections

5× 2.5-Gigabit ports unlock the highest performance with multi-gig bandwidth and provide up to 25 Gbps of switching capacity.

Power Over Ethernet

4 PoE++ (802.3bt/at/af) ports providing up to 60W per port, supports total PoE budget up to 123W.

Plug and Play

Easy setup with no software installation or configuration needed.

PoE Auto Recovery

With the recovery button on, the switch automatically detects and reboots the dropped or unresponsive PoE-powered devices without the need for manual monitoring or resetting.

Reliable and Quiet

IEEE 802.3X flow control provides reliable data transfer and a fanless design ensures quiet operation.

Specification

Interface	• 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate	18.6 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at/bt type3 compliant • PoE++ Ports: Ports 1–4 • Power Supply: 123 W
Mac Address Table	4K
Switching Capacity	25 Gbps
Dimensions ( W x D x H )	8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption	• 7.57 W (220/50 Hz. no PD connected) • 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation	• 25.81BTU/h (220 V/50 Hz with no PD connected) • 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
Software Features
Advanced Features	• Compatible With IEEE 802.3af/at/bt type3 Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • PoE Auto Recovery (Ports 1-4)
Transfer Method	Store-And-Forward

$147.52

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++—

$147.52

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++—

$147.52

Product Information

Shipping & Returns

Description

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++

Five 2.5Gbps Ports for Super-Fast Connections

5× 2.5-Gigabit ports unlock the highest performance with multi-gig bandwidth and provide up to 25 Gbps of switching capacity.

Power Over Ethernet

4 PoE++ (802.3bt/at/af) ports providing up to 60W per port, supports total PoE budget up to 123W.

Plug and Play

Easy setup with no software installation or configuration needed.

PoE Auto Recovery

With the recovery button on, the switch automatically detects and reboots the dropped or unresponsive PoE-powered devices without the need for manual monitoring or resetting.

Reliable and Quiet

IEEE 802.3X flow control provides reliable data transfer and a fanless design ensures quiet operation.

Specification

Interface	• 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate	18.6 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at/bt type3 compliant • PoE++ Ports: Ports 1–4 • Power Supply: 123 W
Mac Address Table	4K
Switching Capacity	25 Gbps
Dimensions ( W x D x H )	8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption	• 7.57 W (220/50 Hz. no PD connected) • 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation	• 25.81BTU/h (220 V/50 Hz with no PD connected) • 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
Software Features
Advanced Features	• Compatible With IEEE 802.3af/at/bt type3 Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • PoE Auto Recovery (Ports 1-4)
Transfer Method	Store-And-Forward
