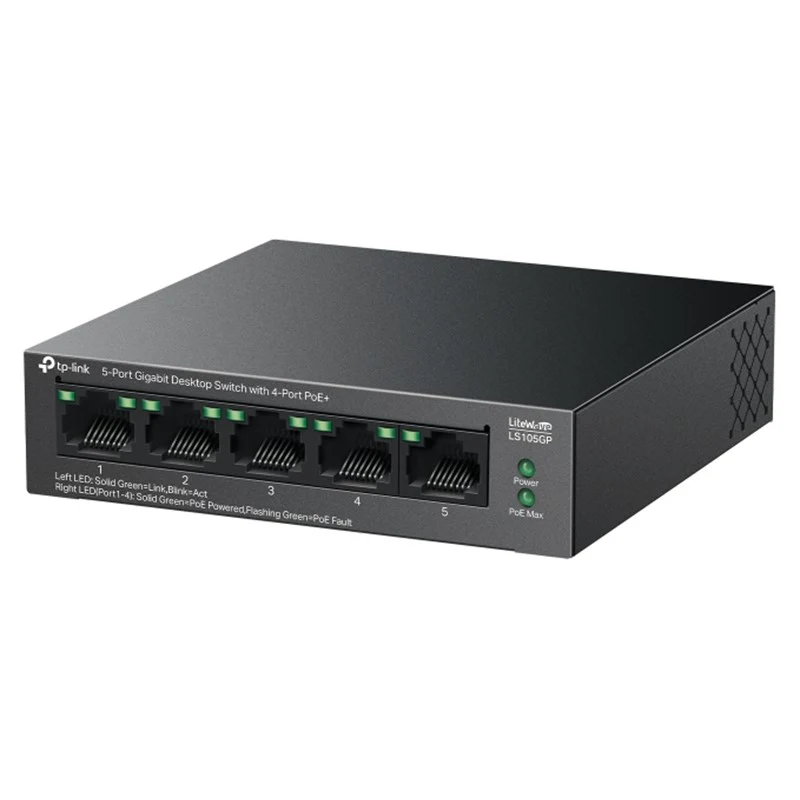

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE

Full Gigabit Ports

Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.

65 W PoE Budget

Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

Up to 250 m PoE Transmission

With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

PoE Auto Recovery

Automatically reboots your dropped or unresponsive PoE-powered devices.

Plug and Play

Simply plug and play for instant connectivity with no configuration required.

Silent Operation

Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design

Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Interface

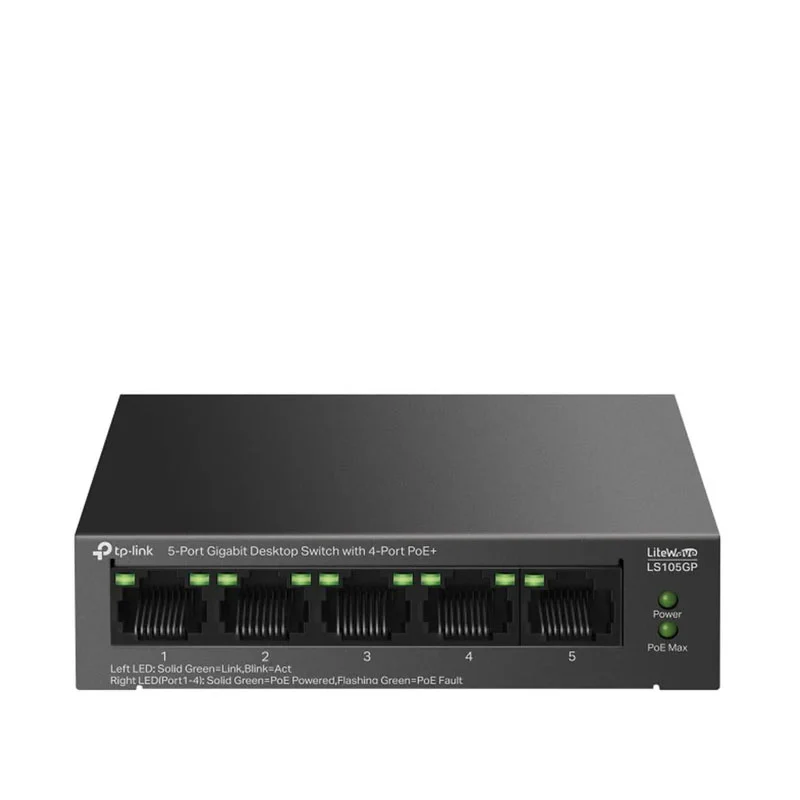

5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+)

AUTO Negotiation

AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Installation

• Desktop
• Wall Mounting

Power Supply

External Power Adapter (Output: 53.5 VDC / 1.31 A)

PoE Ports (RJ45)

• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4, up to 30 W PoE output per port
• Power Supply: 65 W

Dimensions ( W x D x H )

3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption

• 4 W (220/50 Hz. no PD connected)
• 74.46 W (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation

• 13.6 BTU/h (no PD connected)
• 253.16 BTU/h (with 65 W PD connected)

Performance

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

MAC Address Table

2K

Jumbo Frame

16 KB

Software Features

Advanced Features

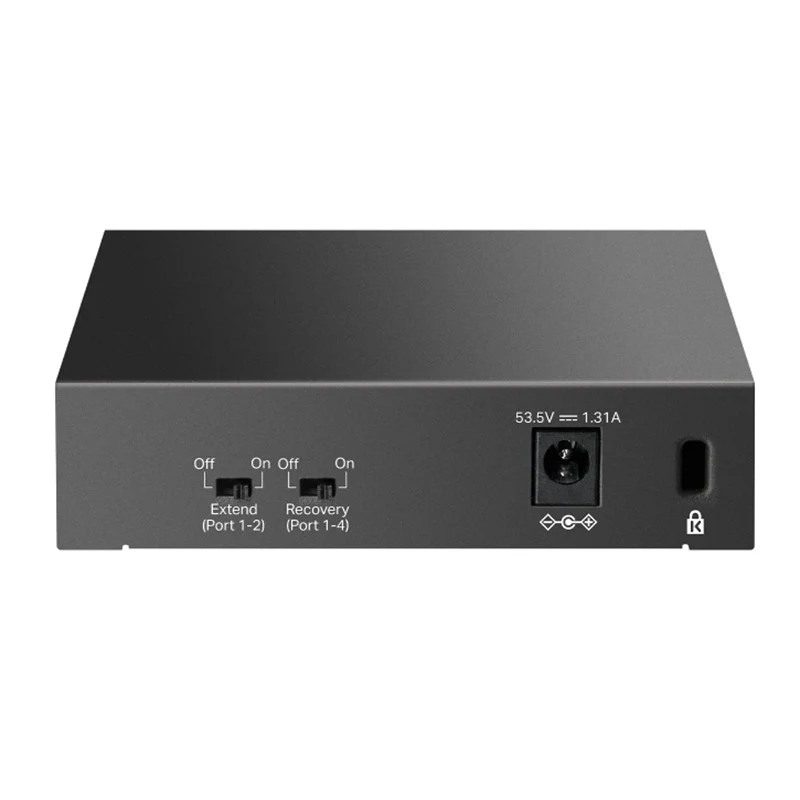

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery Button (Ports 1-4)
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology

Transfer Method

Store-And-Forward

Others

Certification

FCC, CE, RoHS

Package Contents

• LS105GP
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
