TP-LINK 5G AX1800 Wireless Dual-Band Gigabit Router - Open Box

TP-LINK 5G AX1800 Wireless Dual-Band Gigabit Router - Open Box

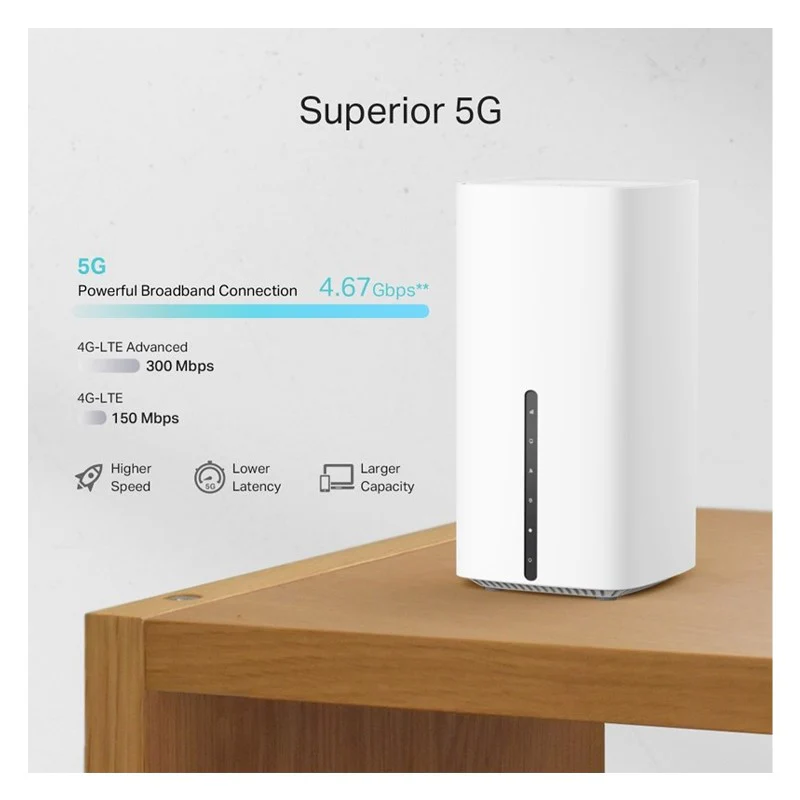

Unrivaled Speed with 5G, Revolutionary Experience

Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps.

Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.

At the same time, NX200 is backward compatible with 4G mode.

Plug and Play, Enjoy 5G Network Everywhere

Simple, just one SIM card. Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse.

Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet.

Archer NX200 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

Powerful Wi-Fi 6

Armed with Wi-Fi 6 technology, NX200 is designed to deliver a huge boost in coverage, speed, and total capacity.

Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.

EasyMesh-Compatible Networking

Mesh networking creates smooth, fast, stable roaming.

Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

Available WAN Connection

The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.

And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.

Interface

1 × 10/100/1000 Mbps LAN/WAN Port

2 × 10/100/1000 Mbps LAN Ports

1 × Nano SIM Card Slot

2 × 5G/4G External Antenna Ports

Button

WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A

Output parameter 12VDC 2A

Dimensions ( W x D x H )

3.9 × 3.9 × 7.5" ( 99 × 99 × 190mm)

Antenna

8 × 5G/LTE Internal Antennas

2 × Wi-Fi Internal Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz

Reception Sensitivity

5 GHz：

11a 54M：-80 dBm

11ax HE20：-68 dBm

11ax HE40：-65 dBm

11ax HE80：-62 dBm

11ac VHT20：-76 dBm

11ac VHT40：-72 dBm

11ac VHT80：-68 dBm

11n HT20：-79 dBm

11n HT40：-75 dBm

2.4GHz

11g 54M：-78 dBm

11ax HE20：-65 dBm

11ax HE40：-62 dBm

11ac VHT20：-73 dBm

11ac VHT40：-68 dBm

11n HT20：-75 dBm

11n HT40：-72 dBm

Transmit Power

<23dBm (5.15GHz~5.35GHz)

<30dBm (5.47GHz~5.71GHz)

<20dBm (2.4GHz)

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

WAN Failover

Yes

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)

FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)

TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)

DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Quality of Service

Prioritizes network traffic by device or application

Security

DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management

TP-Link Cloud, Local Management, Remote Management

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

VPN

PPTP VPN, IPSec VPN , OpenVPN

Access Control

Parental Control, Local Management Control

Firewall Security

DoS, SPI Firewall, IP Address Filter/Domain Filter,

IP and MAC Address Binding

Protocols

IPv4, IPv6

Guest Network

2.4 GHz Guest Network x 1

5 GHz Guest Network x 1

OTHERS

Certification

CE, RoHS

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Nano SIM Card

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
