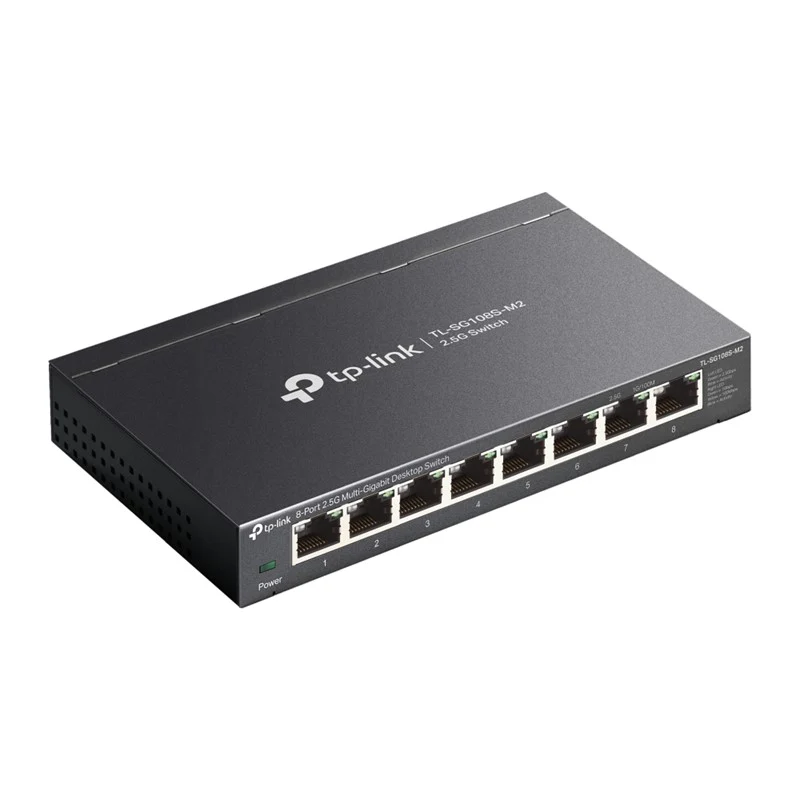

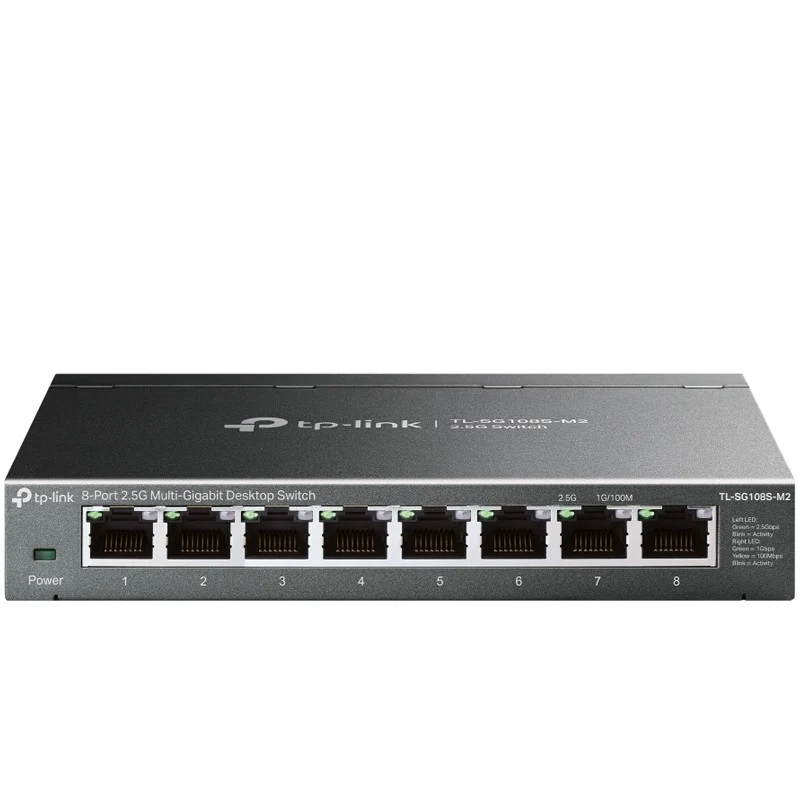

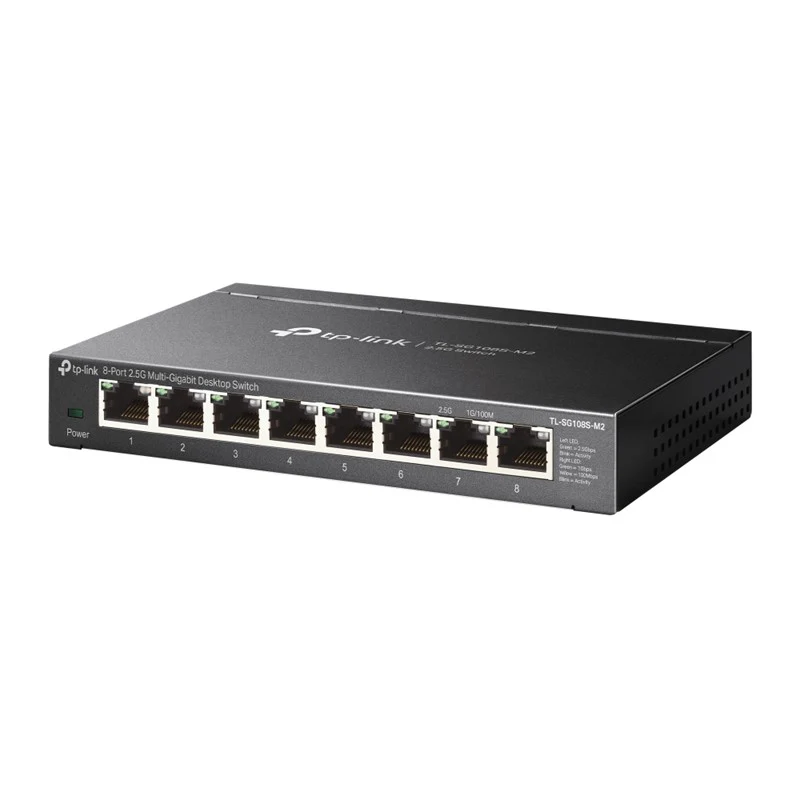

TP-Link 8-Port 2.5G Multi-Gigabit Desktop Switch

TP-Link 8-Port 2.5G Multi-Gigabit Desktop Switch

Eight 2.5 Gbps Ports

8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.

Super-Fast Connections

Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.

Ideal for Various Scenarios

Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,

Hassle-Free Cabling

Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.

Silent Operation

Industry-leading fanless design ensures silent operation, ideal for any home or business.

Plug and Play

Allows for easy deployment without the need for a technician.

Metal Casing

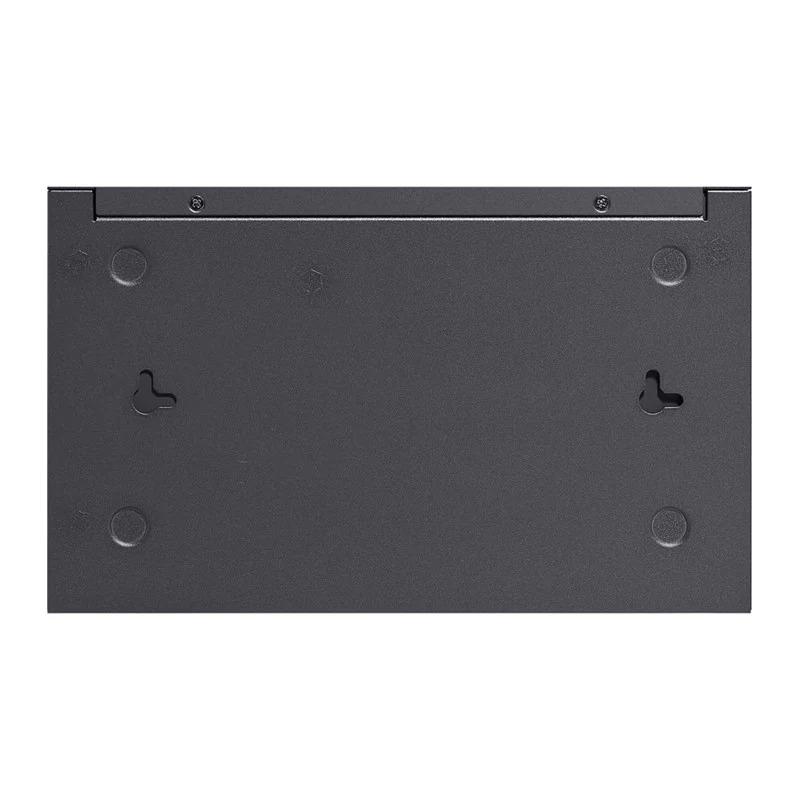

Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

What are the benefits of TP-Link Switch ?

• Eight 2.5 Gbps ports deliver high-speed networking with up to 40 Gbps switching capacity.

• Supports fast connections for NAS, servers, gaming PCs, Wi-Fi 6 access points, and 4K video.

• Suitable for LAN parties, home entertainment, and small or home offices.

• Upgrade to 2.5 Gbps speeds without needing Cat6 cabling.

• Fanless design ensures silent operation.

• Plug-and-play setup with no configuration required.

• Durable metal casing with desktop or wall-mount installation options.

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface

8× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

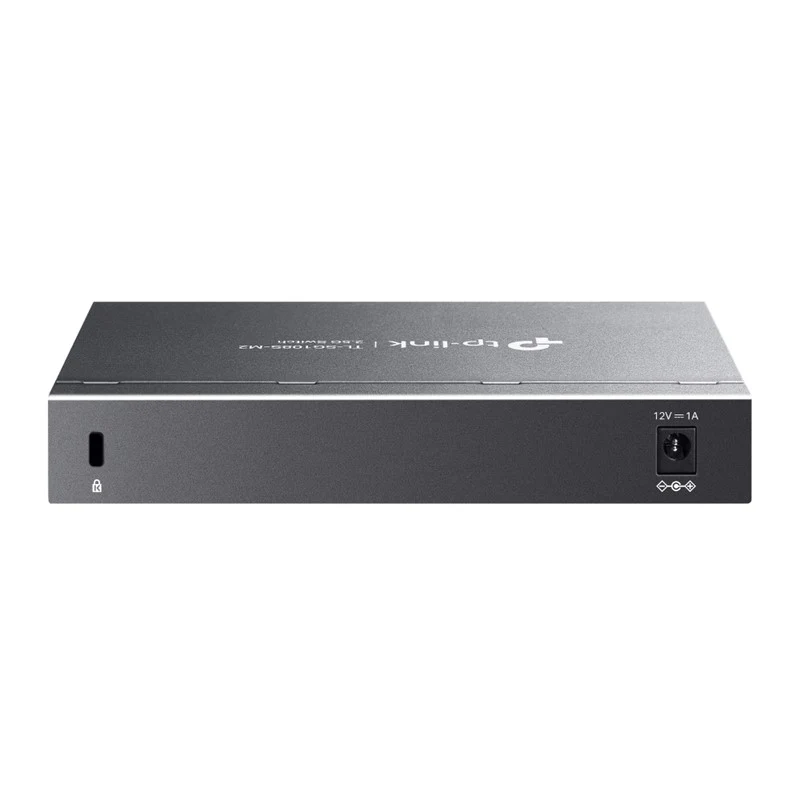

External Power Supply

External Power Adapter (Output: 12 VDC / 1.0 A)

LED

Power

Link/Act Indicators

Max. Power Consumption

8.87 W

Max. Heat Dissipation

30.158 BTU/h

PERFORMANCE

Switching Capacity

40 Gbps

Packet Forwarding Rate

29.8 Mpps

MAC Address Table

4 K

Jumbo Frame

12 KB

SOFTWARE FEATURES

Advanced Features

802.3X Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transmission Method

Store and Forward

OTHERS

Certification

CE, FCC ,RoHS

Environment

• Operating Temperature: 0–40 °C (32–104 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
