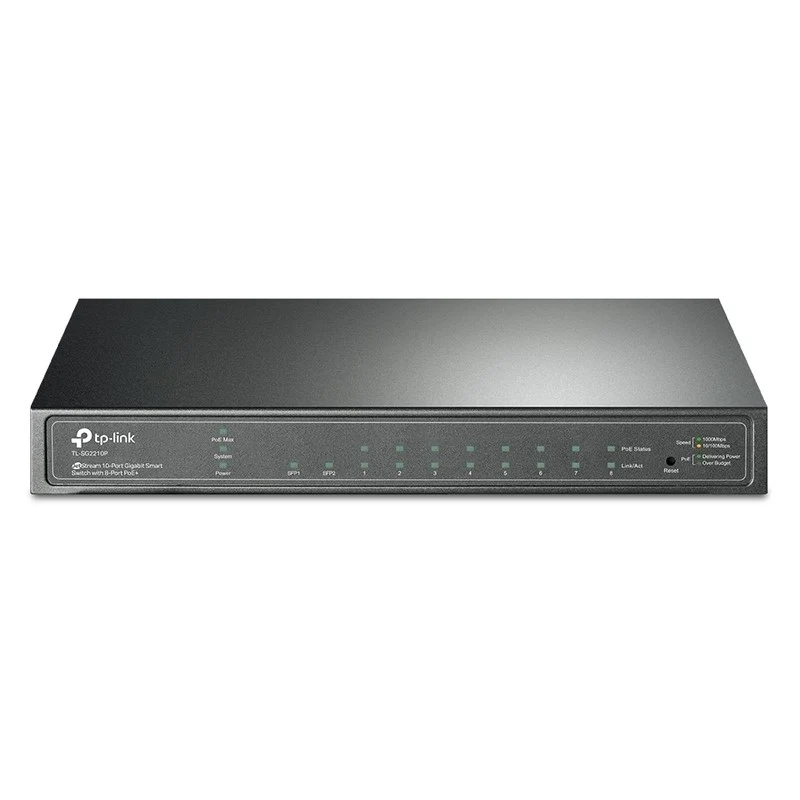

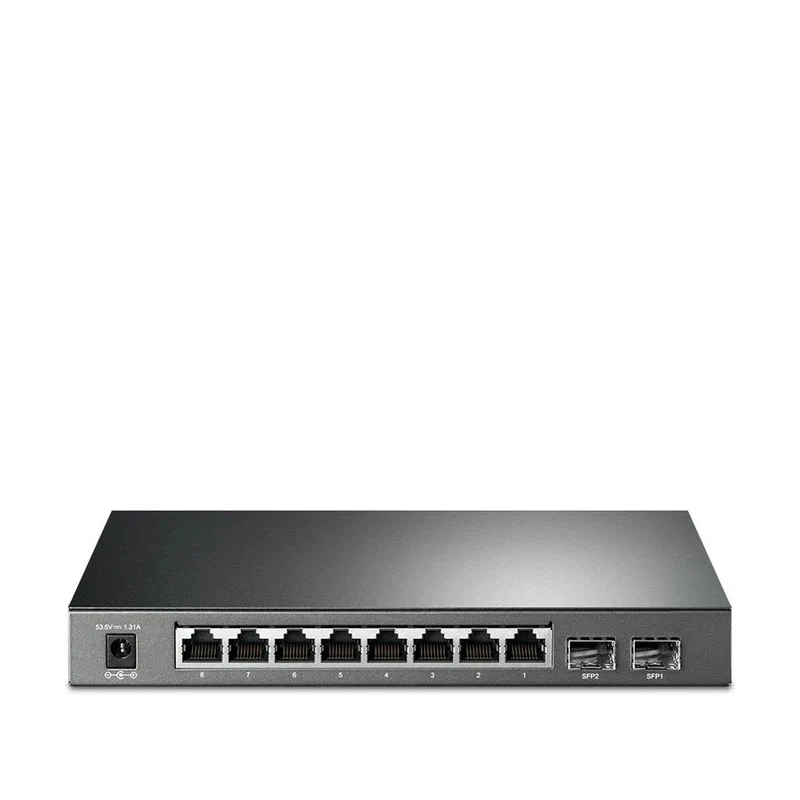

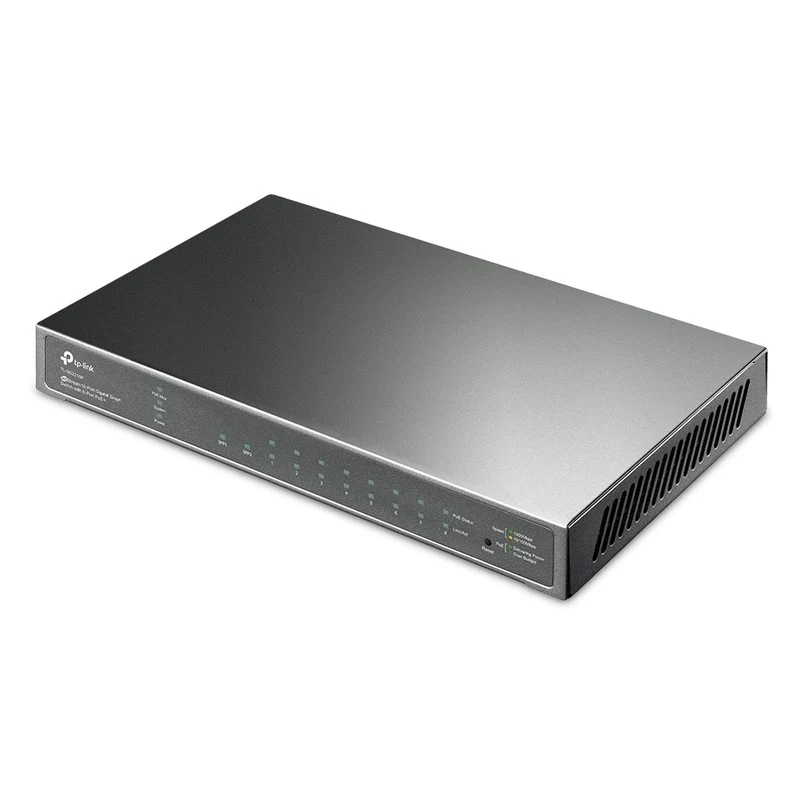

TP-Link 8 Port Gigabit Smart Desktop Switch

Management

Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management.

Wired Connections

Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Brand

TP-Link

Type

Networking Switch

Color

Black

Interface

8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Power Supply

100~240VAC, 50/60Hz
External Power Adapter(Output: 54VDC/1.3A)

Dimensions ( W x D x H )

8.2 x 4.9 x 1.0 in.

Fan Quantity

Fanless

Power Consumption

10.3W (without POE device connected)
76.5W (with 61W POE devices connected)

PoE Ports (RJ45)

Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 61 W*

Bandwidth/Backplane

20 Gbps

Packet Forwarding Rate

14.88 Mpps

MAC Address Table

8K

Jumbo Frame

9 KB

Packet Buffer Memory

4.1 Mbit
