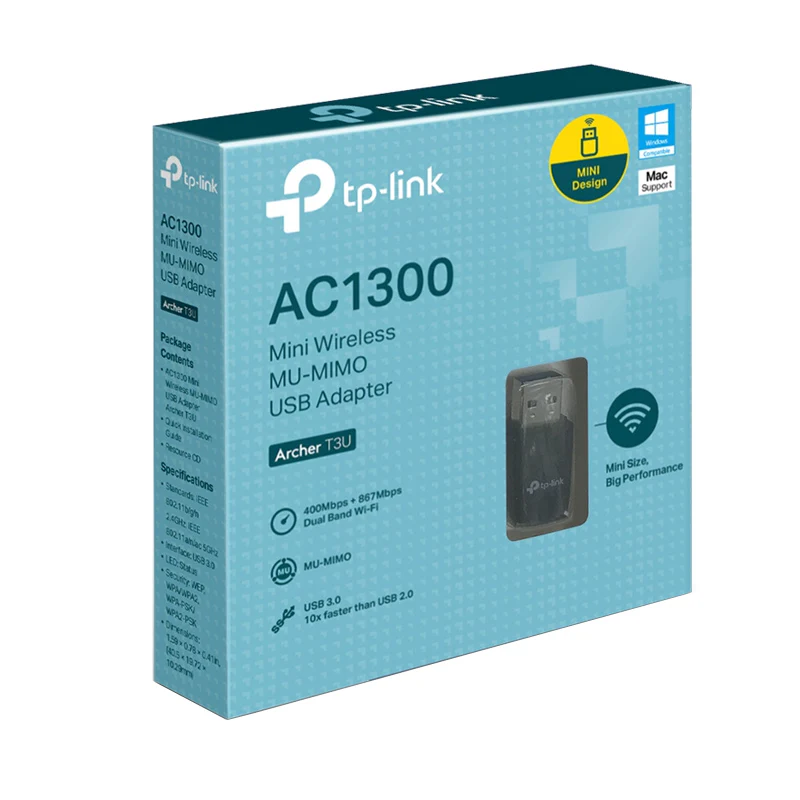

TP-Link AC1300 Mini Wireless MU-MIMO USB Adapter

High-Speed Dual Band Adapter for Better Connections

Wireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.

High-Speed Dual Band Adapter for Better Connections

Wireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.

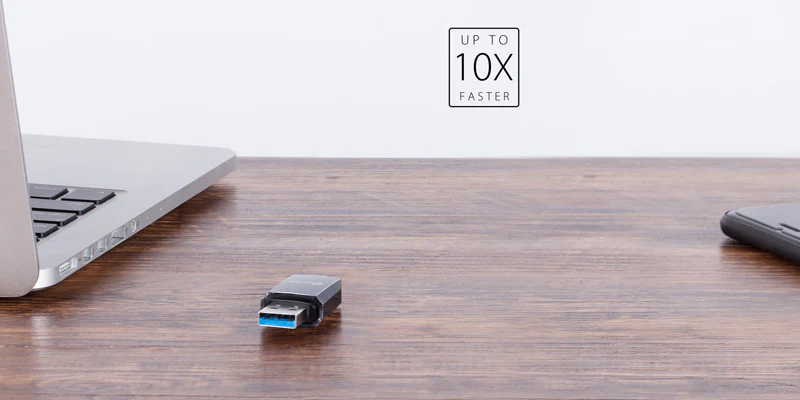

USB 3.0 for Superior Transfer Speeds

Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T3U ideal for HD streaming, online gaming and large file downloads.

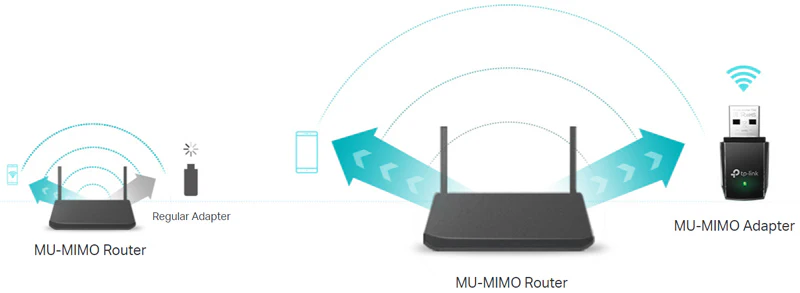

Boosted Throughput with MU-MIMO

With MU-MIMO technology, Archer T3U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.

TP-LINK

Interface

USB 3.0

Antenna Type

Omni Directional

Wireless features

Wireless Standards

IEEE 802.11ac, IEEE 802.11a

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

5GHz

2.4GHz

Signal Rate

5GHz

11ac: Up to 867Mbps(dynamic)

11n: Up to 300Mbps(dynamic)

11a: Up to 54Mbps(dynamic)

2.4GHz

11n: Up to 400Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity

5GHz:

11a 6Mbps: -91dBm

11a 54Mbps: -76dBm

11n HT20：-71dBm

11n HT40：-70dBm

11ac HT20: -68dBm

11ac HT40: -64dBm

11ac HT80: -62dBm

2.4GHz:

11b 11Mbps: -86dBm

11g 54Mbps: -73dBm

11n HT20: -71dBm

11n HT40: -70dBm

Transmit Power

<23dBm (EIRP)

Wireless Modes

Ad-Hoc / Infrastructure Mode

Wireless Security

Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

System Requirements

Windows 10/8.1/8/7/XP, Mac OS X

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Dimensions ( W x D x H )

1.59 × 0.78 × 0.41" (40.5 × 19.72 × 10.29mm)
