TP-Link AC750 Wireless Dual Band 4G LTE Router

TP-Link AC750 Wireless Dual Band 4G LTE Router

Enjoy 4G Wireless Sharing Everywhere

AC750 Wireless Dual Band 4G LTE Router (Archer MR202).

Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network with the Archer MR202, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

Got SIM Card? Then Plug and Play!

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR202. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Internet Access for up to 64 Devices Simultaneously

The Archer MR202 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.

Wi-Fi Where You Need It

The Archer MR202 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR202 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR202 has you covered.

Parental Controls

Block inappropriate content and set daily limits for how much time your children spend online with Parental Controls.

QoS

Prioritizes devices to give faster performance where you need it.

Guest Network

Guest Network creates a separate Wi-Fi for guests, ensuring your privacy is secure.

Available WAN Connection

The WAN/LAN port enables Archer MR202 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Management

Set up the Archer MR202 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.

HARDWARE FEATURES

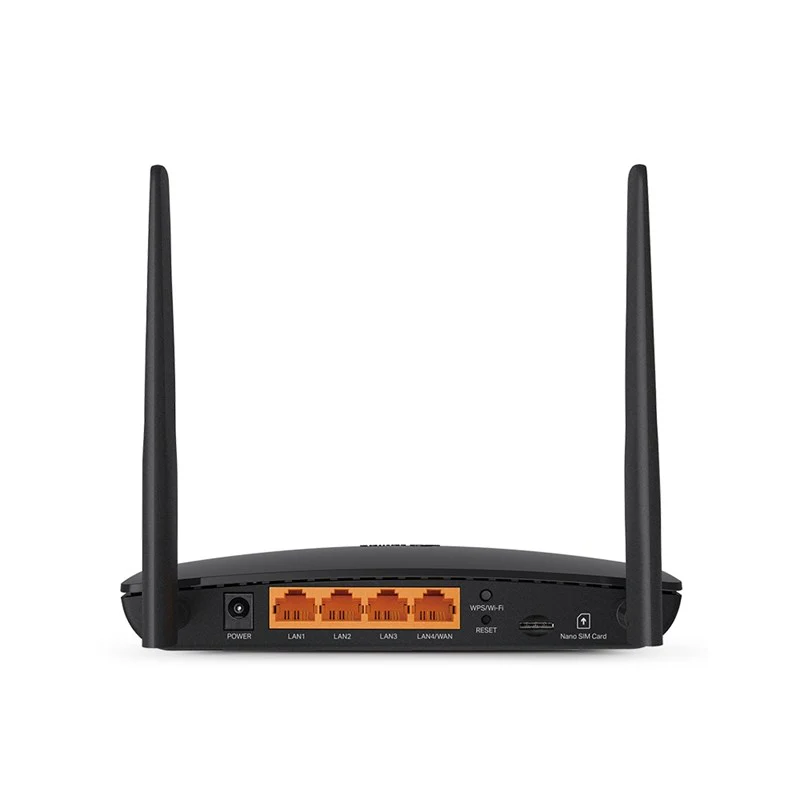

Interface

3× 10/100Mbps LAN Ports

1× 10/100Mbps LAN/WAN Port

1× Nano SIM Card Slot

2× External SMA-F Antenna Interface

Button

WPS/Wi-Fi Button，Reset Button

External Power Supply

12V/1A

Dimensions ( W x D x H )

6.85 × 4.9 × 1.32" (174 × 124.5 × 33.5mm)

Antenna

2 Detachable External 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz

Reception Sensitivity

5 GHz:

11a 54M: -78 dBm

11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm

11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm

11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm

2.4 GHz:

11g 54M: -74 dBm

11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm

11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm

Transmit Power

< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

WAN Failover

Yes

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Quality of Service

Prioritizes network traffic by device or application

Operating Modes

3G/4G Router, Wireless Router

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management

Access Control, Local Management, Remote Management, reboot schedule

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP, TP-Link DDNS

Access Control

Firewall Security

DoS, SPI Firewall, IP and MAC Address Binding

Protocols

Supports IPv4 and IPv6

Guest Network

2.4GHz guest network x 1, 5GHz guest network x 1

VPN Server

PPTP VPN, OpenVPN

OTHERS

Certification

CE, RoHS

Package Contents

AC750 Wireless Dual Band 4G LTE Router Archer MR202

RJ45 Ethernet Cable

1.5m Power Adapter

Quick Installation Guide

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Nano SIM Card

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~60℃ (-40℉ ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
