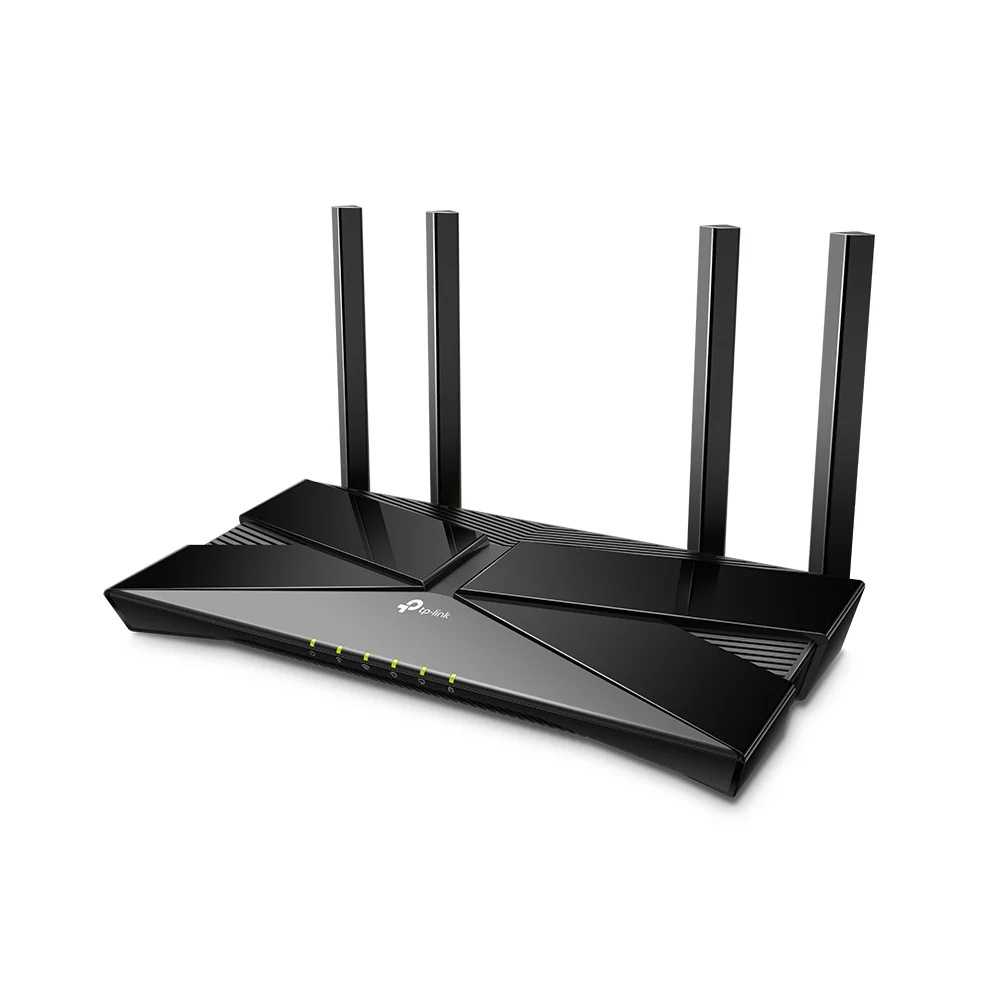

TP-Link Archer AX10 AC1500 WIFI 6 Router, Next-Gen 1.5 Gbps Speed

Advanced, Revolutionary Wi-Fi 6

Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more.

Speed Beyond Gigabit

The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable

Connect Dozens of Devices

Add more Wi-Fi devices without dragging down performance. OFDMA allows multiple devices to use one single band at the same time, enabling your Wi-Fi to bear more devices compared to the same speed level Wi-Fi 5 router.

Less Lag, More Fun

Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices all at the same time.

Triple-Core Processor

Instant Response to Every Click

A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting.

Boosted Wi-Fi Coverage

Beamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for every client.

Easy Setup and Use

Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.

Brand

TP-LINK

Processor

1.5 GHz Triple-Core CPU

Interface

1× 1000/100/10 Mbps WAN Port

4× 1000/100/10 Mbps LAN Ports

Button

WPS/Wi-Fi On/Off Button, Reset Button, Power On/Off Button

External Power Supply

12 V / 1 A

Dimensions ( W x D x H )

10.2 × 5.3 ×1.5" (260.2 × 135.0 × 38.6 mm)

Antenna

4× Fixed Omni-Directional Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Frequency

5 GHz

2.4 GHz

Signal Rate

1201 Mbps (5 GHz, 11ax)

300 Mbps (2.4 GHz, 11n)

Compatible with 802.11a/b/g/n/ac Wi-Fi standards

Reception Sensitivity

5 GHz:

11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm

11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm

11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm

11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm

11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm

2.4 GHz:

11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm

11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm

11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm

Transmit Power

CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

Wireless Functions

Enable/Disable Wireless Radio, WMM

Wireless Security

WEP

WPA/WPA2

WPA-PSK/WPA2-PSK

SOFTWARE FEATURES

WAN Type

Dynamic IP/Static IP/PPPoE

Management

Parental Control

Guest Network

DHCP

Server, DHCP Client List, Address Reservation

Dynamic DNS

DynDns, NO-IP, TP-Link

Guest Network

2.4 GHz guest network × 1

5 GHz guest network × 1

NAT

Port Forwarding, Port Triggering, UPnP, DMZ
