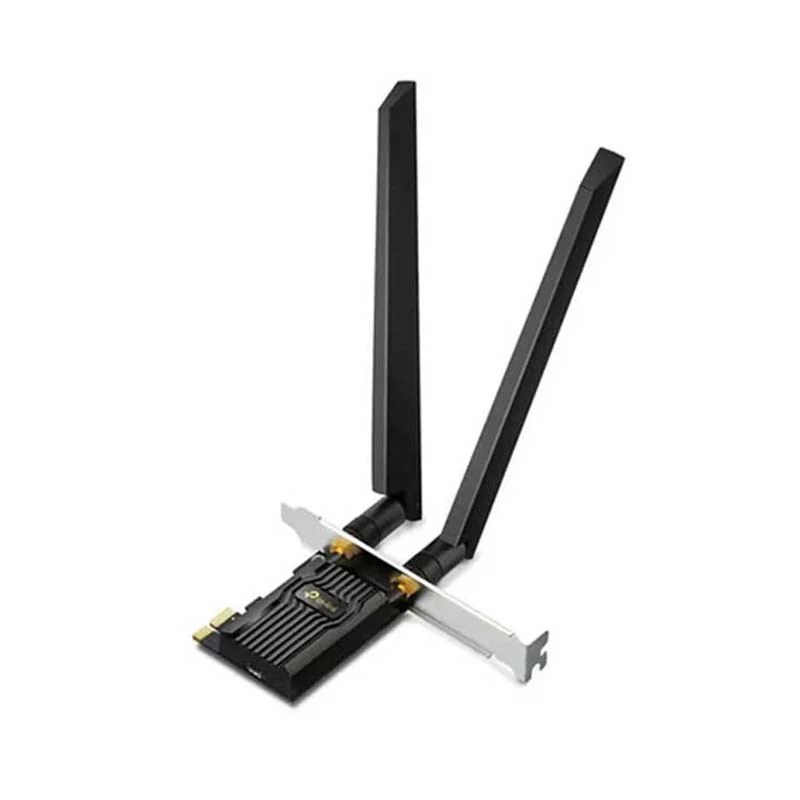

TP-Link -Archer AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

TP-Link -Archer AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Cutting-Edge Wi-Fi 6 Technology

The TP-Link Archer AX1800 PCIe Adapter features Wi-Fi 6, the latest wireless standard, which delivers faster speeds, higher capacity, and improved efficiency compared to previous Wi-Fi generations.

This ensures smoother streaming, quicker downloads, and more reliable connections, even in crowded networks.

Advanced Bluetooth 5.2 Connectivity

Equipped with Bluetooth 5.2, this adapter enhances wireless connectivity with faster data transfer rates and extended range.

It also reduces interference and power consumption, making it ideal for connecting various Bluetooth devices such as keyboards, mice, and headsets with minimal lag.

High-Speed Data Transfer

With a combined speed of up to 1800 Mbps, the Archer AX1800 ensures that your network can handle demanding tasks like online gaming, 4K streaming, and large file transfers with ease.

The dual-band capability (2.4 GHz and 5 GHz) helps in balancing the network load and optimizing performance.

Seamless PCIe Installation

The adapter utilizes a PCIe interface, making it easy to install in most desktop PCs.

This provides a stable and high-speed connection directly to your motherboard, avoiding the limitations and potential interference of USB-based adapters.

Enhanced Network Stability and Range

Thanks to its advanced antenna design and the benefits of Wi-Fi 6 technology, the Archer AX1800 offers improved network stability and extended range.

This helps in maintaining strong, reliable connections throughout your home or office, even at greater distances from the router.

System Requirements

Windows 11/10

Dimensions

4.76" × 3.09" × 0.82"

Chipset

Realtek Wi-Fi 6 Chipset

Wireless Standards

Bluetooth 5.2

WLAN Signal Rate

5 GHz, 2.4 GHz

WLAN Modes

Infrastructure mode

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Package Contents

Archer TX20E

Two High-Gain Dual Band Antennas

Low-Profile Bracket

Bluetooth Header Cable

Quick Installation Guide

Resource CD

Wireless Standards

5 GHz

11ax: Up to 1201 Mbps(dynamic)

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11ax: Up to 574 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz

11ax HE80: -57.0dBm

11ax HE40: -60.0dBm

11ax HE20: -63.0dBm

11ac VHT80: -59.5dBm

11ac VHT40: -62.5dBm

11ac VHT20: -67.5dBm

11n HT40: -69.5dBm

11n HT20: -72.5dBm

11a 54Mbps: -74.0dBm

11a 6Mbps: -94.5dBm

2.4GHz

11ax HE40: -60.0dBm

11ax HE20: -63.0dBm

11n HT40: -69.5dBm

11n HT20: -72.5dBm

11g 54Mbps: -74.0dBm

11b 11Mbps: -88.0dBm
