TP-Link Archer MR600 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

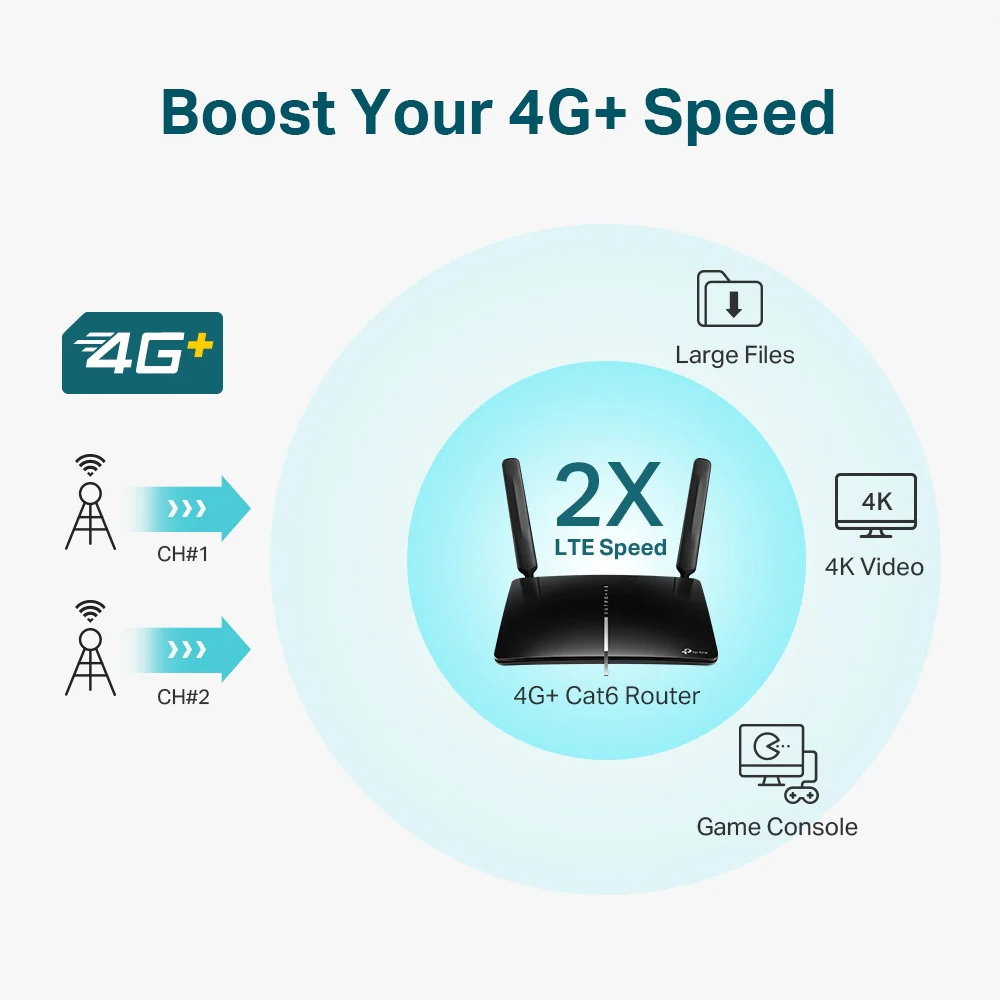

Boost Your 4G+ Speed

Supports the 4G+ Cat6, which used Carrier Aggregation technology to boost the data speeds of up to 300 Mbps. Plug your SIM card and enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming.

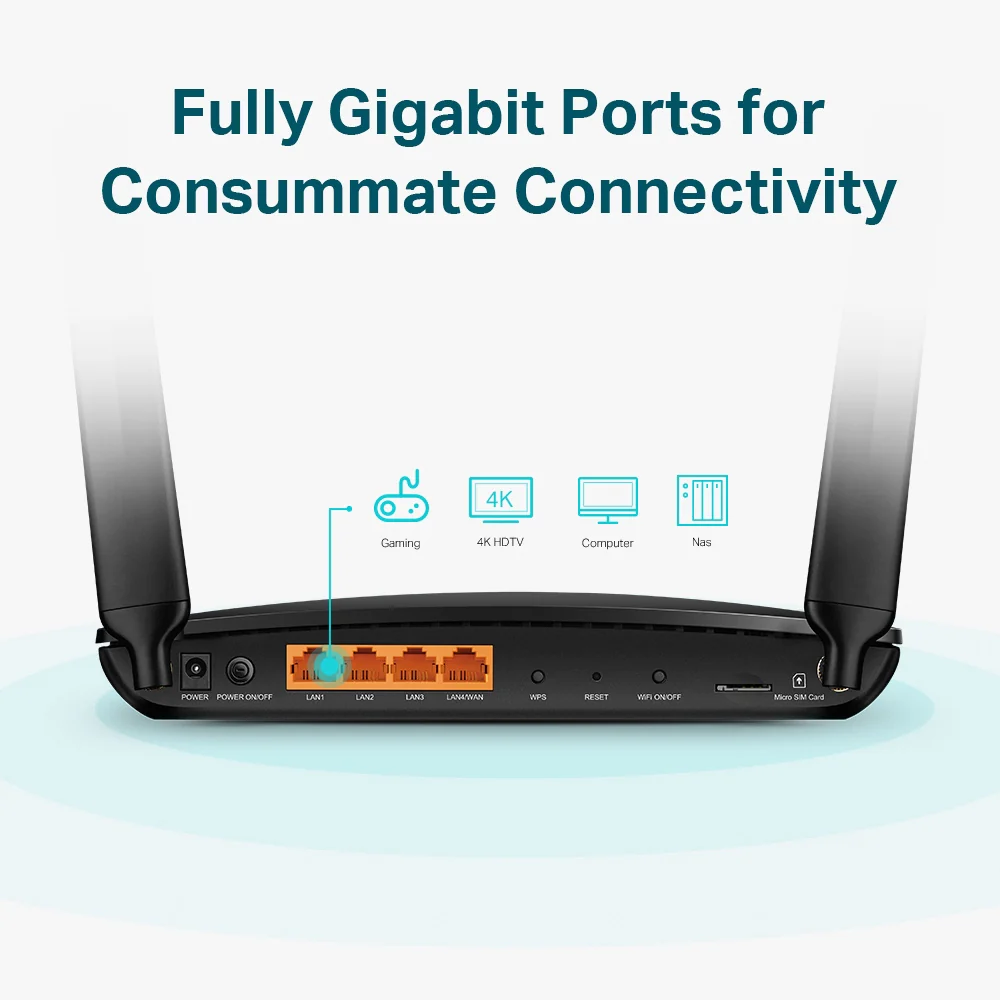

Fully Gigabit Ports for Consummate Connectivity

Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.

Got SIM Card Then Plug and Play.

With an integrated 4G+ modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G+ network has never been easier.

Reliable Access for Up to 64 Devices Simultaneously

Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.

Support TP-Link One Mesh

Co-work with TP-Link One Mesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.

Easy Setup and Management

Set up the Archer MR600 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

Specifications

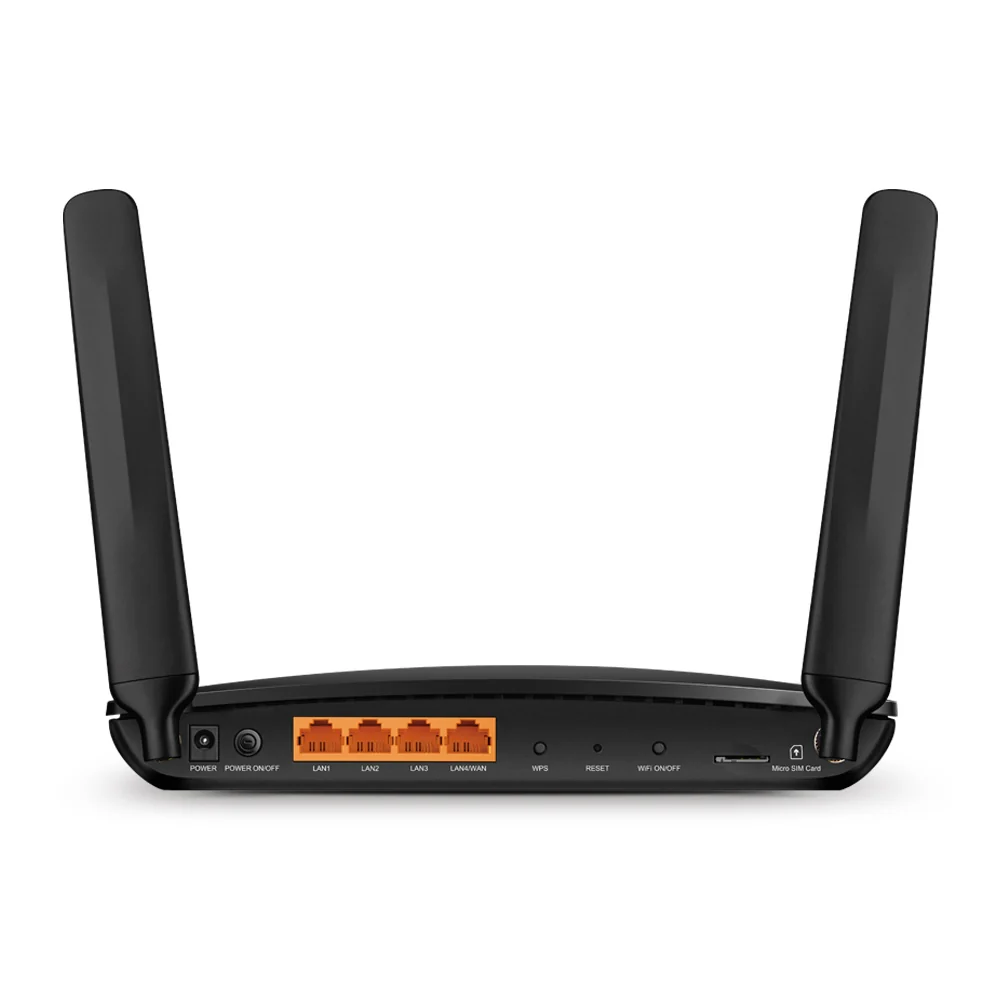

Interface

1 × 10/100/1000 Mbps LAN/WAN Port

3 × 10/100/1000 Mbps LAN Ports

1 × Micro SIM Card Slot

Button

WPS Button, Reset Button, WiFi On/Off Button, Power On/Off Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A

Output parameter 12VDC 1.5A

Dimensions ( W x D x H )

9.0×6.3×1.5 in ( 229×160×37 mm)

Antenna

2 × Detachable 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity

5 GHz: 11a 54M: -74 dBm

11ac HT20: -66 dBm

11ac HT40: -63 dBm

11ac HT80 : -59 dBm

11n HT20: -73 dBm

11n HT40: -70 dBm

2.4 GHz: 11g 54M: -74 dBm

11n HT20: -72 dBm

11n HT40: -69 dBm

Transmit Power

< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Quality of Service

Bandwidth Control

Security

DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management

TP-Link Cloud, Local Management, Remote Management

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

VPN

PPTP VPN, IPSec VPN , OpenVPN

Access Control

Parental Control, Local Management Control

Firewall Security

DoS, SPI Firewall, IP Address Filter/Domain Filter,

IP and MAC Address Binding

Protocols

IPv4, IPv6

Guest Network

2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1
