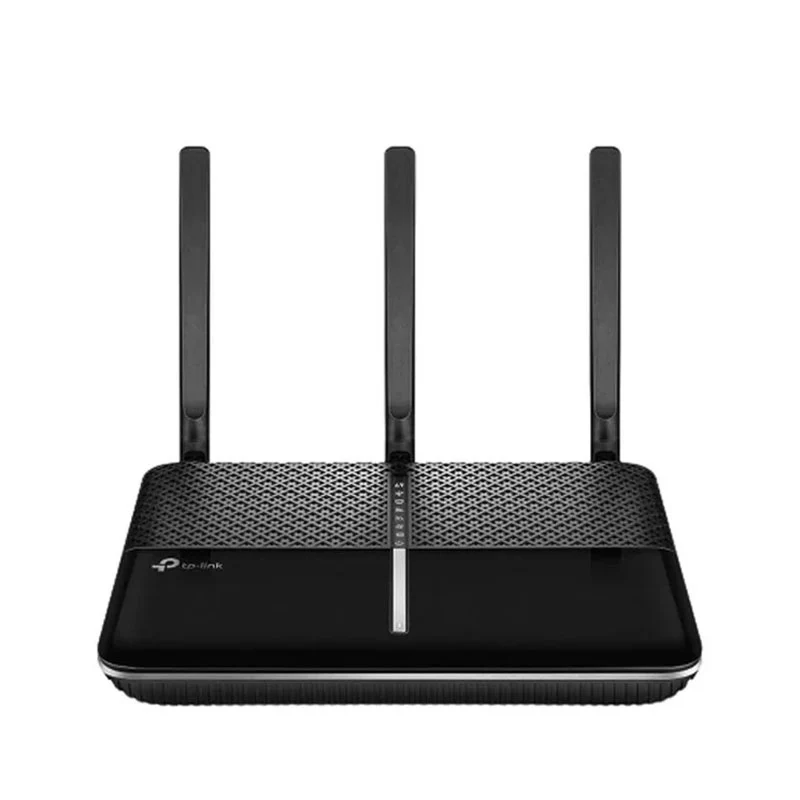

TP-Link Archer VR2100 AC2100 Wireless MU-MIMO VDSL/ADSL Modem Router

Super VDSL - the Future of Internet Access

The Archer VR2100 features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350 Mbps, 3.5x faster than its VDSL2 predecessor. The integrated DSL port also supports all standard DSL connections

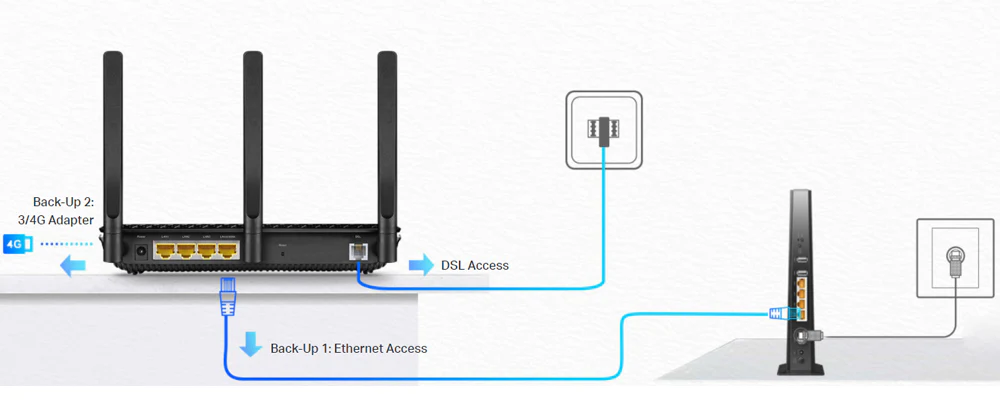

Versatile Connectivity

The Archer VR2100 is built to connect you to the internet, no matter your situation. The Ethernet WAN port supports wired connection to cable or fiber modem, letting you take full charge of its wireless capabilities as a router. In case your internet goes down, attach a 3/4G adapter to USB 3.0 port to serve as a backup option so you can get back online in no time.

Enjoy the Network at Full Speed

The Archer VR2100 makes full use of its dual band Wi-Fi abilities, reaching speeds of up to 1733 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band. Enjoy a total speed of up to 2.1 Gbps to eliminate latency and buffering from your HD streams and lag from online games.

Two dedicated Wi-Fi networks support more devices and reduce wireless interference to create stable connections.

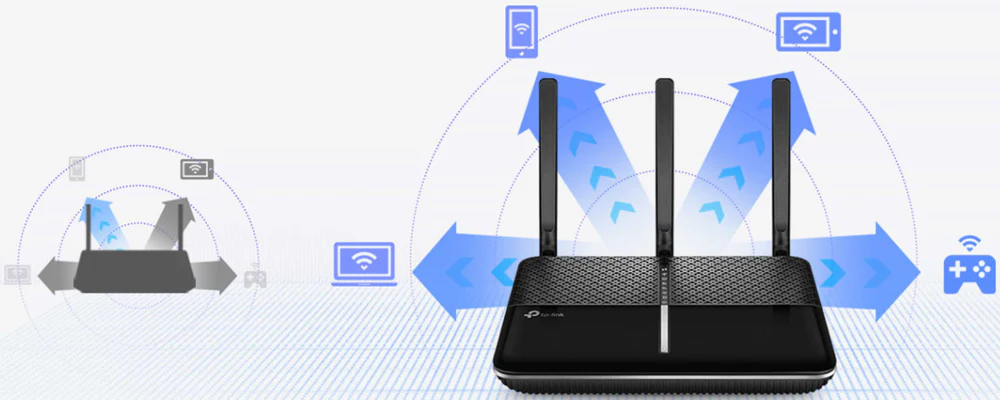

4×4 MU-MIMO - Efficient Wi-Fi for Every Device

MU-MIMO technology serves up to four devices at once, reducing wait time, increasing Wi-Fi throughput for every device, and making each stream more efficient.

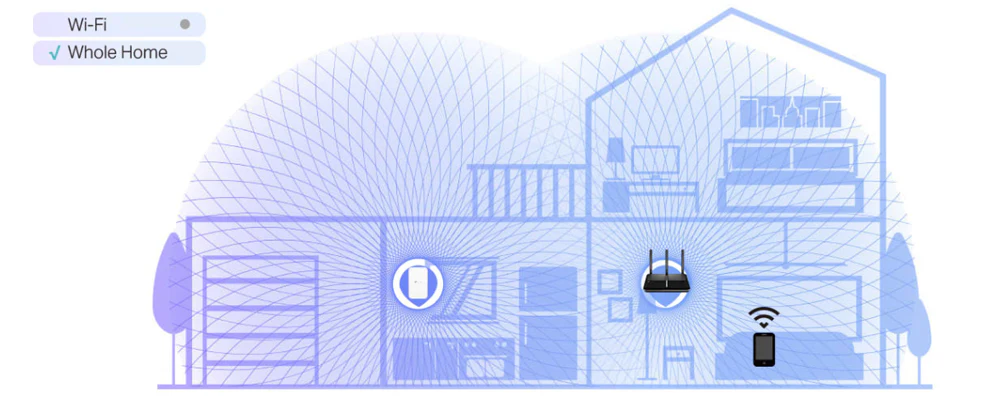

Supports TP-Link OneMesh for Whole-Home Coverage

Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.

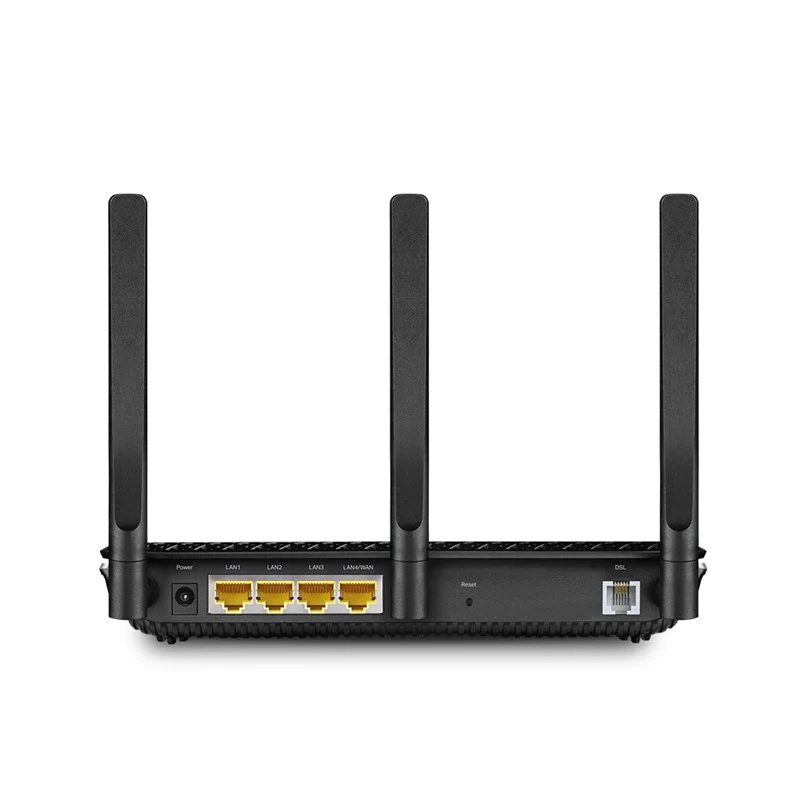

Ports

3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port,

1 USB Port

Button

WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED

On/Off Button

External Power Supply

12V/1.5A

IEEE Standards

IEEE 802.3, IEEE 802.3u, 802.3ab

VDSL2 Standards

ITU G.993.2, Up to 35b profile (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP)

ADSL Standards

Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

ADSL2 Standards

ITU-T G.992.3 (G.DMT.bis),

ADSL2+ Standards

ITU-T G.992.5

Dimensions ( W x D x H )

8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm)

Antenna Type

3 External Dual Band Antennas + 1 Internal 5 GHz Antenna

Wireless Standards

IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

1733 Mbps on 5 GHz, 300Mbps on 2.4 GHz

Transmit Power

<20dBm (2.4 GHz), <23dBm (5 GHz)

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2

encryptions

Wireless Schedule

Support 2.4 GHz and 5 GHz Wireless Schedule

Security

NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding

Operating Modes

VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router

Management

Web-Based Configuration (HTTP / HTTPS ), Remote management,

Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update

DHCP

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding

Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP, TP-Link

VPN

OpenVPN, PPTP VPN, IPSec VPN

Protocols

Supports IPv4 and IPv6

ATM/PPP Protocols

ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over

Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Advanced Features

Parental Controls, Network Address Translation (NAT), Static

Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

IPSec VPN

Supports up to 10 IPSec VPN tunnels
