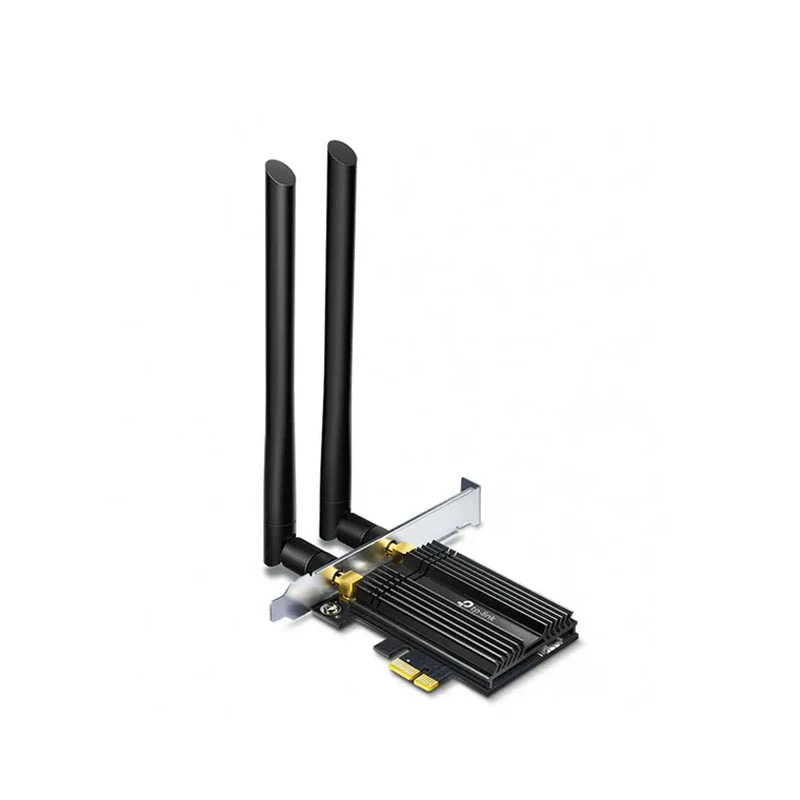

TP-Link AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter

TP-Link AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter

High Performance for High Demands

The very latest WiFi standard, Wi-Fi 6, provides extreme speed, ultra-low latency, and uninterrupted connectivity so you enjoy faster downloads, smoother streaming, and more immersive gaming.

Deep-Dive into VR

Wi-Fi 6 comes with 1024-QAM and 160 MHz bandwidth, for powerful, continuous WiFi.‡ Bandwidth-intensive applications like VR demand high speeds, which Wi-Fi 6 delivers, 3 x faster than Wi-Fi 5 Just insert Archer TX50E into your PC for fully immersive VR experiences.

High-Gain Antennas for Broader Coverage

Two powerful signal-boosting high-gain antennas greatly extend existing WiFi coverage, offering a fast and smooth online experience further away

Connect and Enjoy via the Latest Bluetooth 5.0

The latest Bluetooth 5.0 Technology, achieves speeds 2× faster and 4× broader coverage than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices

Cutting-Edge Security

WPA3, the latest network security standard that provides safer and individualized password encryption, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online

More Devices, Less Congestion

OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

Ingenious Details Make a Perfect Whole

A customized heat sink improves connection stability by efficiently dissipating thermal energy. Additionally, gold plating on every contractor prevents oxidation. This attention to detail ensures your adapter is crafted for ultimate performance.

Hardware Features

Dimensions

3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)

Antenna Type

Two High-Gain Dual Band Antennas

Chipset

Intel Wi-Fi 6 Chipset

Wireless Features

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0

WLAN Signal Rate

5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz :
11ax HT160：-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160：-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm

WLAN Transmit Power

5 GHz : 27dBm(FCC)
2.4 GHz : 26dBm(FCC)

WLAN Modes

Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Others

Certification

FCC, RoHS

Package Contents

Archer TX50E
Two 5 dBi High-Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD

System Requirements

Windows 11/10(64-bit) only

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
