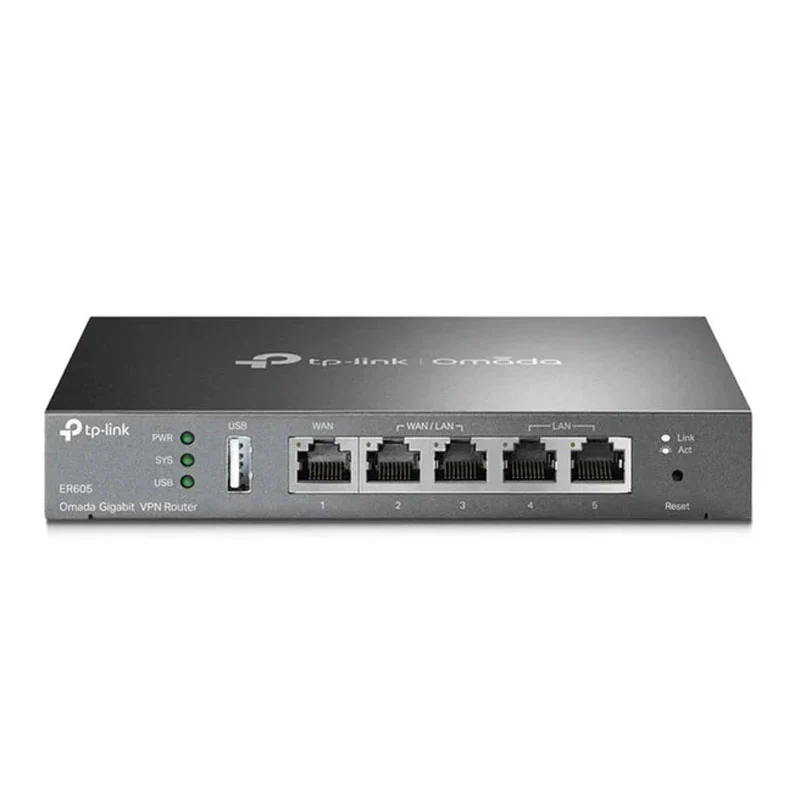

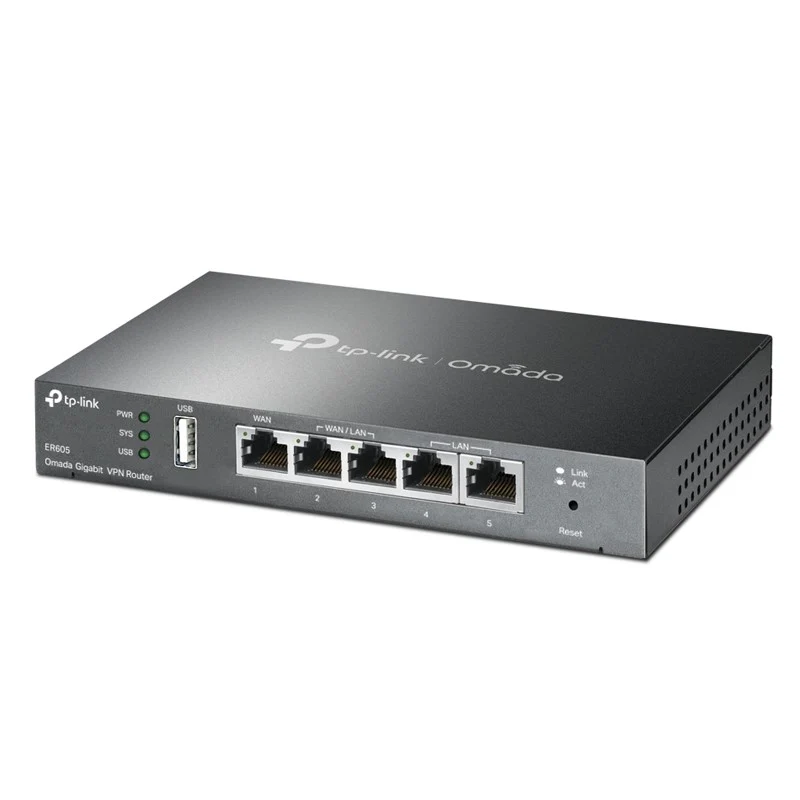

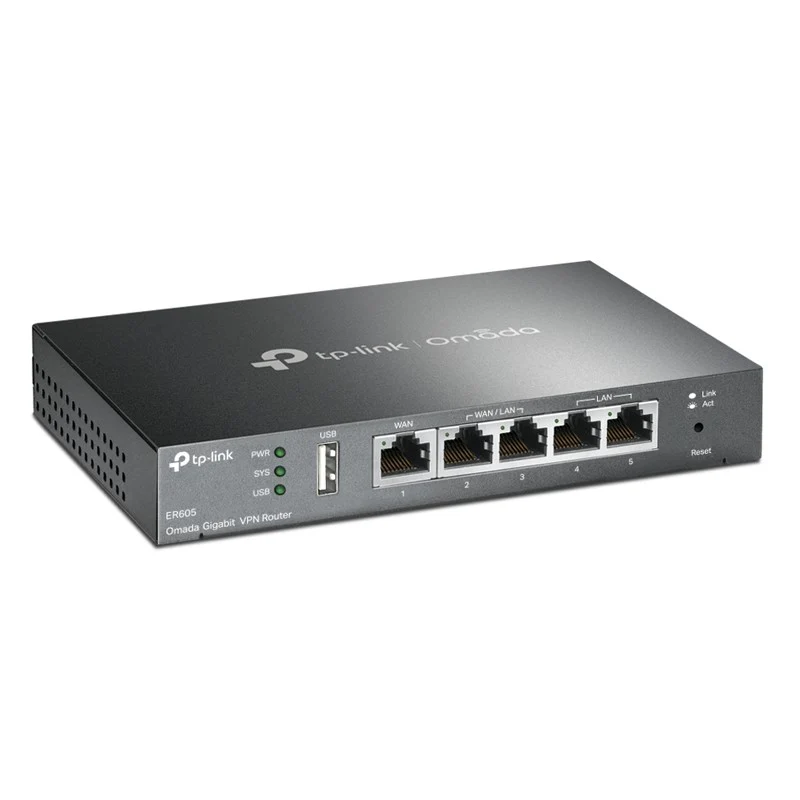

TP-LINK ER605 Omada Gigabit VPN Router

High-Security and High-Performance VPN

One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. It secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times.

Internet Access Management Strategy

Administrators can moderate users' online behavior and easily specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface

1 Fixed Gigabit WAN Port

2 Fixed Gigabit LAN Ports

2 Changeable Gigabit WAN/LAN Ports

1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button

Reset Button

Power Supply

External 12V/1A DC Adapter

Flash

128 MB NAND

DRAM

256 MB DDR

LED

PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB

Dimensions ( W x D x H )

6.2 × 4.0 × 1.0" (158 × 101 × 25mm)

Max Power Consumption

7.94 Watts

Concurrent Session

150,000

New Sessions /Second

2,600

NAT (Static IP)

Upload: 945.77 Mbps

Download: 945.56 Mbps

Bi-Directional: 1808.29 Mbps

NAT(DHCP)

Upload: 945.93 Mbps

Download: 945.43 Mbps

Bi-Directional: 1808.11 Mbps

NAT(PPPoE)

Upload: 940.44Mbps

Download: 940.52 Mbps

Bi-Directional: 1804.27 Mbps

NAT (L2TP)

Upload: 845.64 Mbps

Download: 802.65 Mbps

Bi-Directional: 931.96 Mbps

NAT (PPTP)

Upload: 771.66 Mbps

Download: 874.81 Mbps

Bi-Directional: 999.54 Mbps

64 Byte Packet Forwarding Rate

Upload/Download: 1,402,238 pps

Bi-Directional: 1,681,548 pps

IPsec VPN Throughput

ESP-MD5-AES256: 171.26 Mbps

ESP-SHA1-AES256: 224.86 Mbps

ESP-SHA2-AES256: 248.04 Mbps

OpenVPN

21.70 Mbps

L2TP VPN Throughput

Unencrypted: 864.65 Mbps

Encrypted: 47.11 Mbps

PPTP VPN Throughput

Unencrypted: 703.20 Mbps

Encrypted: 76.65 Mbps

ACL

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

Static Routing

Policy Routing

Bandwidth Control

IP-based Bandwidth Control

Load Balance

Intelligent Load Balance

Application Optimized Routing

Link Backup (Timing§, Failover)

Online Detection

NAT

One-to-One NAT§

Multi-Net NAT

Virtual Server

Port Triggering§

NAT-DMZ

FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Session Limit

IP-based Session Limit

IPsec VPN

20 IPsec VPN Tunnels

LAN-to-LAN, Client-to-LAN

Main, Aggressive Negotiation Mode

DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

IKEv1/v2

MD5, SHA1 Authentication Algorithm

NAT Traversal (NAT-T)

Dead Peer Detection (DPD)

Perfect Forward Secrecy (PFS)

PPTP VPN

PPTP VPN Server
