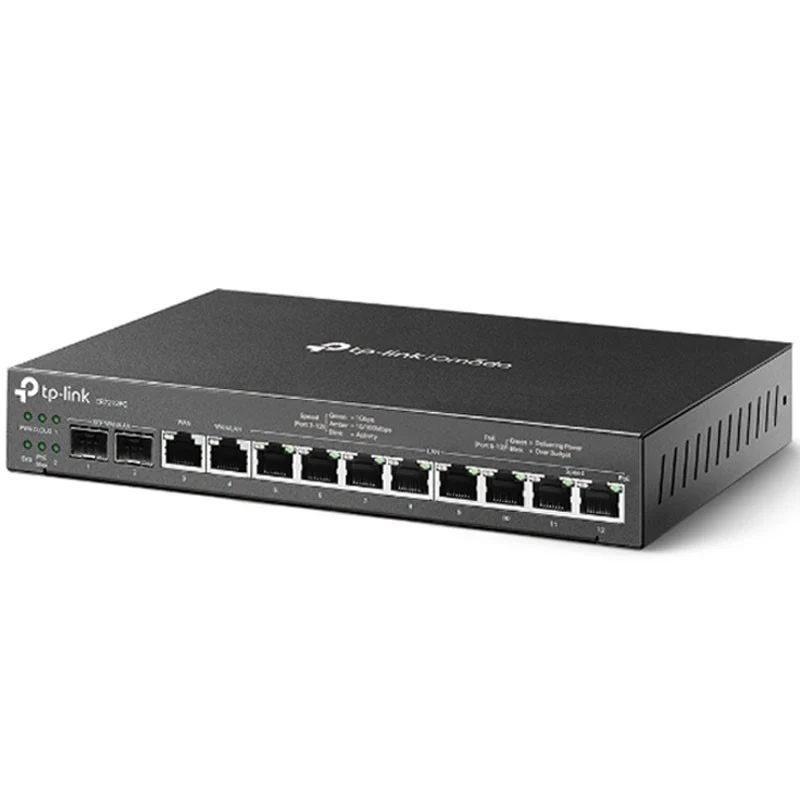

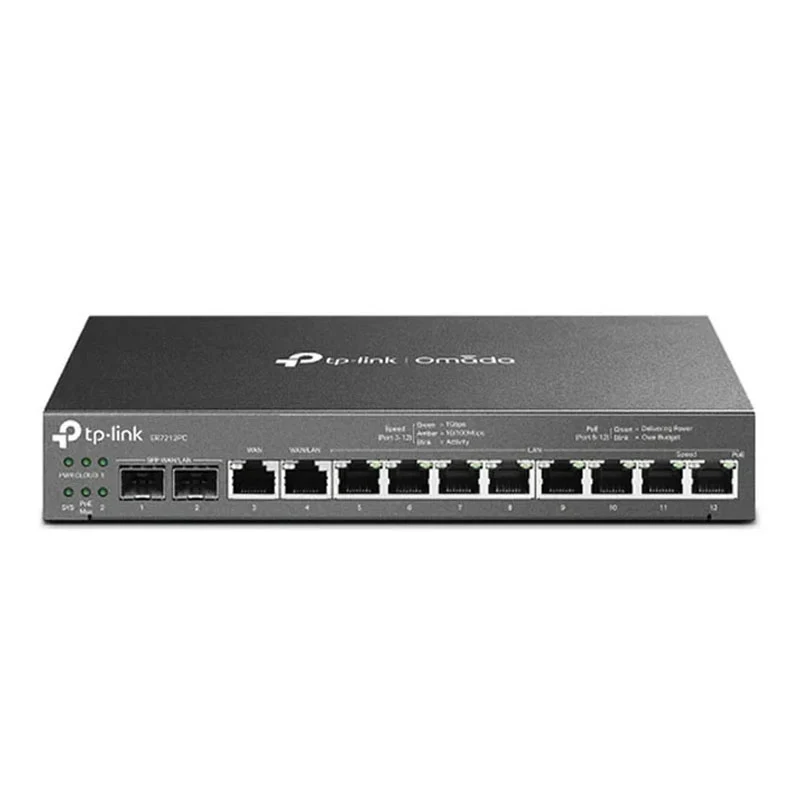

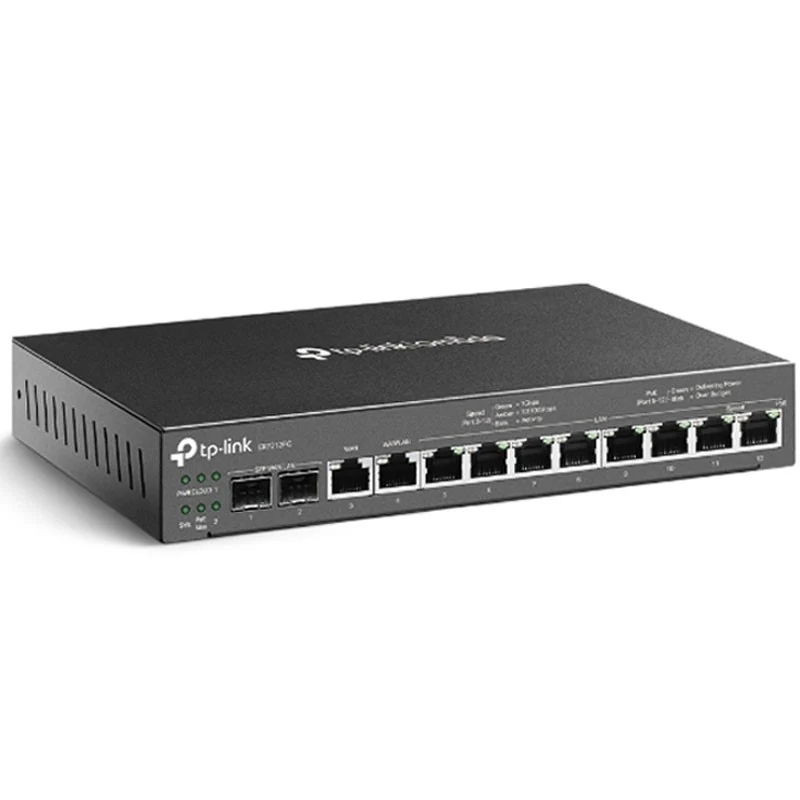

TP-LINK ER7212PC Omada 3-in-1 Gigabit VPN Router with PoE+

TP-LINK ER7212PC Omada 3-in-1 Gigabit VPN Router with PoE+

Name: TP-LINK ER7212PC Omada 3-in-1 Gigabit VPN Router with PoE+
Brand: Blink
SKU: tp-link-er7212pc-omada-3-in-1-gigabit-vpn-router-with-poe
Availability: InStock

3-in-1 Router

Integrates router, PoE switch, and Omada controller altogether.

Professional Hardware

Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.

Up to 4× WAN Ethernet Ports

Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.

110W PoE Budget

8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.

Centralized Management

Cloud access and the Omada app offer convenience and easy management.

Highly Secure VPN

Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.

Easy Installation

Fanless and compact design for desktop and wall mounting.

Specification:

Hardware Features
Standards and Protocols	IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
	TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface	2 Gigabit SFP WAN/LAN ports
	1 Gigabit WAN port
	1 Gigabit LAN/WAN port
	8 Gigabit LAN ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
	EIA/TIA-568 100Ω STP (Max 100 m)
	100BASE-TX: UTP category 5, 5e cable (Max 100 m)
	EIA/TIA-568 100Ω STP (Max 100 m)
	1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity	Fanless
Button	Reset Button
Power Supply	53.5VDC/2.43A Adapter
PoE Budget	8 ports PoE+ output, 110 W PoE Budget
Flash	8Mb Nor + 4 GB EMMC
DRAM	1 GB DDR3
Dimensions ( W x D x H )	8.9×5.2×1.4" (226 × 131 × 35 mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	Desktop/Wall-mount
Performance
Concurrent Session	24,980
New Sessions /Second	1,900
NAT (Static IP)	935.5 Mbps / 942.1 Mbps
NAT(DHCP)	940.2 Mbps / 941.7 Mbps
NAT(PPPoE)	913.1 Mbps / 935.2 Mbps
NAT (L2TP)	545.0 Mbps / 912.7 Mbps
NAT (PPTP)	523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput (AES256)	168.5 Mbps
OpenVPN	34 Mbps
L2TP VPN Throughput	Unencrypted: 845.3 Mbps
	Encrypted: 333.2 Mbps
PPTP VPN Throughput	Unencrypted: 1012.6 Mbps
	Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate	154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate	81,193 pps / 81,193 pps
Basic Functions
WAN Connection Type	Static IP
	Dynamic IP
	PPPoE
	PPTP
	L2TP
DHCP	DHCP Server
	DHCP Address Reservation
	Multi-IP Interfaces
	Multi-Net DHCP
IPv6	support
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy
Advanced Functions
Advanced Routing	Static Routing
	Policy Routing
Bandwidth Control	IP/Port-based Bandwidth Control
Load Balance	Intelligent Load Balance
	Application Optimized Routing
	Link Backup
	Online Detection
NAT	Multi-Net NAT
	Virtual Server
	NAT-DMZ
	FTP/H.323/SIP/IPSec/PPTP ALG
	UPnP
Session Limit	IP-based Session Limit
VPN
IPsec VPN	20 IPSec VPN Tunnels
	LAN-to-LAN, Client-to-LAN
	Main, Aggressive Negotiation Mode
	AES128, AES192, AES256 Encryption Algorithm
	IKE v1/v2
	SHA1, SHA2 Authentication Algorithm
	NAT Traversal (NAT-T)
	Dead Peer Detection (DPD)
	Perfect Forward Secrecy (PFS)
PPTP VPN	PPTP VPN Server
	PPTP VPN Client (10)
	16 Tunnels
	PPTP with MPPE Encryption
L2TP VPN	L2TP VPN Server
	L2TP VPN Client (10)
	16 Tunnels
	L2TP over IPSec
OpenVPN	OpenVPN Server
	OpenVPN Client (10)§
	16 OpenVPN Tunnels
Security
Filtering	URL Filtering
Attack Defense	TCP/UDP/ICMP Flood Defense
	Block TCP Scan (Stealth FIN/Xmas/Null)
	Block Ping from WAN
Access Control	Source/Destination IP Based Access Control
Authentication
Web Authentication	No Authentication
	Simple Password
	Hotspot (Local User / Voucher / SMS / Radius)
	External Radius Sever
	External Portal Sever
	Facebook
MANAGEMENT
Omada App	Yes
Cloud Access	Yes
Service	Dynamic DNS (Dyndns, No-IP)
Maintenance	Web Management Interface
	Remote Management
	Export & Import Configuration
	SNMP v1/v2c/v3
	Syslog Support
Management Features	Automatic Device Discovery
	Intelligent Network Monitoring
	Abnormal Event Warnings
	Unified Configuration
	Reboot Schedule
	Captive Portal Configuration
	Management up to 1 Router, 2 Switches and 10 EAPs
Others
Certification	CE, FCC, RoHS
Package Contents	ER7212PC
	Power Adapter
	Power Cord
	Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
	MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
	Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
	Operating Humidity: 10% to 90% non-condensing
	Storage Humidity: 5% to 90% non-condensing
