TP-Link JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+,150 W PoE Budget, Full Gigabit Ports, Optimize Voice and Video

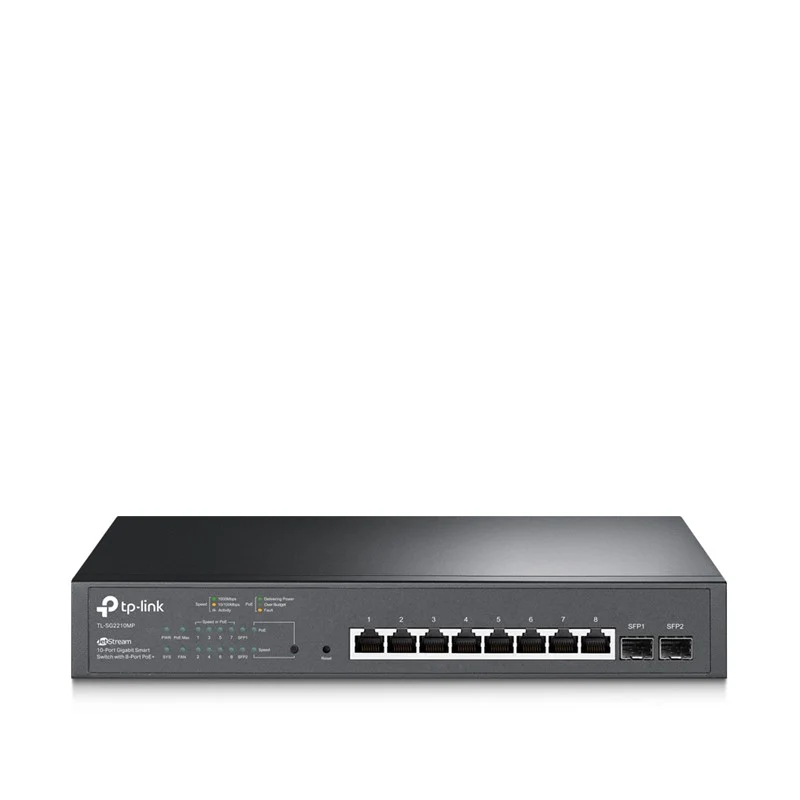

TP-Link JetStream 10-Port Gigabit Smart Switch

Software Defined Networking (SDN) with Cloud Access

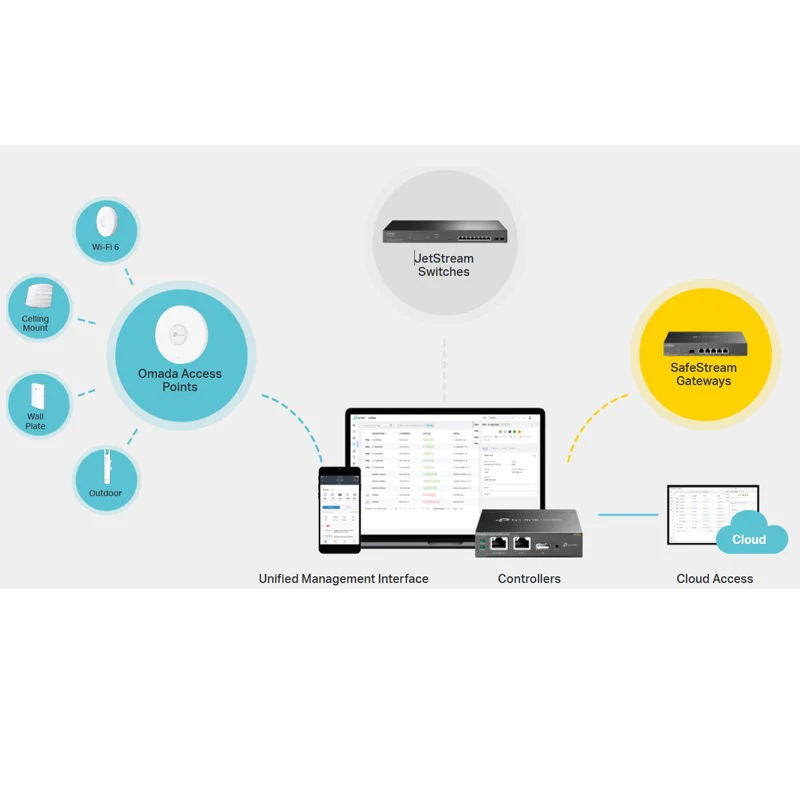

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface

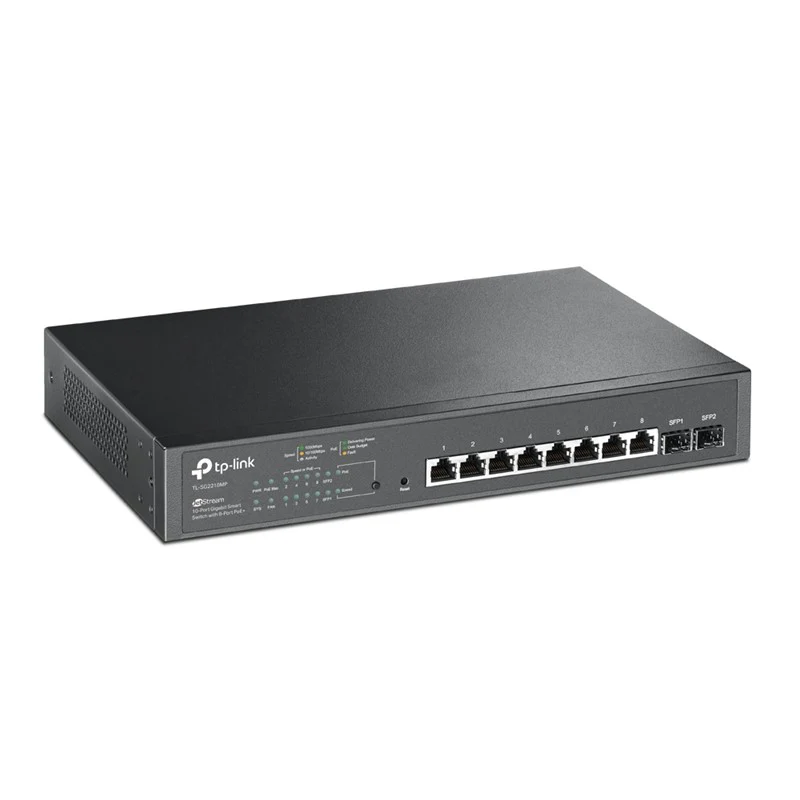

 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)

2× 100/1000 Mbps SFP Slots

Network Media

10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)

100BASE-FX: MMF, SMF

1000BASE-X: MMF, SMF

Fan Quantity

1

Physical Security Lock

Yes

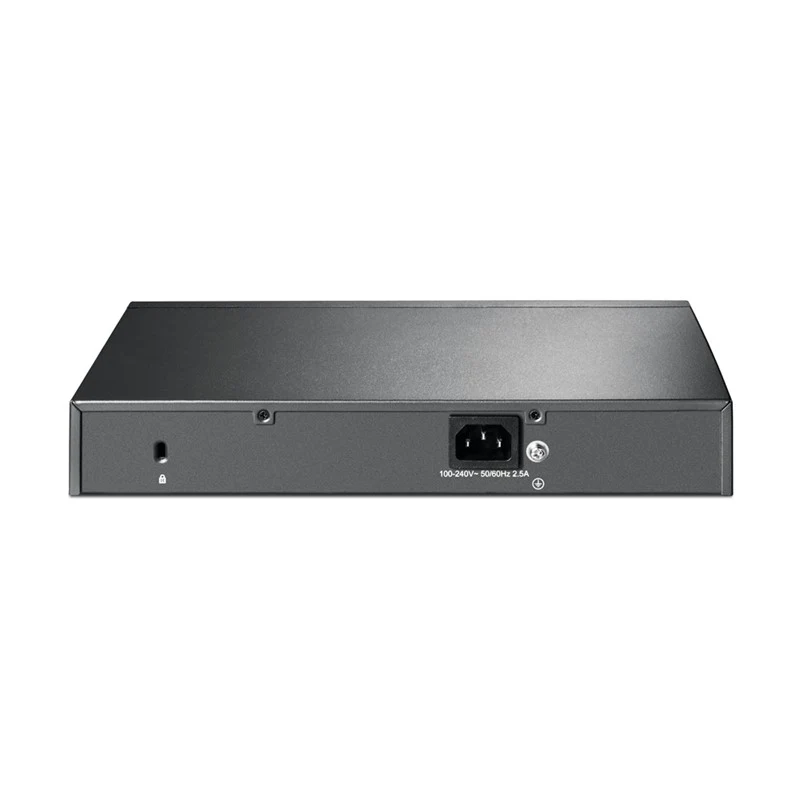

Power Supply

100-240V AC, 50/60Hz

PoE Ports (RJ45)

Standard: 802.3at/af compliant

PoE+ Ports: 8 Ports

PoE Power Budget: 150 W*

Dimensions ( W x D x H )

11.6 x 7.1 x 1.7" (294 x 180 x 44 mm)

Mounting

Rackmount/Desktop

Max Power Consumption

V1: 173.9 W (110 V/60 Hz) (with 150 W PD connected); 12.2 W (110 V/60 Hz) (no PD connected)

V2: 169.5 W (220 V/50Hz) (with 150 W PD connected)

V3: 175.3 W (110 V/60Hz) (with 150 W PD connected)

V4: 174.2 W (110V/60Hz) (with 150 W PD connected)

Max Heat Dissipation

V1: 41.63 BTU/h (with no PD connected); 539.35 BTU/h (with 150 W PD connected)

V2: 578.42 BTU/hr (220V/50 Hz) (with 150 W PDconnected)

V3: 597.8 BTU/hr (110 V/60 Hz) (with 150 W PD connected)

V4: 594.46 BTU/hr (110V/60Hz) (with 150 W PD connected)

PERFORMANCE

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.9 Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

SOFTWARE FEATURES

Quality of Service

802.1p CoS/DSCP priority

8 priority queues

Priority Schedule Mode

SP (Strict Priority)

WRR (Weighted Round Robin)

Queue Weight Config

Bandwidth Control

Port/Flow based Rating Limit

Smoother Performance

Storm Control

Multiple Control Modes(kbps/ratio)

Broadcast/Multicast/Unknown-Unicast Control
