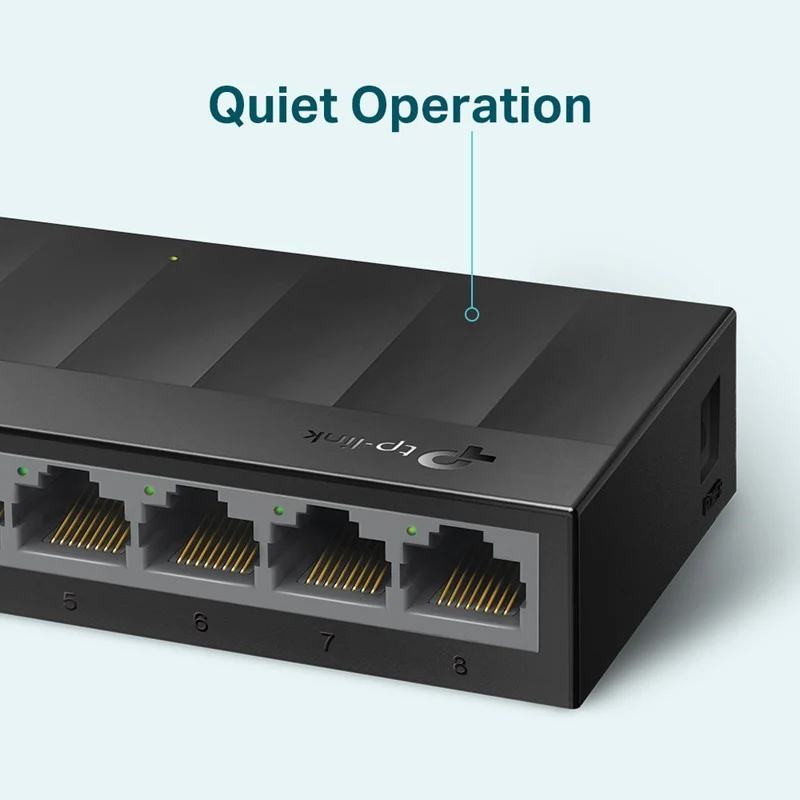

TP-Link LS1008G 8-Port Gigabit Desktop Switch

TP-Link LS1008G 8-Port Gigabit Desktop Switch

Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable.

With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

Gigabit Ports For Faster Speeds

Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference

Use Where You Need, However You Need

The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface

8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity

Fanless

External Power Supply

External Power Adapter
• V1, V3: 9VDC / 0.6A
• V2: 5VDC / 0.6A

Dimensions ( W x D x H )

5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm)

Max Power Consumption

3.9W

Max Heat Dissipation

13.299 BTU/h

Performance

Switching Capacity

16 Gbps

Packet Forwarding Rate

11.9 Mpps

MAC Address Table

4K

Packet Buffer Memory

1.5 Mb

Jumbo Frame

16 KB

Software Features

Advanced Features

Green Technology
802.3X Flow Control
Back Pressure

Transfer Method

Store and Forward

Others

Certification

CE, FCC, RoHS

Package Contents

8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
