TP-Link LS105G 5-Port 10/100/1000Mbps Desktop Network Switch

TP-Link LS105G 5-Port 10/100/1000Mbps Gigabyte Desktop Network Switch

Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable.

With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use

Go Green with Your Ethernet

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

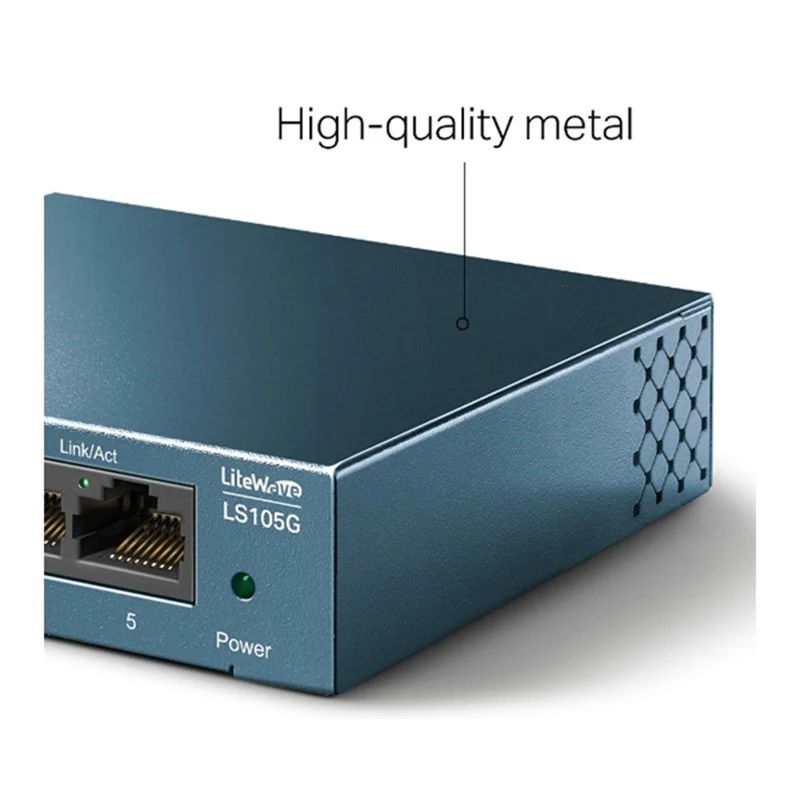

Durable Metal Casing

The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Use Where You Need, However You Need

The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Interface

5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 5VDC / 0.6A)

LED Indicator

System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )

3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Max Power Consumption

2.776W (220V/50Hz)

Max Heat Dissipation

9.466 BTU/h

Performance

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

2K

Packet Buffer Memory

1 Mb

Jumbo Frame

16 KB
