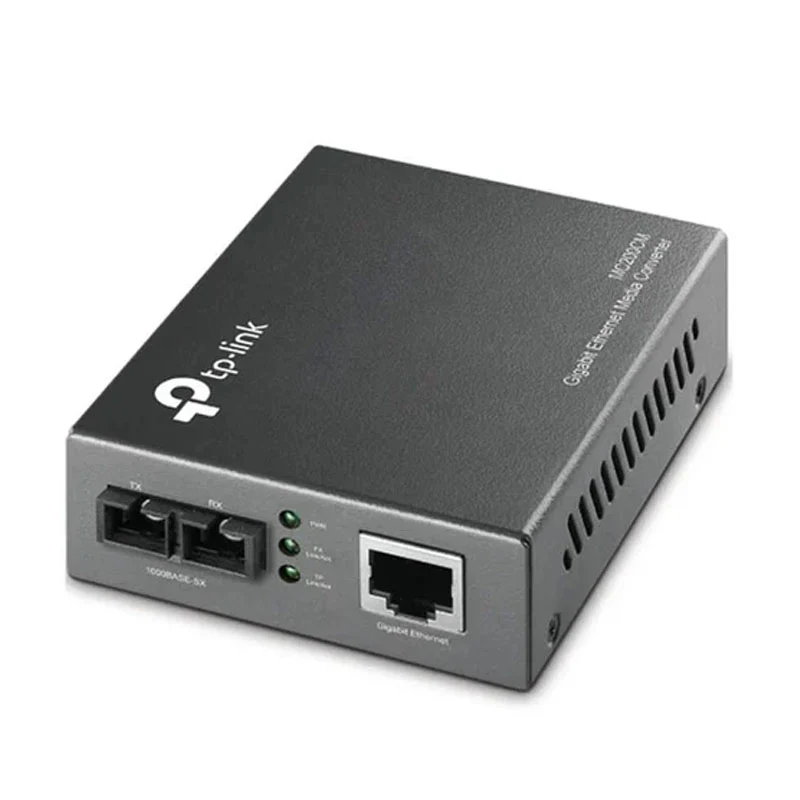

TP-Link MC200CM Gigabit Multi-Mode Media Converter
TP-Link MC200CM Gigabit Multi-Mode Media Converter
![]() |
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data |
Specifications
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
|
Basic Function |
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
|
|
Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber |
|
|
Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber |
|
Ports |
1 x 1000M dual SC/UPC port |
|
|
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
|
Wave Length |
850nm |
|
Network Media 1000BASE-SX |
Multi-mode Fiber |
|
Network Media 1000BASE-T |
UTP category 5, 5e cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
LED Indicators |
PWR, Link/Act |
|
Dimensions (W*D*H) |
3.7 × 2.9 × 1.1 in. |
|
|
(95 × 73 × 27 mm) |
|
Power Supply |
External Power Adapter |
|
Max Power Consumption |
1.66W |
|
Safety & Emission |
FCC, CE, RoHS |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
|
|
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 5%~90% non-condensing |
Original: $48.53
-65%$48.53
$16.99Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TP-Link MC200CM Gigabit Multi-Mode Media Converter
![]() |
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data |
Specifications
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
|
Basic Function |
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
|
|
Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber |
|
|
Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber |
|
Ports |
1 x 1000M dual SC/UPC port |
|
|
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
|
Wave Length |
850nm |
|
Network Media 1000BASE-SX |
Multi-mode Fiber |
|
Network Media 1000BASE-T |
UTP category 5, 5e cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
LED Indicators |
PWR, Link/Act |
|
Dimensions (W*D*H) |
3.7 × 2.9 × 1.1 in. |
|
|
(95 × 73 × 27 mm) |
|
Power Supply |
External Power Adapter |
|
Max Power Consumption |
1.66W |
|
Safety & Emission |
FCC, CE, RoHS |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
|
|
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 5%~90% non-condensing |
