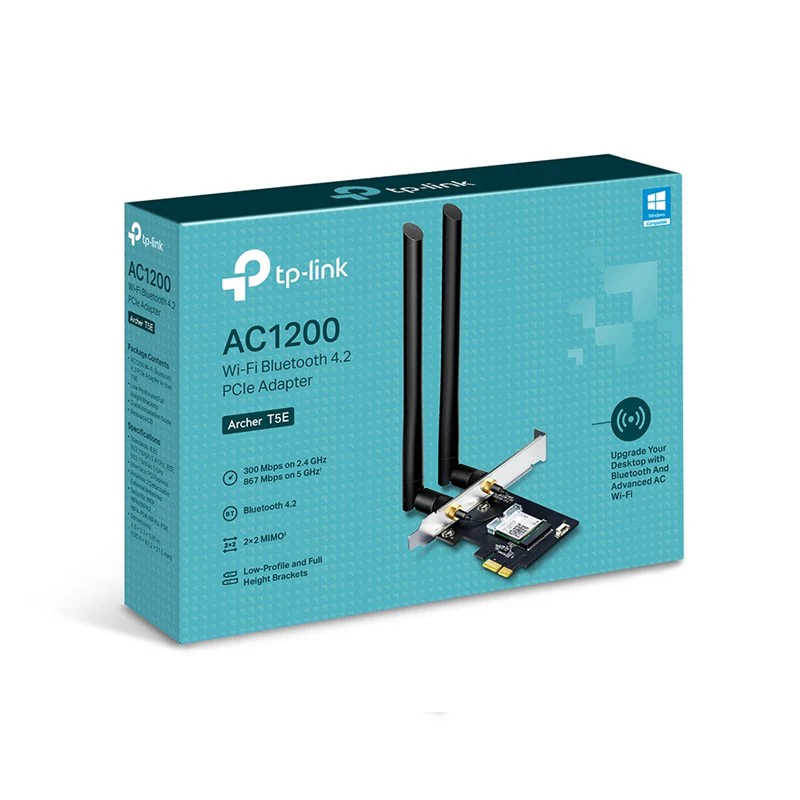

TP-Link T 5E AC1200 Wi-Fi Bluetooth 4.2 PCI Adapter

Broad Wireless Range

Connect to your WiFi from further away with two external high-gain antennas ensuring greater range and enhanced stability.

Easy Installation

Plug the adapter into an available PCI-E slot and install the drivers with the included CD.

Dual Band WiFi for Faster Connections

Archer T5E is an 802.11ac dual-band WiFi PCI Express adapter with speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), providing WiFi signals on two separate bands for all your online needs.

Choose the 2.4 GHz band for surfing, emailing, and social media, or switch to 5 GHz band for gaming, streaming, and large file downloads

Super-Fast Speed

Make full use of your network with AC1200 WiFi speeds (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)

Powerful Antennas for Broader Coverage

Two powerful signal-boosting high-gain antennas greatly extend your existing WiFi reception capabilities, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.

Interface

PCI Express

Dimensions

4.8 × 3.3 × 0.85 in (120.8 × 83.2 × 21.5 mm)

Antenna

2 Detachable External Antennas

Bluetooth Features

Standards and Protocols

Bluetooth 4.2, Bluetooth 4.0

Interface

USB 2.0

Wireless Features

Wireless Standards

IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz

Signal Rate

11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz:
11ac HT80: -59.0dBm
11n HT40: -68.5dBm
11a 54Mbps: -73.5dBm
11a 6Mbps: -91dBm
2.4 GHz:
11n HT40: -69.5dBm
11g 54Mbps: -74dBm
11b 11Mbps: -87dBm

Transmit Power

5 GHz: 21.5dBm(FCC)
2.4 GHz : 20.5dBm(FCC)

Wireless Modes

Infrastructure mode

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
