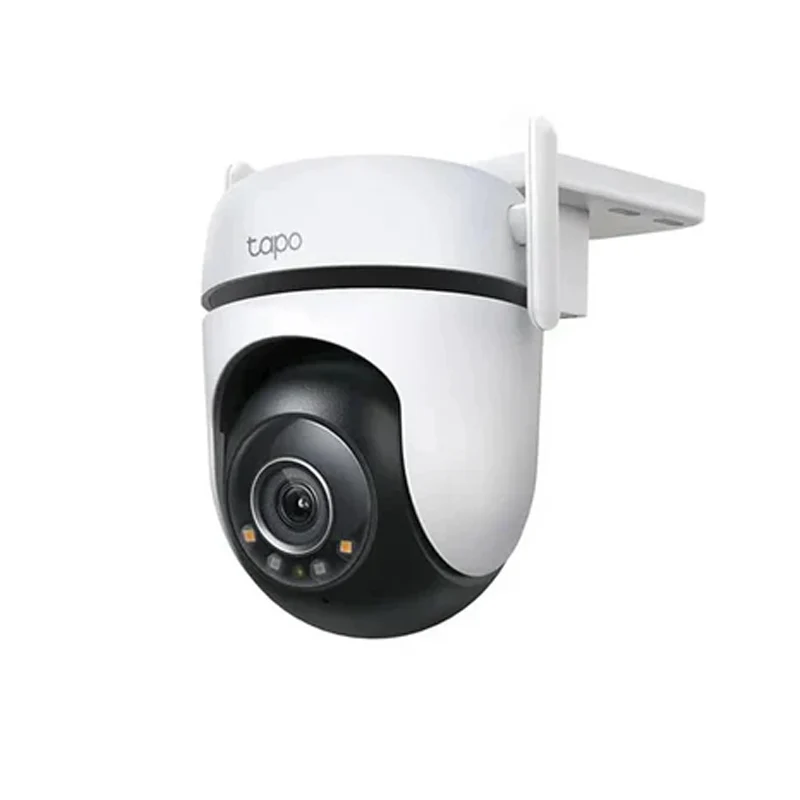

TP-Link Tapo 520WS Outdoor Pan/Tilt Security Wi-Fi Camera 2K, 512GB Micro SD Support

TP-Link Tapo 520WS Outdoor Pan/Tilt Security Wi-Fi Camera 2K, 512GB Micro SD Support

Brighter than Full-Color

TapoC520WS renders brighter images than other full-color night vision cameras with spotlights on due to its starlight sensor.

2K QHD Crystal Clear View

Now with 1.7 times more pixels than 1080p, providing clearer videos and more crisp photos.

Multiple AI Detection, All for Free!

Smart AI identifies people, pets, and vehicles, notifying users as needed. All are provided for free.

Customize Your Detection

Adjust the sensitivity of motion detection and set up activity zones/boundaries for your convenience. You can also turn on the patrol mode to keep the camera cruising between two customized points

Reliable Networking, Flexible Connection

Dual powerful external antennas provides larger wireless coverage(up to 492 ft in open areas*) and more stable connection. You can also connect you’re your camera to the network through the RJ45 Ethernet port.

360° Visual Coverage

Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots.

Free Person/Pet/Vehicle Detection

Smart AI identifies people, pets, and vehicles, notifying users as needed.

Customizable Sound and Light Alarm

Record your own audio as an alarm to extend your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away.

Image Sensor

1/3‘’ CMOS

Lens

F/NO: 1.61±10%; Focal Length: 3.18mm±5%

Motion Range

Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 60° (130° Tilt Coverage)

Night Vision

850 nm IR LED (up to 98 ft), Starlight Color Night Vision

Lighting

2× Built-in Spotlights

Interface & Button

1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)

Weatherproof Rating

IP66

View Range

360° horizontal and 130° vertical

Resolution

2K QHD 4MP (2560 × 1440 px)

Video & Audio

Maximum Resolution

2K QHD 4MP (2560 × 1440 px)

Frame Rate

15/20/25/30 fps (Default 15 fps)

Digital Zoom

12x

Video Compression

H.264

Live View

Yes

Image Enhancement

3D DNR
BLC

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

93 dB (Level measured at 4-inch/10-cm distance)

Video

Frame Rate

Up to 25/30fps

Video Streaming

2K QHD

Video Compression

H.264

Detection and Notifications

AI Detection

Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Tamper Detection

Activity Zones

Yes

Output Notification

System Notification
System Notification with Snapshot (Tapo Care Services)

Audio

Audio Communication

Two-Way

Audio Input & Output:

Built-in Microphone and Speaker

Network

Network Connectivity

Connect via Wi-Fi or Ethernet

Wireless Connectivity

IEEE 802.11b/g/n, 2.4 GHz Wi-Fi

Protocol

TCP/IP, ICMP, DNS, HTTPS, TCP, UDP

Ethernet Port

1× 10/100 Mbps RJ45 Port on Camera

Wireless Security

WPA/WPA2-PSK

RTSP

Yes

ONVIF

Yes

Standards and Protocols

IEEE 802.11b/g/n

Security

128 bit AES encryption with SSL/TLS

Frequency

2.4GHz

Security

Security

On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

Power

Power Source

9V DC Power Adapter

Input Voltage

100-240 V, 50/60 Hz

Output Voltage

9 V, 0.85 A (DC Power)

General

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP66

System Requirements

Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher

Mounting Options

Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)

Operating Temperature

-30℃~60℃

Storage Temperature

-40℃~60℃

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

0~90% RH, Non-condensing

Dimensions

4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)

Package Contents

Tapo C520WS Camera ×1
Power Adapter ×1
Mounting Anchors ×4
Mounting Screws ×4
Bracket Screws ×2
Mounting Template ×1
Mounting Bracket ×1
Waterproof Seal ×1
Waterproof Cable Attachments ×1
Quick Start Guide

Certifications

CE, FCC, RoHS, RCM

Activity Notifications

Input Trigger

Motion detection, Person detection, Pet detection, Vehicle detection, Line-Crossing detection

Output Notification

Snapshot(Tapo care), Clips(Tapo care)

Environment

Operating Temperature

-30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F)

Storage Temperature

-40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F)

Operating Humidity

10%~90%RH, Non-condensing

Storage Humidity

0~90%RH, Non-condensing

Hardware

Button

RESET Button

Indicator LED

System LED

Adapter Input

100-240V, 50/60Hz

Adapter Output

9V, 0.85A (DC Power)

Product Dimensions (W x D x H)

4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)
