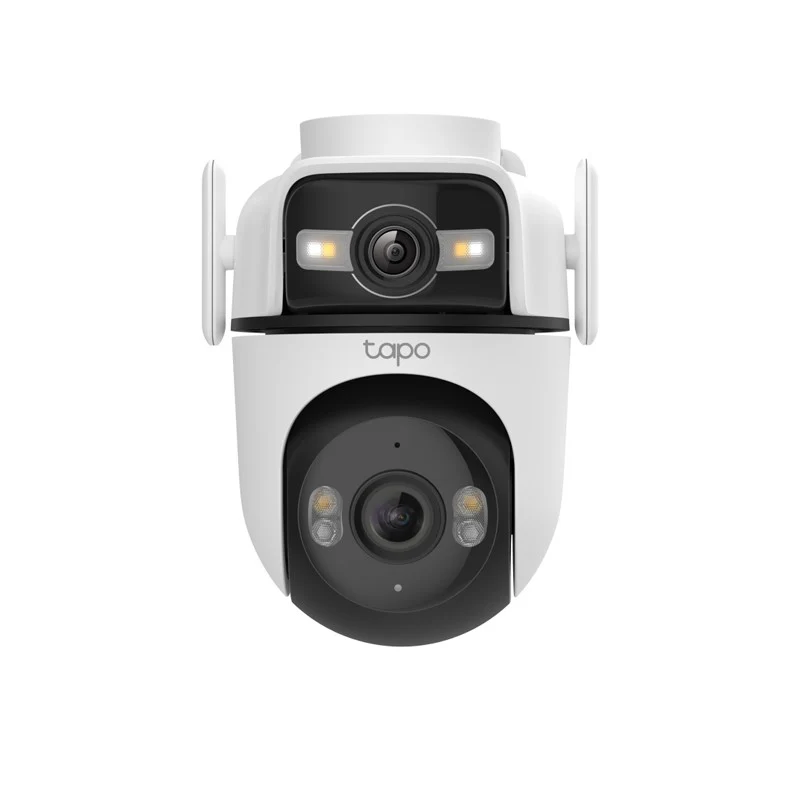

TP-Link Tapo Outdoor Dual Lens Pan/Tilt Security Camera 3 MP

TP-Link Security Camera

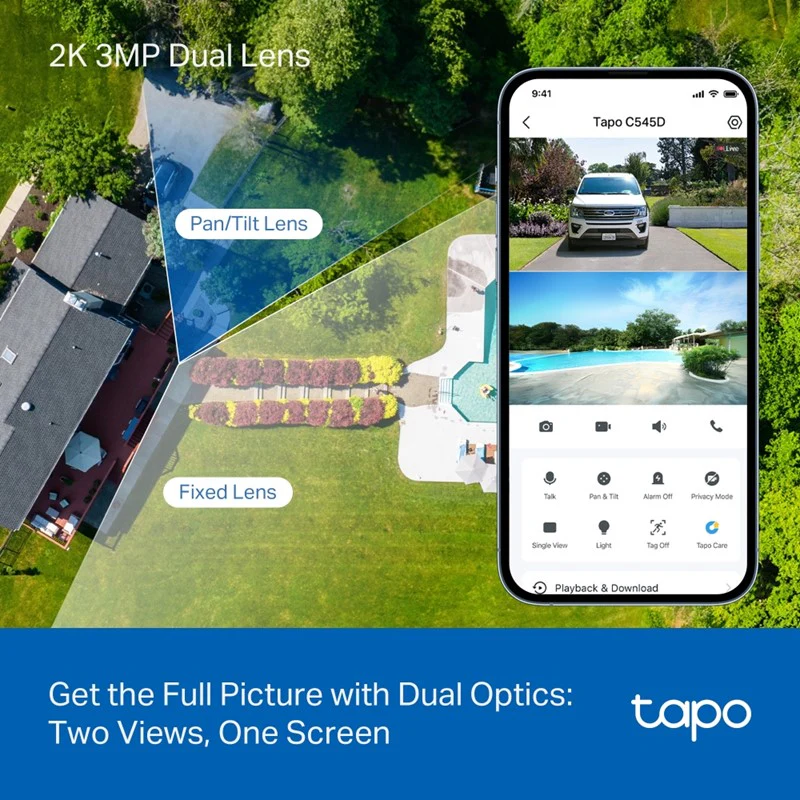

2K 3 MP Dual Lens

Capture the full picture with dual 2K high definition optics, monitoring two separate areas at the same time with just one device. Engineered to minimize blind spots for optimal coverage.

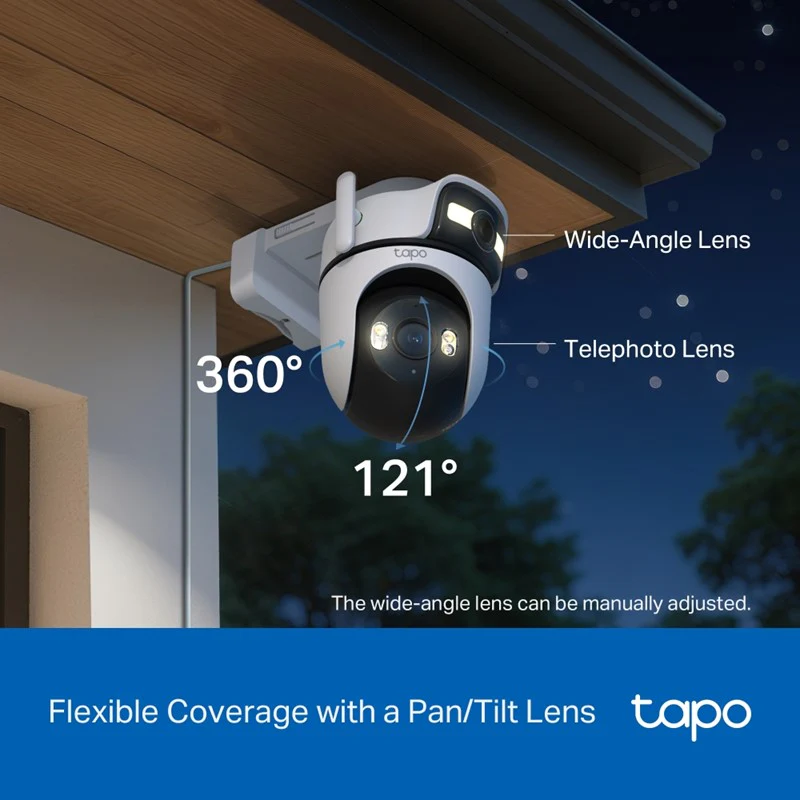

Wide-Angle & Telephoto Lens

With 165° FOV wide-angle lens and 6mm telephoto lens, it ensures all-around awareness and down-to-the-detail protection of your home.

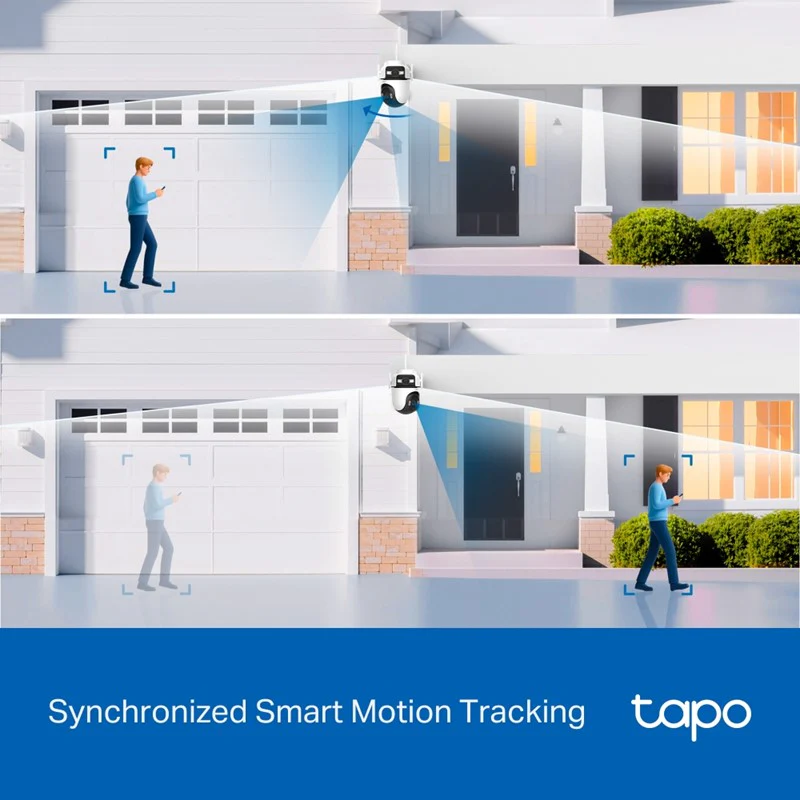

Synchronized Smart Tracking

When the fixed lens detects events, the pan/tilt lens will automatically pivot to focus on and track the moving object.

One-Tap Smart Focus

Select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.

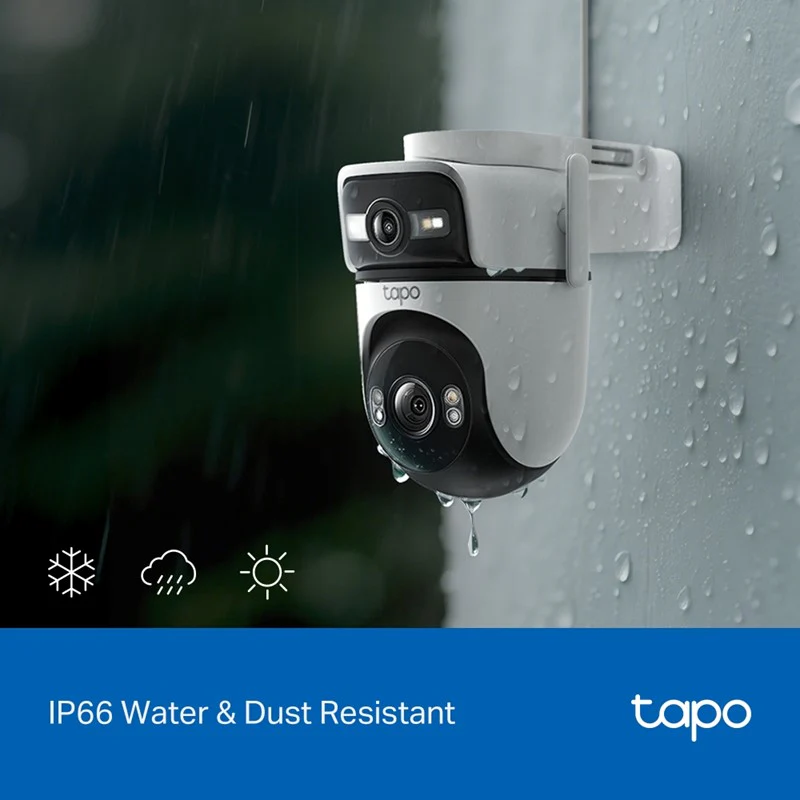

IP66 Weather Resistance

Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.

Ethernet Support

Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission.

Free AI Detection & Notification

Get instant push notifications when motion, person, pets and vehicles are detected, there is no additional fee to use it.

Works with Alexa, Google Home & Samsung SmartThings

Fully compatible with Amazon Alexa, Google Assistant and Samsung SmartThings.

Smart Night Vision

Choose from vibrant full-color with spotlights, discreet Black-and-White infrared, or an automatic Smart Mode based on Al light detection for optimal clarity in any nighttime scenario.

Secure Local or Cloud Storage

Save footage continuously on up to a 512 GB microSD card (not included) or subscribe to Tapo Care for cloud storage which saves 30-day video.

2-Way Audio

Engage in seamless, real-time conversations with our two-way audio feature, designed for minimal latency and exceptional sound clarity.

What are the benefits of TP-Link Security Camera ?

2K 3 MP Dual Lens -  Capture the full picture with dual 2K high definition optics, monitoring two separate areas at the same time with just one device.

Synchronized Smart Tracking - When the fixed lens detects events, the pan/tilt lens will automatically pivot to focus on and track the moving object.

One-Tap Smart Focus - Select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.

Ethernet Support - Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming.

Free AI Detection & Notification - Get instant push notifications when motion, person, pets and vehicles are detected.

2-Way Audio - Engage in seamless, real-time conversations with our two-way audio feature.

CAMERA

Image Sensor

1/2.8“ Progressive Scan CMOS Sensor

Lens

Focal Length: 6mm ± 5%, 2.53mm ± 5%

Aperture: F1.6 ± 10%, F1.6 ± 10%

Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.7° (Vertical);

165.1° (Diagonal), 137.6° (Horizontal), 73.0° (Vertical)

Night Vision

850 nm IR LED (99 ft / 29.9 M), Color Night Vision

Day/Night Switch

IR-Cut Filter with Auto-Switching

Interface & Button

1× RJ45 (10M/100M) Ethernet Port

1× RESET Button

1× microSD Card Slot (Up to 512 GB)

VIDEO & AUDIO

Maximum Resolution

2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px)

Frame Rate

15 fps

Video Compression

H.264

Live View

Yes

Image Enhancement

3DNR

WDR

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

99 dB (Level measured at 4"/10 cm distance)

STORAGE

Local Storage

microSD Card Slot on Camera (Up to 512 GB)

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

AI Detection

Motion Detection

Person Detection

Pet Detection

Vehicle Detection

Line-Crossing Detection

Camera Tampering

Activity Zones

Yes

Only works with Motion/Person/Pet/Vehicle Detection.

Output Notification

System Notification

System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity

Connect via Wi-Fi or Ethernet

Wireless Connectivity

IEEE 802.11 b/g/n/ax, 2.4 GHz

Protocol

TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP

Ethernet Port

Yes

RTSP

Yes

ONVIF

Yes

Transmission Rate

11b: 11 Mbps

11g: 54 Mbps

11n: 72.2 Mbps

11ax: 143.4 Mbps

SECURITY

Security

On-Device Machine Learning

128-bit AES Encryption with SSL/TLS

WPA/WPA2-PSK/WPA3

POWER

Power Source

12 V DC Power Adapter

Input Voltage

100-240 V, 50/60 Hz

Output Voltage

12 V, 1 A (DC Power)

DC Power Connector Size

Inside Ø: 2.1mm

Outside Ø: 5.5mm

Power Cord Length

3 M

Typical Power Consumption

5.3 W

Maximum Power Consumption

11.2 W

GENERAL

Smart Integration

Google Assistant, Amazon Alexa, Samsung SmartThings

Weather Resistance

IP66

Mounting Options

Wall-Mounted

Eave-Mounted

Pole-Mounted

Operating Temperature

-30 ºC ~ 60 ºC (-22 °F ~ 140 °F )

Storage Temperature

-40 ºC ~ 60 ºC (-40 °F ~ 140 °F)

Operating Humidity

10% ~ 90% RH, Non-condensing

Storage Humidity

0 ~ 90% RH, Non-condensing

Weight

17.32 oz / 491 g

Package Content

Tapo C545D Camera ×1

Mounting Bracket ×1

Mounting Template Sticker ×1

Mounting Screws ×4

Mounting Anchors ×4

Waterproof Seal ×1

Waterproof Cable Attachments ×1

Power Adapter ×1

Quick Start Guide
