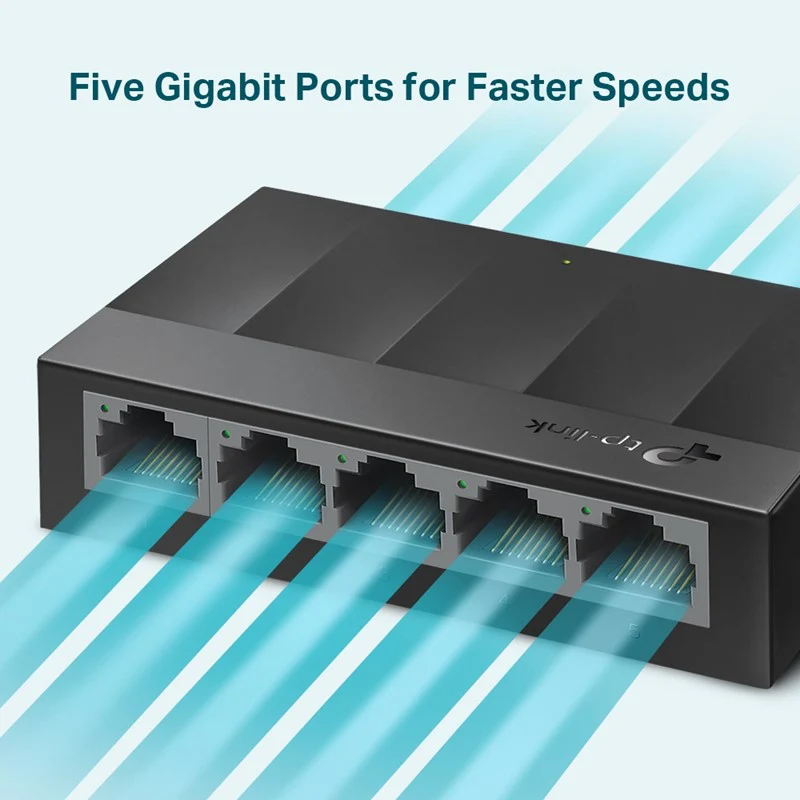

TP-Link TL-LS1005G 5-Port Gigabit Desktop Switch

TP-Link TL-LS1005G 5-Port Gigabit Desktop Switch

5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

Green Ethernet technology saves power

IEEE 802.3X flow control provides reliable data transfer

Plastic casing, desktop or wall-mounting design

Plug and play, no configuration needed

Fanless design ensures quiet operation

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface

5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 5VDC/0.6A)

Dimensions ( W x D x H )

3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)

Max Power Consumption

3.7W

Max Heat Dissipation

12.617 BTU/h

Performance

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

2K

Packet Buffer Memory

1.5 Mb

Jumbo Frame

16 KB

Software Features

Advanced Features

Green Technology
802.3X Flow Control
Back Pressure

Transfer Method

Store and Forward

Others

Certification

CE, FCC, RoHS

Package Contents

5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
