TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+
| TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ |
|
|
|
|
Power over Ethernet Port 1-8 of the switch support Power over Ethernet (PoE) function These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices PDs |
|
|
Intelligent Power Management When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation |
|
|
Sturdy Metal Casing Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation |
Specifications:
|

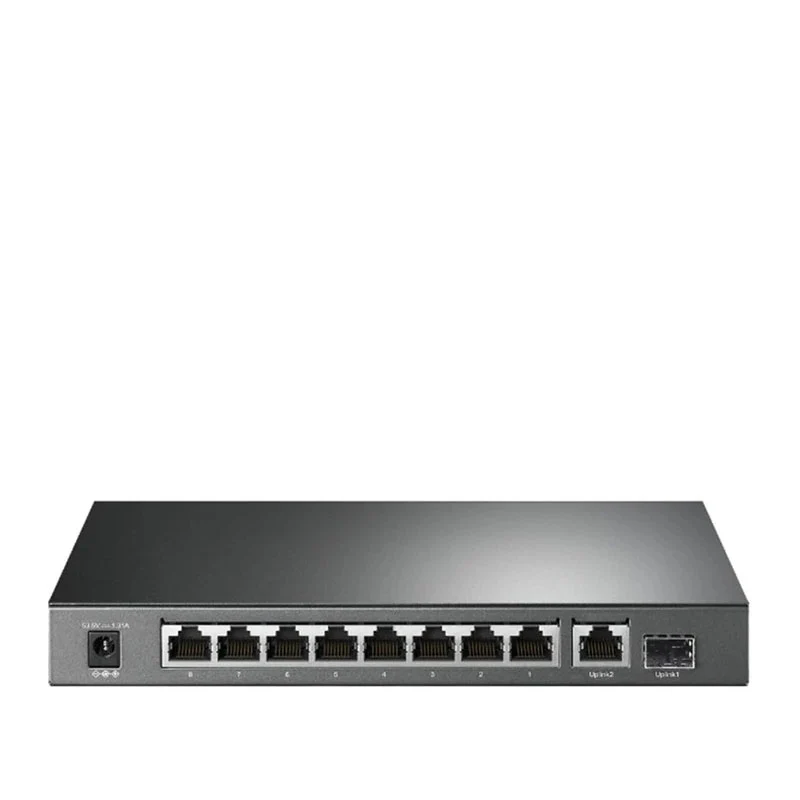

Interface |
8 PoE+ 10/100/1000Mbps RJ45 Ports |
|
|
1 10/100/1000Mbps RJ45 Port |
|
|
1 Gigabit SFP Slot |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
1000BASE-X MMF, SMF |
|
Fan Quantity |
Fanless |
|
Physical Security Lock |
Yes |
|
Power Supply |
External Power Adapter(Output: 53.5VDC / 1.31A) |
|
Packet Forwarding Rate |
14.88 Mpps |
|
PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant |
|
|
PoE Ports: Port1- Port 8 |
|
|
PoE Power Budget: 63W |
|
Mac Address Table |
4K |
|
Jumbo Frame |
16 KB |
|
Switching Capacity |
20 Gbps |
|
Dimensions ( W x D x H ) |
209 Ă— 126 Ă— 26 mm |
|
Max Power Consumption |
7.11 W (220/50Hz. no PD connected) |
|
|
78.13 W (220/50Hz. with 63W PD connected) |
|
Max Heat Dissipation |
24.25 BTU/h (no PD connected) |
|
|
266.42 BTU/h (with 63W PD connected) |
|
SOFTWARE FEATURES |
|
|
Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs |
|
|
EEE802.3x Flow Control |
|
|
802.1p/DSCP QoS |
|
|
IGMP Snooping |
|
Transmission Method |
Store-And-Forward |
|
OTHERS |
|
|
Certification |
CE, FCC, RoHS |
|
Package Contents |
TL-SG1210P, Power Adapter, Installation Guide |
|
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) |
|
|
Storage Temperature: -40°C~70°C (-40°F~158°F) |
|
|
Operating Humidity: 10% ~ 90% non-condensing |
|
|
Storage Humidity: 5%~90% non-condensing |
