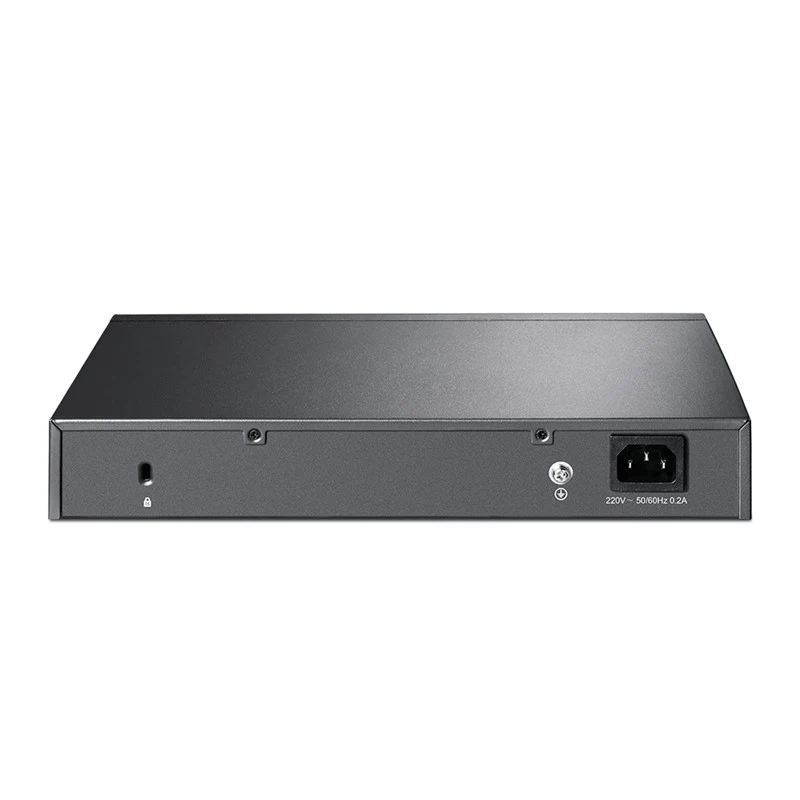

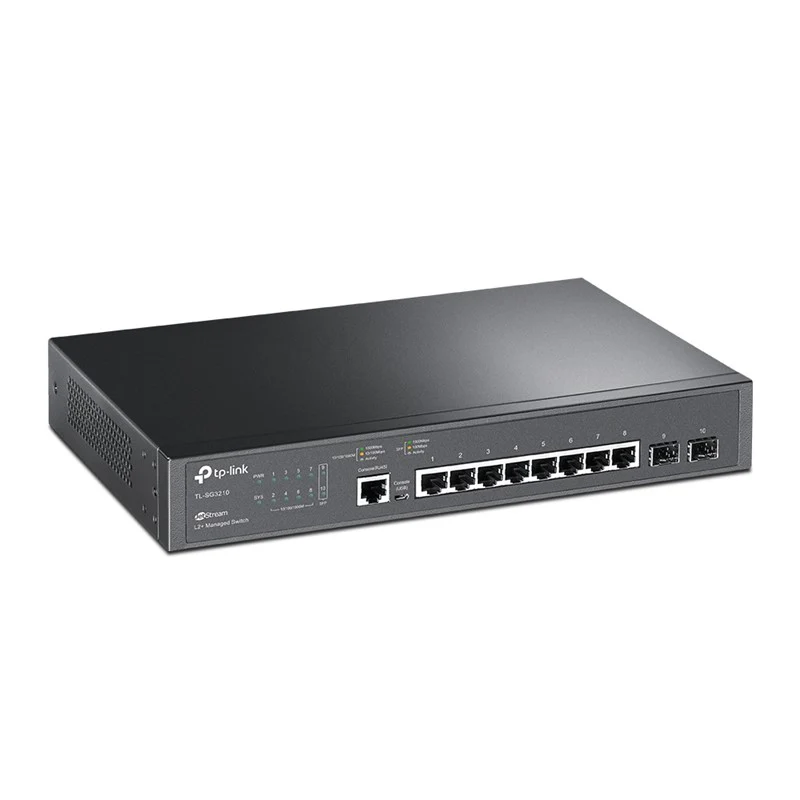

TP-Link TL-SG3210 JetStream 8-Port Gigabit L2 + Managed Switch With 2 SFP Slots

TP-Link TL-SG3210 JetStream 8-Port Gigabit L2 + Managed Switch With 2 SFP Slots

Full Gigabit Ports

8× gigabit RJ45 ports and 2× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN

Zero-Touch Provisioning (ZTP)^*, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management

Cloud access and Omada app for ultra convenience and easy management.

Static Routing

Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies:

IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications

L2/L3/L4 QoS and IGMP snooping.

Standalone Management

Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Interface

• 8× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port

Fan Quantity

Fanless

Power Supply

100-240 V AC~50/60 Hz

Dimensions ( W x D x H )

11.6×7.1×1.7 in.
(294×180×44 mm)

Mounting

Rack Mountable / Desktop

Max Power Consumption

6.8 W

Max Heat Dissipation

23.3 BTU/h

PERFORMANCE

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.89 Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB
